Robustness of Terminations Tester /testing Machine/testing Apparatus for Solar Panels

Robustness of Terminations Tester /testing machine/testing apparatus for solar panels

standards

It's according to IEC61215-2:2016 standard

Purpose

Tod determine that the terminations, the attachment of the terminations, and the attachment of the cables ot the body of the module will withstand stresses that are likely to be applied during normal assembly or handling operations

specification

1.Ual Tensile test (Note: Ua2 for pressure test, does not apply to junction box)

2.poise weight or traction force with tolerance 40N

3.Test subject :type A,B,C terminations

Ub Bending Test :20 N

1.The end of test sample hanging poise 20N

2.Can be fixed module , vertical plane rotation

3.The termination shall assume, during the course of the test, a displacement of at least 30 degree with respect to its initial position . over a period of 2~3s, through an angle of approximately 90 degree in the vertical plane and then returned to its original position over the same period of time, this operation constitutes one bend

4.This operation constitutes one bend, automatic finish 10 cycles

5.Two bends in the same direction without interruption, or a larger number of alternate bends where prescribed in the relevant specification . no device capable of imposing a radius of curvature shall be placed between the body of the component and the point of application of the force , strip terminations shall be bent perpendicularly to the widest surface of the strip

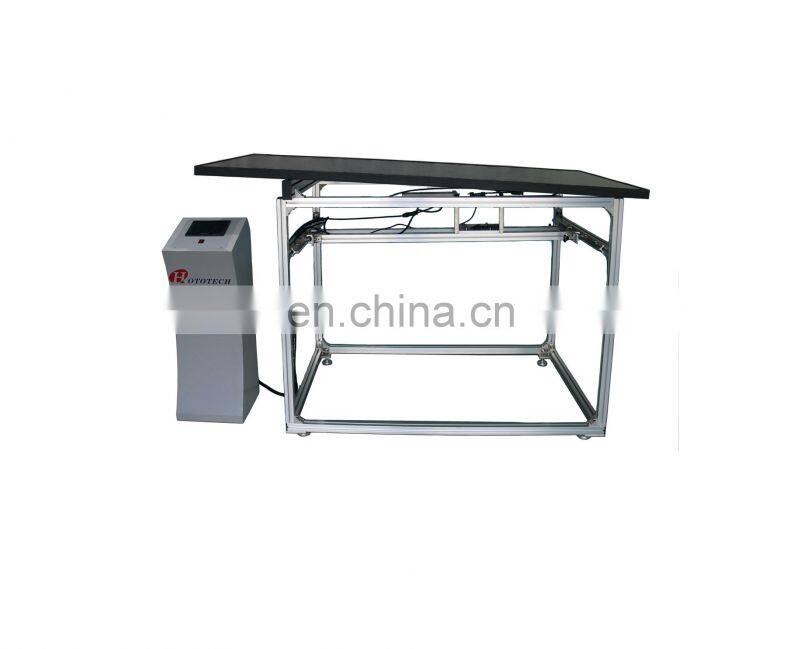

tester image

  Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines

  We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit

  Please feel free to contact us for any enquires from our wide range of products

1.High quality and best after-sell service

2.100%  quality inspection before delivery

3.Managment Innovate

4.Strong R & D team

5.Can handle customers's feedback  problems and doubt timely

6.Our testing machine have one year Warranty time
