Product Description
Product Description
HTPV-02
Name:Anti - scratch testing machine for assembly back plate
Standard:According to IEC61730-2 , UL1703 standard requirement
Purpose:
to determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock
Technical specifications:
| operate table | Aluminum alloy material |
| size | approx 1.4m×0.65m |
| Operate table include | tracking pulley wheel, tracking head slide and moving convenience |
| test fixture | |

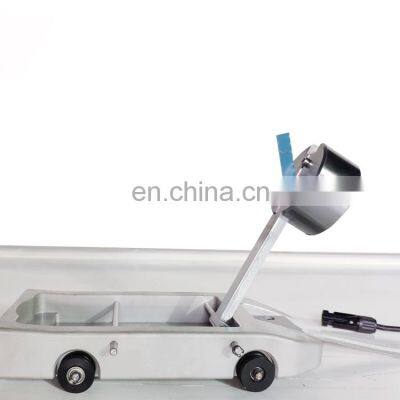

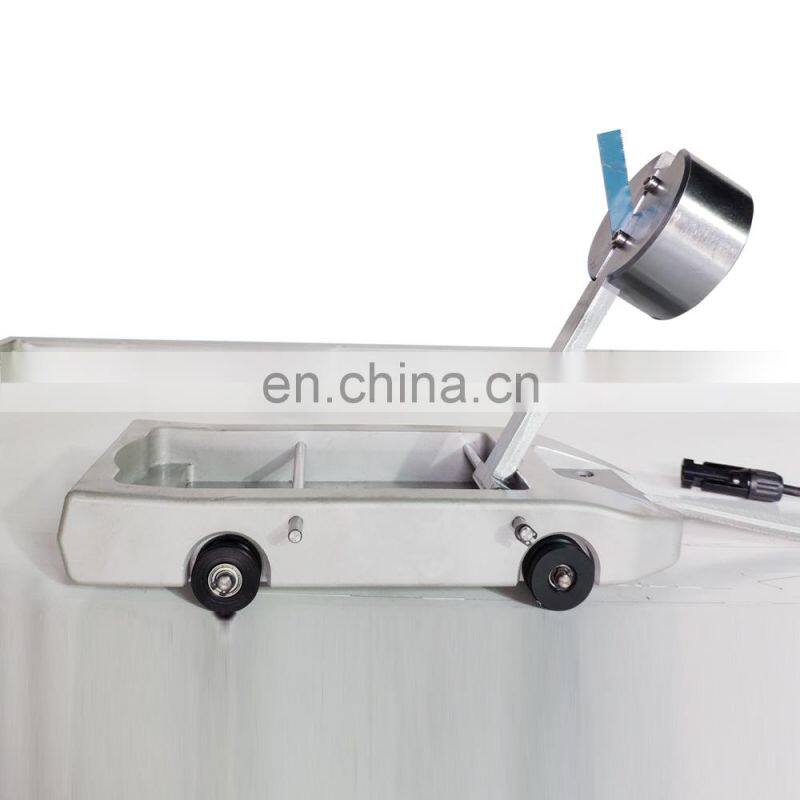

| Adopt carbon steel blade | |
| thick requirement | 0.64mm±0.05mm |
| blade radius requirement | 0.115±0.025mm |
| Distance and angle | can adjust |
| saw bar | weights box |
| standard | IEC61730-2 |
| the point suffer gravity | 8.9N±0.5N |
| test fixture speed | 150±30mm/s |
