Professional RK-1500 Glass Plate CCD inspection Image processing and Sorting Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
- Automated Optical Inspection Machine (AOI) with Sorting function for industry quality control
- Professional RK-1500 Optical Inspection Machine
- Automated RK-1500 Optical Inspection Machine with Glass Plate
- Professional RK-1500 Glass Plate vison machine for optical inspection with glass plate and CCD camera
- RK1500 Glass Plate CCD automated optical Inspection Machine Customization with all checing options
- CCD Image Automated optical inspection and sorting Machine with Glass Plate
Product Description
Dongguan RKE Professional Image Automated Visual Screening Equipment
Types: RK-1500 Glass Plate Optical Sorting Machine
Suited for: Nuts, Rivets, Washers, Bushing, Elastic Rings, Sleeves, Inserts, Valve Retainer, Chain Plate, Shearing PartsInspection Screen

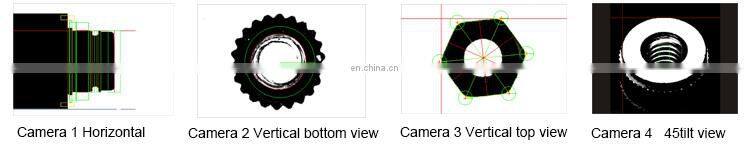

The machine equipment is outfitted with four industrial cameras.
Camera 1 is Horizontal camera, inspecting the multi-height and outer diameter.
Camera 2 is Vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is Vertical top view camera, inspect the opposite diagonal and angle of the product.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Camera 1 is Horizontal camera, inspecting the multi-height and outer diameter.
Camera 2 is Vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is Vertical top view camera, inspect the opposite diagonal and angle of the product.
It is also used to detect chamfer.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
