Automated Glass Plate With U-Type Groove RK-1520 Optical Visual Inspection Machine Nuts AOI Image Screening Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RK-1520 Glass Plate With U-Type Groove Optical Inspection Machine AOI Sorting Machine for Nuts FastenersNegotiableMOQ: 1 -
Glass Plate With U-Type Groove RK-1520 Optical Visual Inspection Machine for Rubber Hardware Nuts Defect InspectionNegotiableMOQ: 1
-
RK-1520 AOI Glass Plate With U-Type Groove Sorting Machine Optical Visual Screening Equipment for Micro PartsNegotiableMOQ: 1
-
RK-1520 Glass Plate With U-Type Groove Optical Vision Inspection Machine AOI Image Hardware Sorting EquipmentNegotiableMOQ: 1
-
RK-1520 CCD Glass Plate With U-Type Groove Optical Image Defect Sorting Machine for Fastener Nut Rubber Appearance InspectionNegotiableMOQ: 1
U-Type Groove Optical Visual Inspection Machine
Types: RK-1520 U-Type Groove Optical Sorting Machine

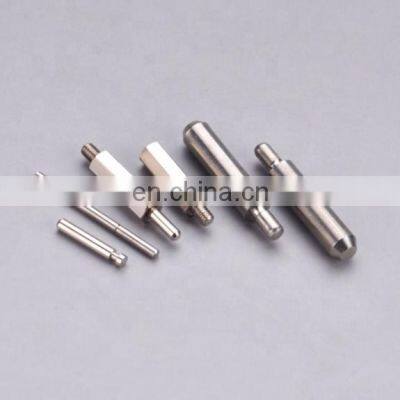

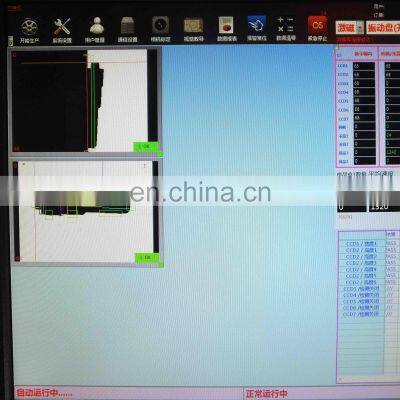

Suited for: Pins, Shafts, Rollers and Special ComponentsInspection Screen
1. The machine is equipped with a vertical top view industrial camera for inspecting the multi-segment height, outer diameter, and total length of the product.
2. It can be outfitted with additional industrial cameras for the inspection of leaks and other factors.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
U Type Groove Optical Sorting Machine patent Number No. ZL2013202116018.

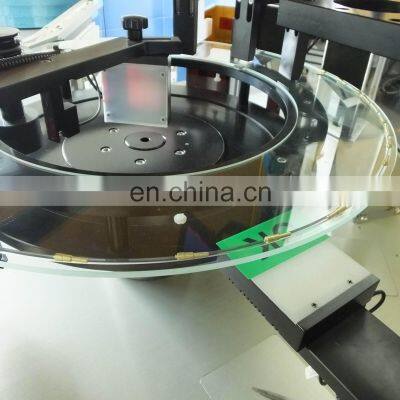

1. The machine is suitable for the inspection of products that cannot stand on the glass plate.
2. Both products that can and cannot stand can be inspected by this machine.3. Detection speed:100~500 PCS /min Depend on individual case.
4. Easy to operate and maintain.

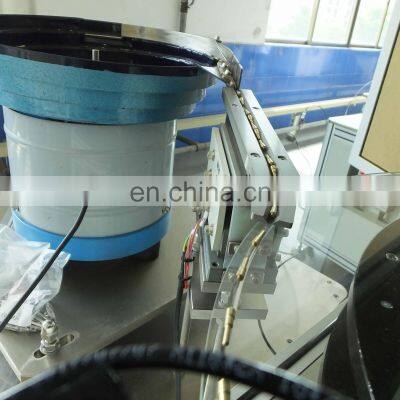

5. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
5. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height, Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed, Broken | Broken pin, Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs, Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians' practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
