RK-1500 Customized CMOS Optical Inspection Machine Glass Plate Size And Appearance Defects Visual Sorting Equipment
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
RK-1500 CuCustomized Glass Plate Screw Optical Inspection Equipment Vibratory Bowl+Feeding Track Visual Sorting Machine
-
AOI Automatic Optical Inspection Machine for Precision Screws, Nails, Washers, Bolts and Nuts
-
Automatic Optical Inspection And Sorting Machine For Fasteners Quality Checking
-
Automated Glass Plate With U-Type Groove RK-1520 Optical Visual Inspection Machine Nuts AOI Image Screening Equipment
-
RK-1520 Glass Plate With U-Type Groove Optical Inspection Machine AOI Sorting Machine for Nuts Fasteners
-
Glass Plate With U-Type Groove RK-1520 Optical Visual Inspection Machine for Rubber Hardware Nuts Defect Inspection
Product Description
Hot Sales Auto Fastener Optical Sorting Machine
Types: RK-1500 Glass plate optical sorting machine

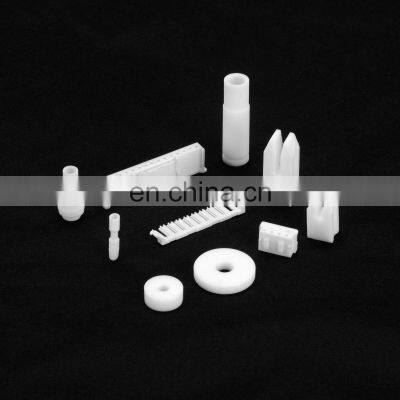

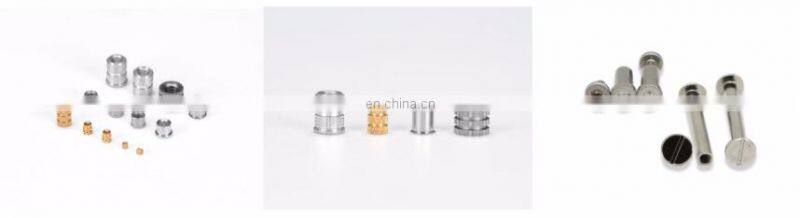

Suited for: Nuts, rivets, washers, bushing, elastic rings, sleeves, inserts, valve retainer, chain plate, shearing partsInspection Screen

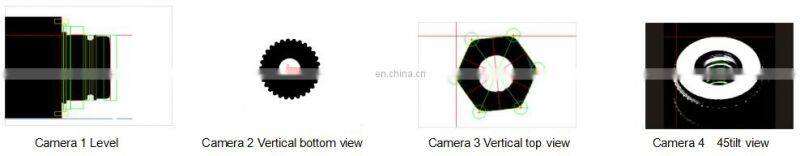

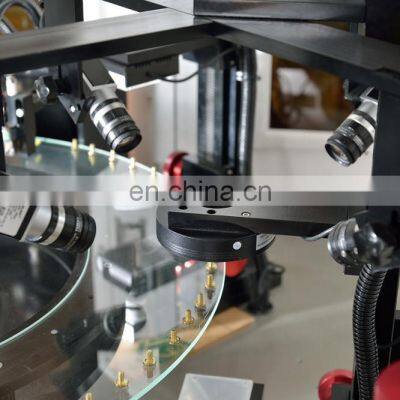

The machine equipment is outfitted with four industrial cameras.
Camera1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera2 is a vertical bottom view camera used for inspecting the aperture and the burr of the product.
Camera3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used todetect for chamfering.
Camera4 is a 45° tilt camera used to determine if the product has internal threads.
Camera1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera2 is a vertical bottom view camera used for inspecting the aperture and the burr of the product.
Camera3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used todetect for chamfering.
Camera4 is a 45° tilt camera used to determine if the product has internal threads.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1.Highly-transparent glass plate.
2.Fit for grease-free parts which can be placed on the glass plate securely. 3.Wide detection range of fasteners,mobile phone parts,rubber products,electronic components ,special-shaped hardware,screw etc
4.Detection camera:can add 2-6 cameras according to the inspect items.
5.Detection speed:300~1000 PCS /Min Depend on individual case.
6.Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter,Hole diameter | Roundness |
Length | With coating |
Width | With mark |
Height,Thickness | With cut/tapering |
Surface defect | Parallel edge length |
Deformed,Broken | Broken pin,Recess depth |
Different shape | With thread |
Crack | Fine or coarse thread |
Burrs,Chips | Tooth numbers |
Across Corners | Pitch |
Across Flat | Slanted thread |
Chamfer angle | Minor diameter |
Included angle | Major diameter |
Arc radius | Hardness |
Concentricity | Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Delivery: by sea, about 30-60 working days after order confirmation.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Packed in plywood cases (No Fumigation required) or packed according to custom packaging.
Service Advantage:
1, Warranty: 12 months FREE overseas serice.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
2, Enjoy lifelong maintenance.
3, Professional service team, to provide 24 hours, 365 days of technical support services.
4.Offer remote online service ,if there is no solution within 2 hours,door to door service will be offered after both parties
negotiation.
5.Convenient service ,response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
If you could provide related samples and test items, a project plan will be send to you after practical test by us. Then discuss the equipment specification and procurement plan. We promise that most suitable machine with costing the least money.
