50j Display Simple Supported Beam Charpy Digital for Plastic 5.5j Izod Pendulum Impact Tester
- T/T Credit Card
You May Like
-
V Notch Test Broaching Cheap & Impact Machine Charpy Izod Strength Testing Instrument
-
300J Semi-Automatic Charpy Impact Pipe Testing Machine Charpy Impact Test for Pipes
-
150j/250j/300j/500j/750j Pendulum 300j Charpy Impact Digital for Plastic Izod Tester
-
150j/250j/300j/500j/750j Plastic Impact Charpy Izod Strength Testing Instrument
-
For Plastic Nonmetal Materials Tester Izod Impact Strength Test Equipment
-
& Testing Machine Price Digital for Plastic Izod Charpy Impact Tester 150 to 300j
Product Description

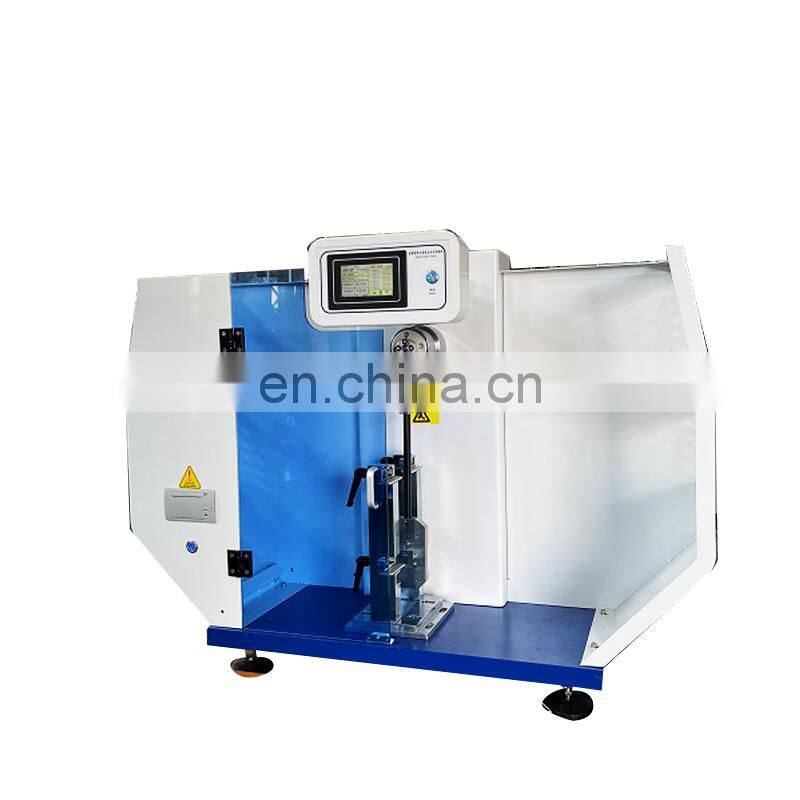

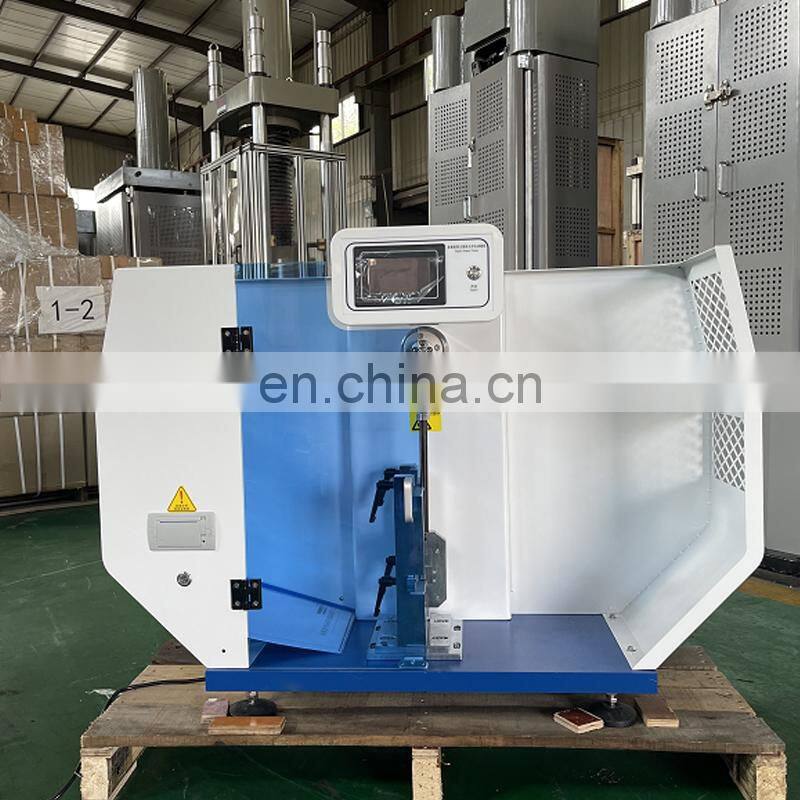

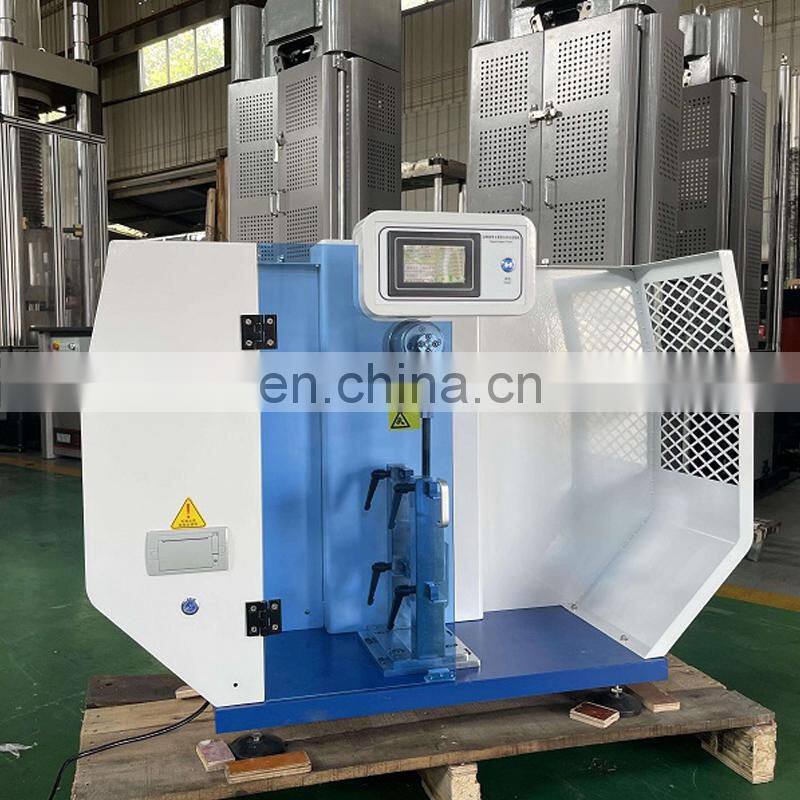

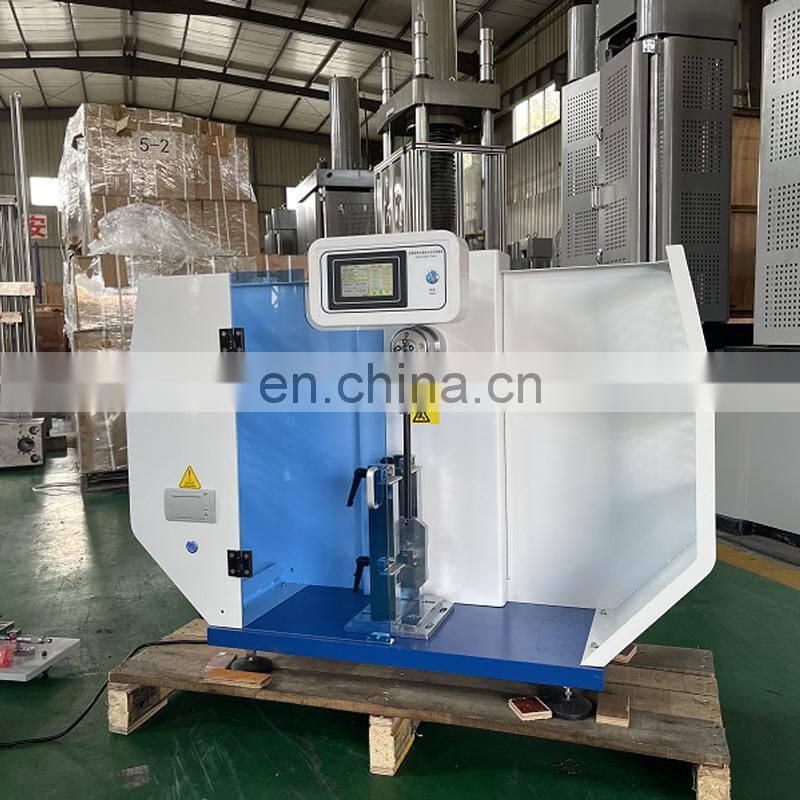

50j display simple supported beam charpy digital for plastic 5.5j izod pendulum impact tester
XJXD-5 series impact testing machine is mainly used for the determination of the impact toughness of non-metallic materials such as hard plastics (including plates, pipes, and plastic profiles), reinforced nylon, glass fiber reinforced plastic, ceramics, cast stone, and electrical insulating materials. This testing machine is an ideal testing equipment for the chemical industry, scientific research institutions, quality inspection departments of colleges and universities, etc.
act TestiTouch Screen Plastic Charpy & Izod 5.5j izod pendulum impact tester
| |||
Charpy | Izod | ||
Pendulum Energy | 2J,4J,5J | Pendulum Energy | 2.75J,5.5J |
Impact Speed | 2.9m/s | Impact Speed | 3.5m/s |
Rising Angle Of Pendulum | 150° | Rising Angle Of Pendulum | 150° |
Pendulum Center To Sample Center Distance | 230mm | Pendulum Center To Sample Center Distance | 335mm |
Impact Cutting Edge Radius | (2±0.5)mm | Impact Cutting Edge Radius | R=0.8mm±0.2mm |
Power supply | 100VA 220VAC 50HZ | ||
Dimensions | 420mm*250mm*650mm | ||
Required space | 0.4m front and rear, 1.5m left and right, 1.5m upper part | ||
-------------
