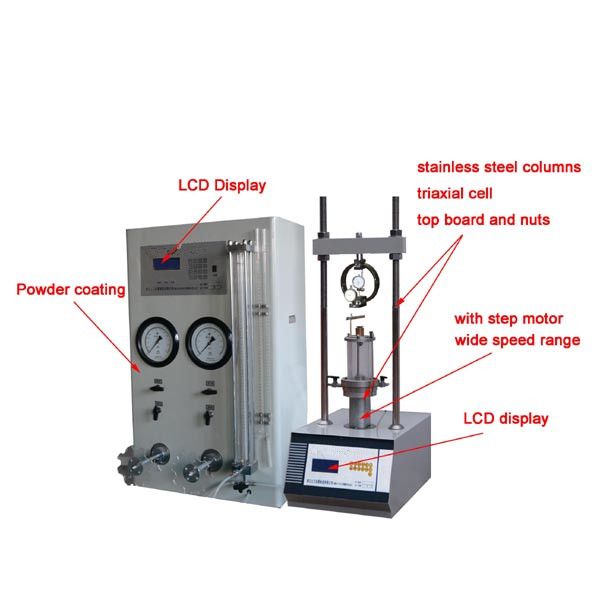

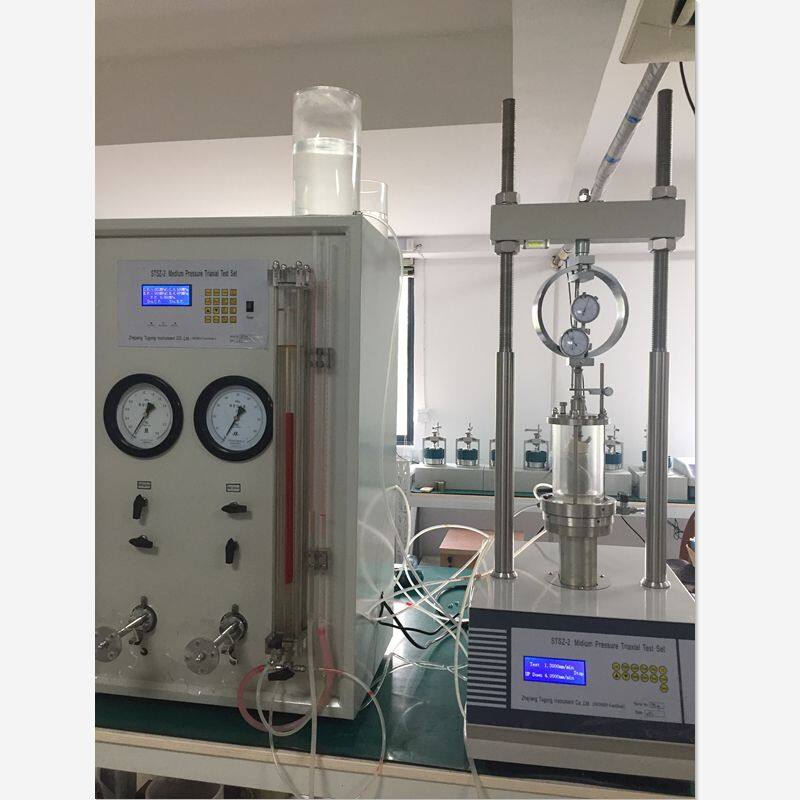

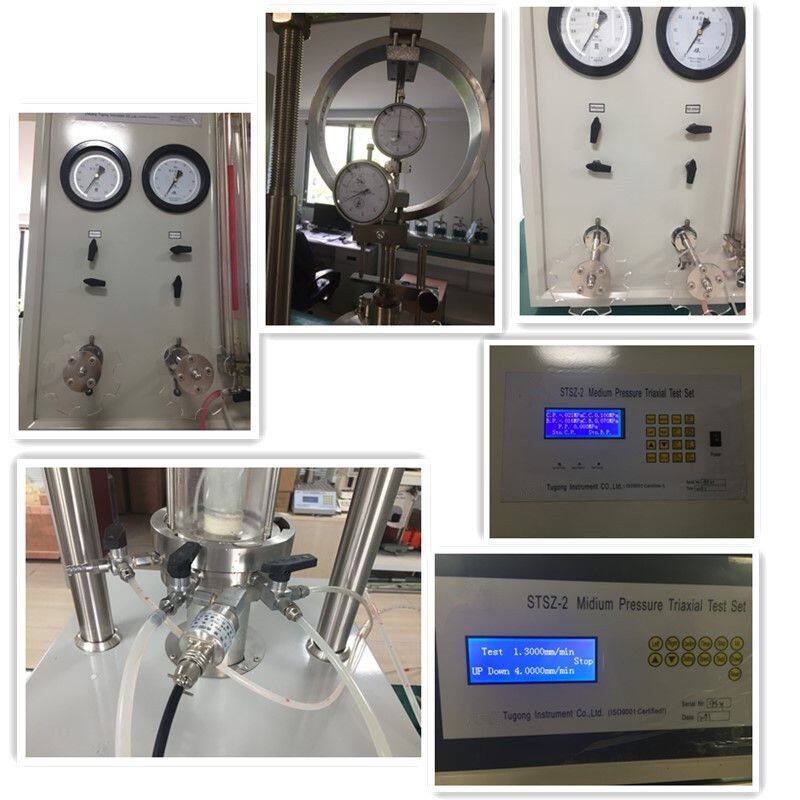

STSZ-2 Soil UCS test strain controlled triaxial testing machine
HST HENSGRAND
Applied to measure the strength and deformation characteristics of the soil specimen.
Perform unconsolidated undrained shear test(UU), consolidated unstrained shear test(CU) and consolidated drained shear test(CD).
1. Specimen size:Φ39.1×80mm,Φ61.8×125mm
2. Axial load:30kN
3. Lift speed range(mm/min): 0.003~4.800
4. Max. Stroke: 50mm
5. Max. confining pressure: 2.5MPa
6. Max. back pressure: 1MPa
7. Pore water pressure: 0-2MPa
8. Volume change range: 0-50ml
9. Min. division: 0.1ml
10. Axial displacement range: 0-30mm
11. Displacement rate: 0.001-5mm/min
We are one of the professional manufacturing enterprises of geotechnical instruments, highway
instruments and building material instruments in China. Meeting the standard of CE ,ASTM and so on.
Our company's main products are divided into below series:
1. Mechanics Testing machines (UTM,CTM)
2. Soil Testing Equipment (CBR,Direct shear Apparatus)
3. Field Testing Equipment (Core Drilling Machine,German Technology)
4. Aggregate (Abrasion machine,Sieve)
5. Asphalt ,Asphalt mixture(Density Meter,Oven)
6. Curing controller,Cabinet(test Chamber,Marshall Compactor)
7. Rock Test Machine
8. Cement
9. Mortar
10. Geosynthetics
11. Waterproof Material
12. Cement Paste
13. Surveying Instrument
14. Balance
15. Lab Test Equipment
16. Others
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL.
We shall let you know about the shipping cost after receipt ofyour order.
It's more preferable for you to provide us with your own FEDEX/DHL account number
so that the delivery charge can be charged directly from your account.
