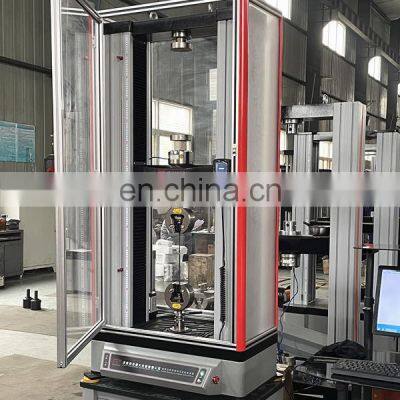

WDW 50kn 100kn Electronic Universal Tensile Tester

Model

WDW-50

WDW-50E

WDW-100

WDW-100E

Max. Load(KN)

50

50

100

100

Load accuracy

Class 1

Class 0.5

Class 1

Class 0.5

Load range

2%~100%F·S

0.2%~100%F·S

2%~100%F·S

0.2%~100%F·S

Structure

Four-column floor or desk model,

(upper is compression and lower is tensile)

Cover

All aluminum alloy

Control method

Computer control

Load resolution

1/300000

Rang of deformation

4%-100%FS

Resolution of deformation

0.04um

Accuracy of displacement

Within±0.5%of indicating load

Resolution of displacement

0.01mm

Test speed(mm/min)

0.05-500 stepless arbitrary setting

Tensile space(mm)

700(can be customized)

Compression space(mm)

700(can be customized)

Test width(mm)

500(can be customized)

550(can be customized)

Workbench thickness(mm)

58

68

Base height(mm)

435

460

Working environment

Room temperature 10℃~30℃,relative humidity≤80%

Power supply

AC220V±10%,50Hz/60Hz(can be customized)

Grips

Wedge type, plate type and other grips as consumer’s demand

Dimension(mm)

850*480*1865

1000*550*2076
