Product Description

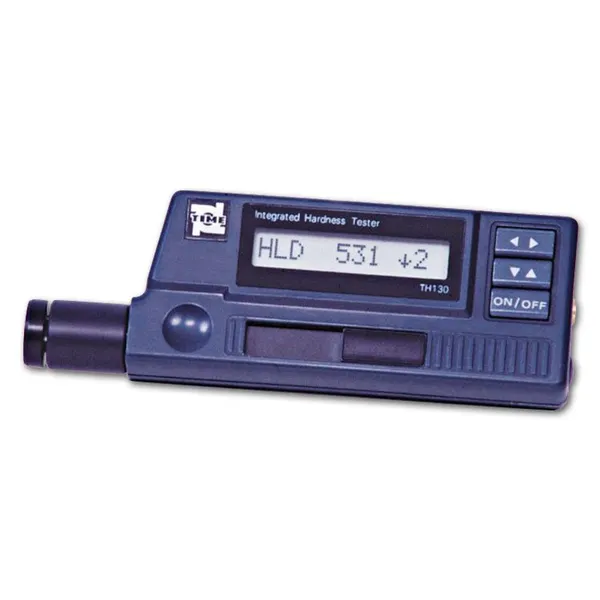

TH 130 Handheld Leeb Hardness Tester

1.Features:

♦ Impact size, easy operation.

♦ Wide measuring range in HLD, direct display of converted hardness values in HB, HRB,HRC,HRA, HV, HS

♦ High applicability, can be used for hardness testing of most metals.

♦ Test at any angle even upside down.

♦ Optional printer TA230 available

♦ Easy measurements on large & heavy workpieces

♦ Measuring for confined spaces of large workpieces

♦ TH130: integrated with D impact device for normal hardness testing

2.Technical parameters:

Model	TH130
Impact device	D integrated
Hardness scales	HLD, HB, HRC, HRA, HV, HS
Accuracy	±6HLD(760 ±30HLD)
Memory	99 average readings
Output	RS232 to printer
Average Surface Roughness of Work piece	1.6μ ( Ra)
Max. Work piece Hardness	900HLD
Min. radius of Work piece (convex/concave)	Rmin = 50mm (with support ring Rmin= 10mm)
Min. Work piece weight	2~5kg on stable support 0.05~2kg with compact coupling
Min. Work piece thickness coupled	5mm
Min. Thickness of hardened layers	0.8mm
Indentation depth	Impact Devices data
Continuous working time	60 h
Power	Rechargeable Li-Polymer batteries
Operating temperature	0~40°C
Overall dimensions	155×24×55mm
Weight	180 g

3.Standard Configurations

1. Main unit
2. Test block with HLD value
3. Charger
4. Cleaning brush
5. Protection pocket

6. Accompany documents

Hand-Held Leeb Hardness Tester
