portable hardness testing
TH130 portable hardness testing

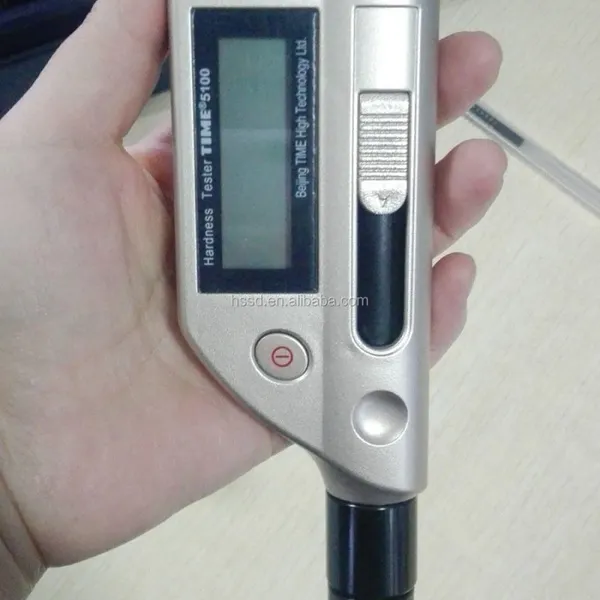

Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.
Features
Light Mini Unit with simple menu, easy and convenient to use
Conversion of hardness scales(HL, HV, HB, HRC, HRB and HS)
USB interface to connect the PC, assisted by Software Dataview TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode:curve chart, data sheet, setting of tolerance limit and data report are available.
Connected to Printer by RS 232 and test values can be printed directly
Measuring Direction:Any direction 360°
Automatic identification of impact test direction
Memory of 270 data in 9 group
Backlight for convenience in darkness
Upper /lower limits setting
AAA 1.5V battery, whose capacity shown in display
Auto power off
TIME®5100: integrated with D impact device for the majority of hardness testing requirements
TIME®5102: integrated with C impact device for hardness testing on thin, light and surface hardened components
TIME®5104: integrated with DL impact device for hardness testing of deep grooves and tooth
Tech parameter
Specification:
|
Model |
TIME ® 5100 |
TIME ® 5102 |
TIME ® 5104 |
|
Impact device |
D integrated |
C integrated |
DL integrated |
|
Hardness scales |
HLD, HB, HRC, HRB,HV, HS |
HLC, HB, HRC, HRB, HV, HS |
HLDL, HB, HRC, HRB,HV, HS |
|
Accuracy |
±6HLD(760 ±30HLD) |
±12HLC |
±12HLD |
|
Memory |
270 average readings in 9 group files |
||
|
Output |
RS232 to printer |
||
|
Min. surface roughness of work piece |
1.6μm ( Ra) |
0.4μm ( Ra) |
1.6μm ( Ra) |
|
Max. work piece hardness |
960HLD |
960HLC |
950HLDL |
|
Min. radius of work piece (convex/concave) |
Rmin = 50mm (with support ring Rmin=10mm) |
Rmin=11mm (with support ring ) |
Rmin = 10mm (with support ring Rmin=10mm) |
|
Min. work piece weight |
2~5kg on stable support 0.05~2kg with compact coupling |
0.5~1.5kg on stable support 0.02~0.5kg with compact coupling |
2~5kg on stable support 0.05~2kg with compact coupling |
|
Min. work piece thickness coupled |
5mm |
1mm |
5mm |
|
Min. thickness of hardened layers |
0.8mm |
0.2mm |
0.8mm |
|
Indentation depth |
Impact devices data |
||
|
Continuous working time |
8h (without backlight) |
||
|
Power |
AAA 1.5V batteries |
||
|
Operating temperature |
0~40℃ |
||
|
Dimensions (mm) |
155×55×25 |
160×60×25 |
215×60×25 |
|
Weight (g) |
180 |
||
