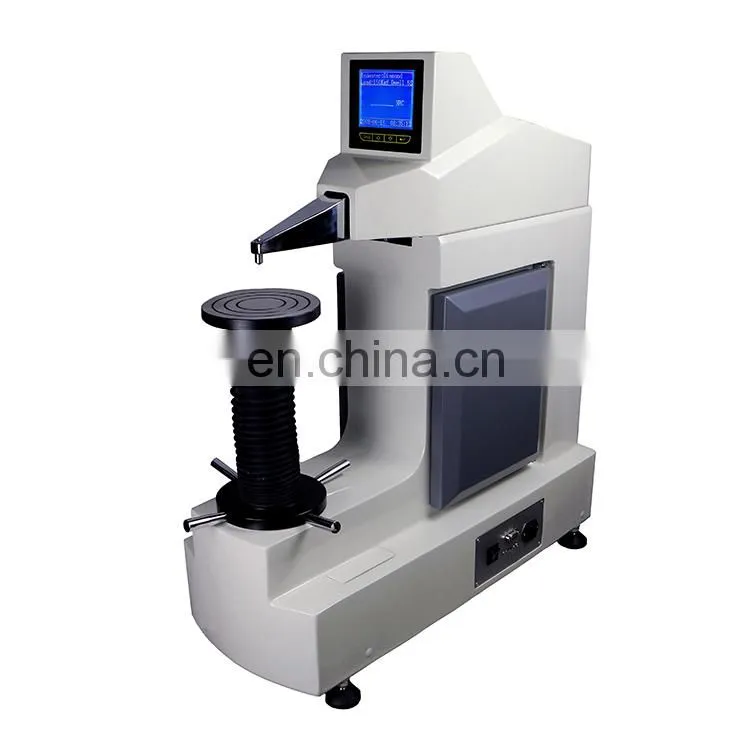

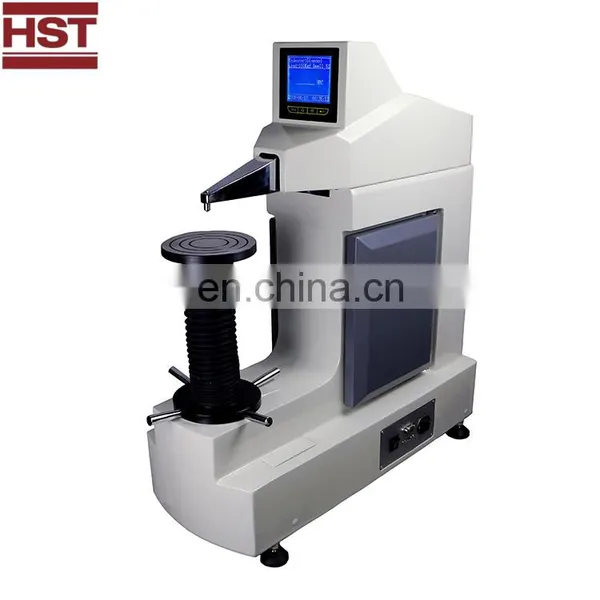

HST functional hardness testers rockwell hardness tester hardness test supplier
| Production Description |
Test features:
l The test force are applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.
l Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type machine.
l Manual handle wheel pre-load. Automatic main-load and testing cycle.
l Extended dolphin nose allows verticaltest height of 300mm and throat depth of 220mm.
l Integrated casting body with more wide basement leads to permanent stability.
l RS232 and USB port to PC.
Hardness Tester Basic functions:
lTwin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
lHorizontal dolphin nose Indenter is suitable also for internal and external testing.
lTesting on Surfaces difficult to reach. Testing internal surface of rings and tubes.
lProvided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
lThe tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
lAutomatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically.
lMeasuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB port.
lTest HR value can be converted to the value of HB, HV, HK and σb value.
lThe tester meets all the following standard such as ISO 6508-2, ASTM E18.
Hardness Tester Parameters
|
Preload |
29.4N(3kgf), 98.1N (10kgf) |
|
Total test force |
147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) |
|
Scales |
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,HRL,HRM,HRP, HRR,HRS,HRV |
|
Load dwell duration |
2~50s, can be set and stored |
|
Resolution |
0.1HR |
|
Display |
High definition backlight LCD |
|
Operation |
Menu selectable, Membrane keypad |
|
Upper/lower limits setting & alarming |
|
|
Data statistics |
Avg., Max., Min., S, R |
|
Curved surface auto correction |
|
|
Memory |
Max 400 items of test results stored automatically |
|
Testing Capacity |
300mm (vertical), 220mm (horizontal) |
|
Dimensions |
690mm×280mm×860mm |
|
Power supply |
AC, 220V/110V, 50~60Hz, 4A |
|
Net weight |
80 kg |
|
Gross weight |
115kg |
