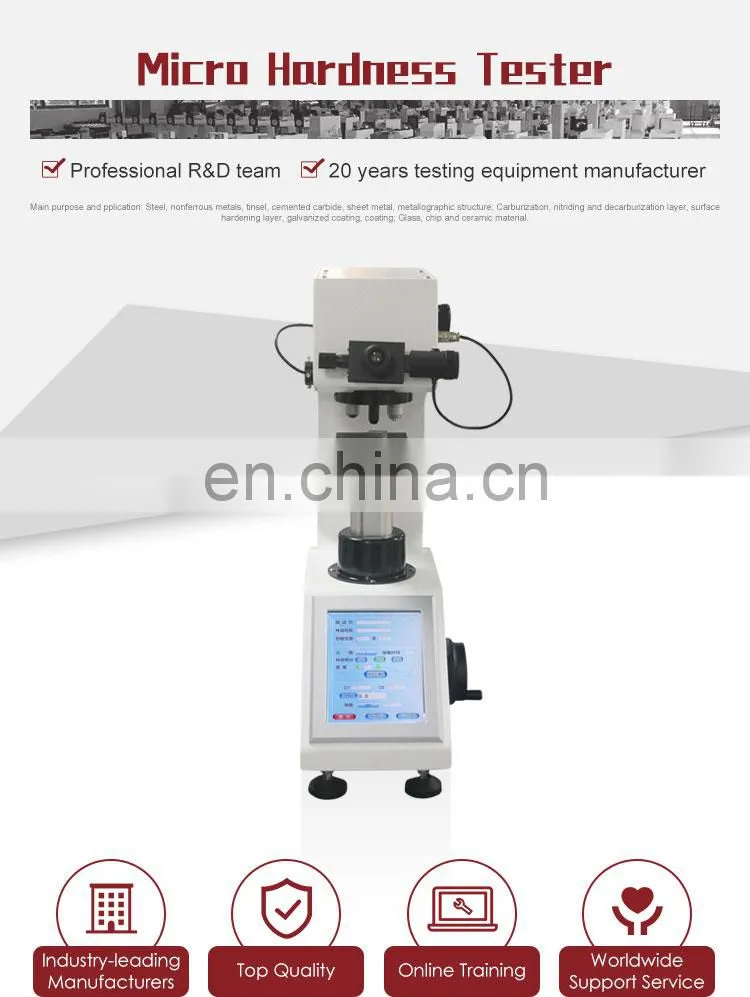

Professional Microhardness Micro Vicker Microdur Hardness Tester With Great Price

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Professional microhardness micro vicker microdur hardness tester with great price

Product Description

Production Introduction:

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Technical Parameters

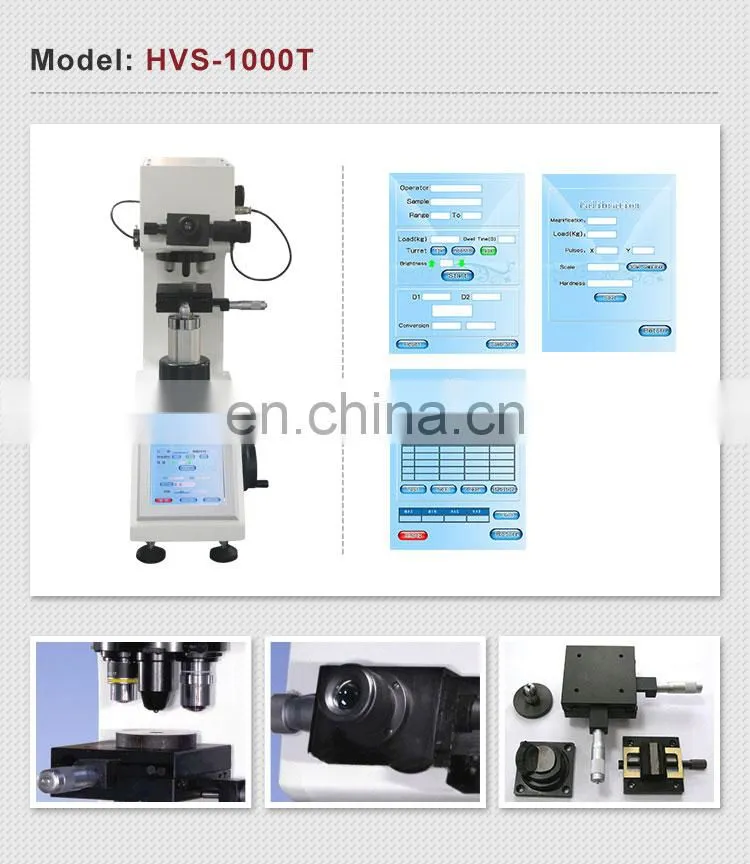

Model	HV-1000Z	HVS-1000Z	HVS-1000ZT
Display model	Small LCD digital display	Big LCD digital display	touch screen Digita Display
Hardness values	Input D1,D2	Direct display	Direct Display
Exchange Scales	HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Test force	10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)
Turret Type	Automatic
Loading and unloading mode	Automatic
Dwell Time	Adjustable 0 to 60 seconds
Micrometer eyepiece multiple	10X(optional 15X)
Me measurement resolution	0.25µm (drum reading)
Objective magnification	10X 40X
Total magnification	100X(objective)400X(measurement)
measurement range	150µm
light source	Halogen lamp (brightness adjustable)
Hardness conversation	Brinell, rockwell, surface rockwell
Max. Height of Specimen	80mm
Depth at center line	95mm
XY test table size	100X100mm Max. movement:25*25mm
Min. Measuring Unit	0.01μm
RS232,Built-in print,data statistics	No	Yes	Yes
