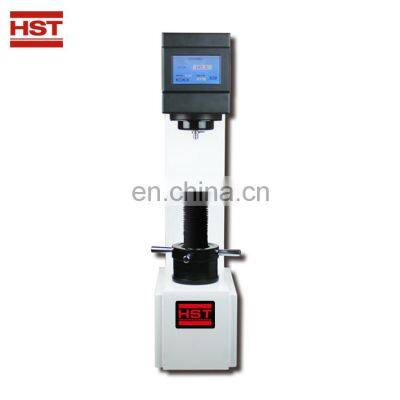

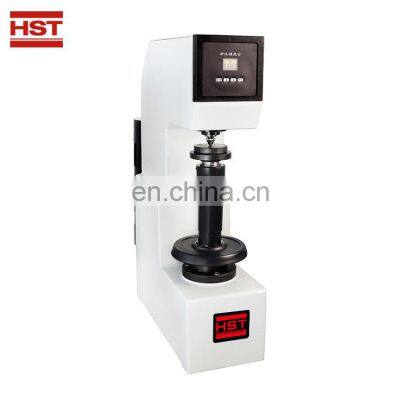

HBS-3000B Electronic Digital Brinell Hardness Tester

Product Description

Application:

Can be used to determine un-quenched steel.,Cast iron.,Non-ferrous metal and the soft texture of bearing

metal materials ' brinell hardness value.

Specifications:

Model	HB-3000B	HBS-3000BT	HB-3000CT	HBS-3000ET
Testing Range	8-450HBS,8-650HBW
Testing Force	1.839,2.452,7.355,9.807,29.42KN(187.5,250,750,1000,3000kgf)		62.5kgf,100kgf,125kgf,187.5kgf,250kgf,500kgf,750kgf,1000kgf,1500kgf,3000kgf
Loading mode	Weight		Motor, closed-loop control
Indentation measurement method	20 times readings microscope(HB-3000B,HB-3000CT) Direct reading(HBS-3000BT/3000ET)
Data output	Built-in printe(HBS-3000BT/HBS-3000ET)
Display mode	/	LCD touch screen display
Duration time	6~99S
Max Testing Height	230mm	280mm
Distance Between Pressing Head Center And The Wall	120mm	150mm
Tungsten carbide ball penetrator	Φ2.5,Φ5,Φ10
Power Supply	220V/50HZ
