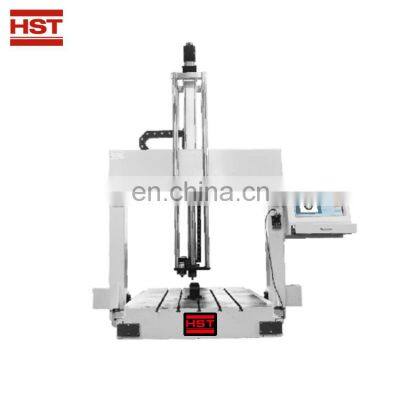

The Gate-type HBM-3000 Brinell Hardness Tester

Application:

This machine is an important instrument for testing the hardness of ferrous metals, non-ferrous metals and bearing alloy materials. It is especially suitable for precise measurement of Brinell hardness of extra large workpieces. It adopts high-precision load cell and high-resolution displacement sensor to ensure accurate measurement; it has the characteristics of stable loading, low vibration, low noise, and high precision.

Specifications:

(1) Measurement parameters

Maximum test force (kg):750,1000,3000kgf

Hardness tester level: 0.5;

Test force measurement range (kg): 32-650HBW;

The maximum allowable height of the sample: 950mm.

The distance between two vertical columns: 1350mm.

The horizontal movement distance of the main shaft: 500mm

Size of workbench: 1500*1000mm,

Overall size: host machine 2000*1800*2180mm,

Size of control box: 510*500*1450mm;

Hydraulic station: 890*600*1160mm,

Power supply: ac380,50/60hz
