Home > Instruments & Meters > Test Instrument > Test Machine > CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester

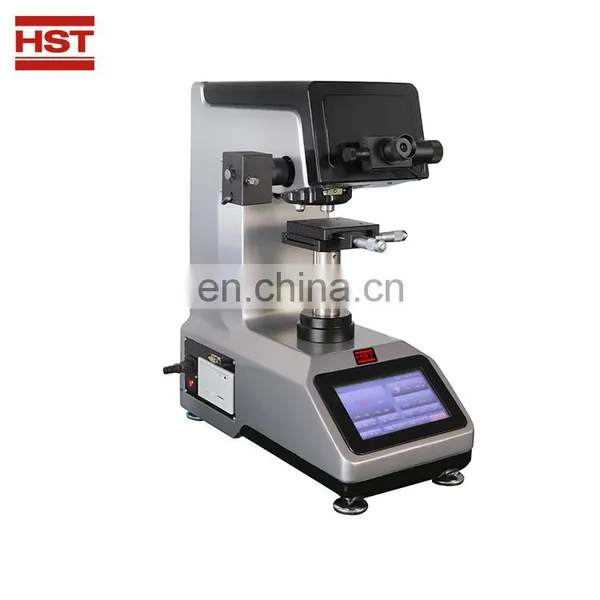

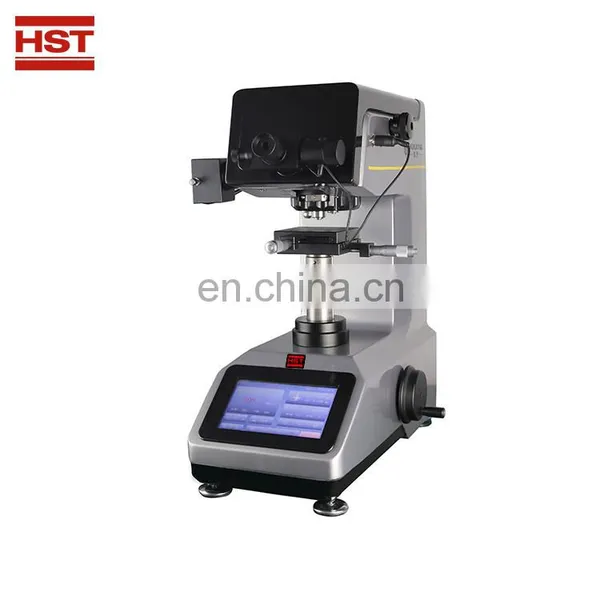

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester thumbnail-3

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester thumbnail-4

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester thumbnail-5

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester photo-1

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester photo-2

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester photo-3

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester photo-4

CE Approved HVS-1000A Big LCD Digital Play Micro Vicker Hardness Tester photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

New design unit hv diamond tester vicker hardness test machine made in China

Production Introduction:

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Technical Parameters

Model	HV-1000Z	HVS-1000Z	HVS-1000ZT
Display model	Small LCD digital display	Big LCD digital display	touch screen Digita Display
Hardness values	Input D1,D2	Direct display	Direct Display
Exchange Scales	HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Test force	10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)
Turret Type	Automatic
Loading and unloading mode	Automatic
Dwell Time	Adjustable 0 to 60 seconds
Micrometer eyepiece multiple	10X(optional 15X)
Measurement resolution	0.25µm (drum reading)
Objective magnification	10X 40X
Total magnification	100X(objective)400X(measurement)
measurement range	150µm
light source	Halogen lamp (brightness adjustable)
Hardness conversation	Brinell, rockwell, surface rockwell
Max. Height of Specimen	80mm
Depth at center line	95mm
XY test table size	100X100mm Max. movement:25*25mm
Min. Measuring Unit	0.01μm

Related Products

Q1: Custom text

1.Are your company a trading one or a factory ?
Factory + trade (integration),18 years focusing on test instruments field,13 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What''s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don''t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 110 countries, like USA, Canada, Russia,UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won''t be damaged. We''ve delivered many testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
