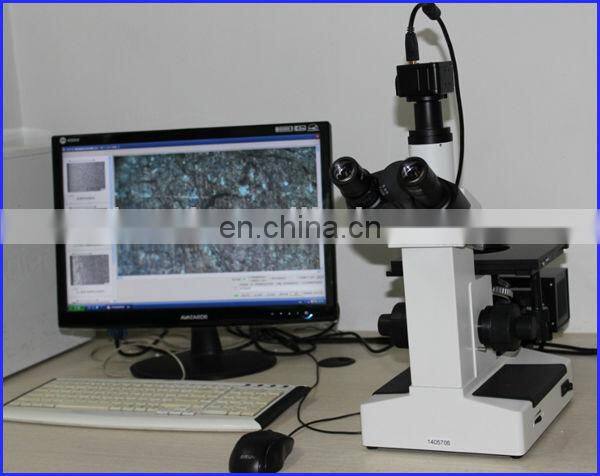

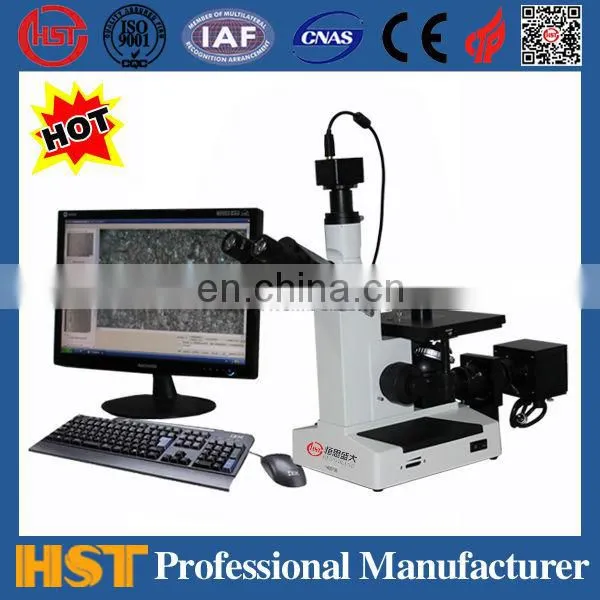

4XCE Trinocular Inverted Metallurgical Digital Microscope CCD
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MoPao3S Double Discs Metallographic Specimen Automatic Grinding and Polishing MachineNegotiableMOQ: 1 -
MP-1B 50-1000rpm Single Disc Polishing Grinding MachineNegotiableMOQ: 1
-
ZXQ-1 Automatic Metallographic Sample Mounting Press for Mosaic Small SpecimensNegotiableMOQ: 1
-
HST-XQ2B-30 30mm Manual Metallographic Mounting Press Sample to Be Compressed Is 30mm for LabUS$ 2519.25 - 2939.12MOQ: 1 Set
-
HST-XQ2B-22 22mm Metallographic Mounting Press Small Diameter Sample to Be Compressed Is 20mm Metallographic Mounting PressUS$ 2239.33 - 2659.21MOQ: 1 Set

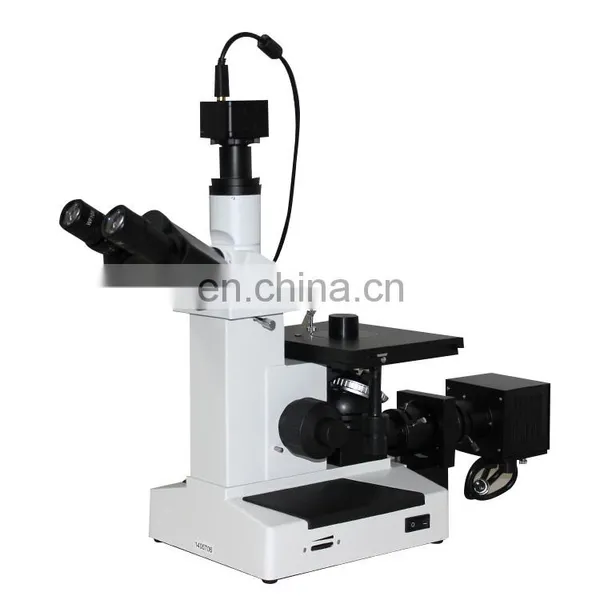

4XCE Trinocular Inverted Metallurgical Microscope
1. Function and application
This metallographic microscope is mainly used for metal identification and analysis of the internal structure of organizations.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify
the product quality in industrial application. This microscope can be equipped with photographic device which can take
metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
It is the important device which can be used to study the metallographic of metal, and it is also the key instrument to verify
the product quality in industrial application. This microscope can be equipped with photographic device which can take
metallographic picture to carry out artificial contrast analysis, image editing, output, storage, management and other functions.
2. Main technical parameters
Three eyepiece tube |
Tilting angle: 30° Adjustable range: 55-75mm |
Eyepiece |
Wide view eyepiece 10X (16mm) |
Objective lens |
Flat fielding achromatic objective lens 10X, 20X, 40X, 100X (oil) |
Loading table |
150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
Eyepiece (optional) |
12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |
Objective lens (optional) |
60X, 80X |
Photographic device (optional) |
1. Image adapting lens, high resolution color CCD camera static and dynamic
capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens |
3. Configuration
1) Metallographic microscope: inverted trinocular microscope 4XC;
2) Adaptor: special adaptor
3) Image system: camera shooting CCD
4) Image analysis system: SRMAS software
