Metallographic Sample Grinding And Polishing Machine
Mobile/Whatsapp: +86-15098778967 Skype:hssdtest ALI: cn1001290168
Application And Features:
MP-2B Grinding and Polishing Machine suitable for metallographic specimen pre-grinding, grinding and polishing operation, is the necessary equppment to make metallographic specimen.

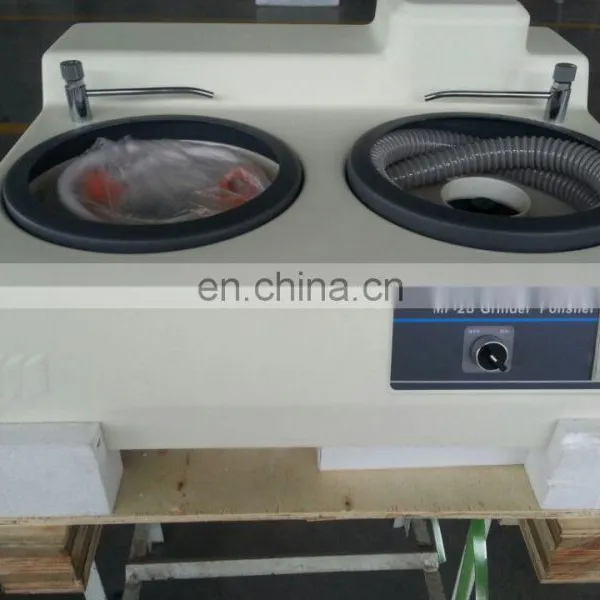

Its equipped with cooling device, used to cooling the sample when grinding, to prevent the sample overheating and destroy metallographic organization.The left disc used for grinding and the right disc used for polishing,so 2 people can operate at the same time.
Its easy to operation, safe and reliable,is the ideal sample preparation equipment for factories, research institutes and universities laboratory.
Technical parameters :
Model |
MP-2B |
Grinding disc diameter |
203mm |
Polishing disc diameter |
203mm |
Grinding speed |
50-1000rpm |
Polishing speed |
50-1000rpm |
Motor driver |
550W,220V, 50Hz |
Machine size (L*W*H) |
690×715×310mm |
Net weight |
45kg |
Standard accessories:
Descriptions |
Specification |
Quantity |
Grinding/Polishing Machine |
1 set |
|
Pressure-sensitive adhesive cloth |
φ200mm |
2 pcs. |
Metallographic abrasive paper |
φ200mm |
2 pcs. |
Polishing disc |
φ203mm |
2 pcs. |
Grinding disc |
φ203mm |
2 pcs. |
Clamping ring |
φ203mm |
2 pcs. |
Inlet water pipe |
1 pc. |
|
Outlet water pipe |
1 pc. |
|
Sealing ring |
4 pcs. |
|
Instruction manual |
1 share |
|
Packing list |
1 share |
