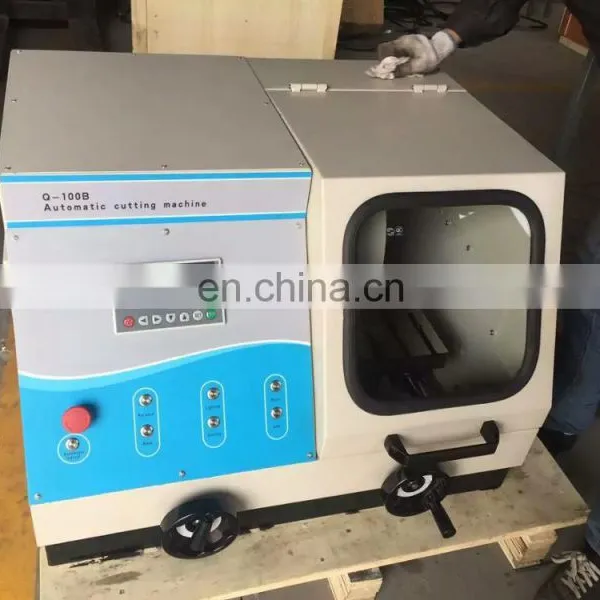

Q-100B Metallographic Cutting Machine
Application:
Model Q-100B manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces.
Technical specifications:
Various cutting data can be displayed on high definition backlight type LCD screen.
Cutting diameter: Ø5-100mm
Cutting volume: Ø100mm x 200mm
Manual cutting and automatic cutting means can be switched at will
Large cutting chamber, tempered glass observing window
Equipped with 60L cooling liquid water tank.
Non-burning loss swing type cutting means that improved the cutting quality
Automatic withdraw function after cutting is finished
Bidirectional feeding means increase the length of deep cutting
Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.
Sand wheel rotating speed: 2100rpm
Sand wheel specification: 350 x 2.5 x 32mm
Display: LCD with high resolution backlit dot matrix
Power: three phases with four cables, 380V, 50Hz.
Dimensions: 930 x 700 x 610mm
Net weight: 220 KG
Package :
