Product Description
Aluminum Metallographic Cutting Machine
Metallographic Cutting Machine Application:

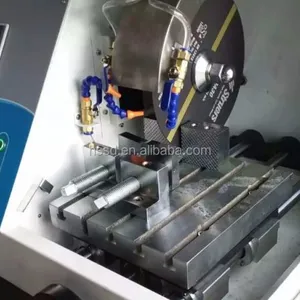

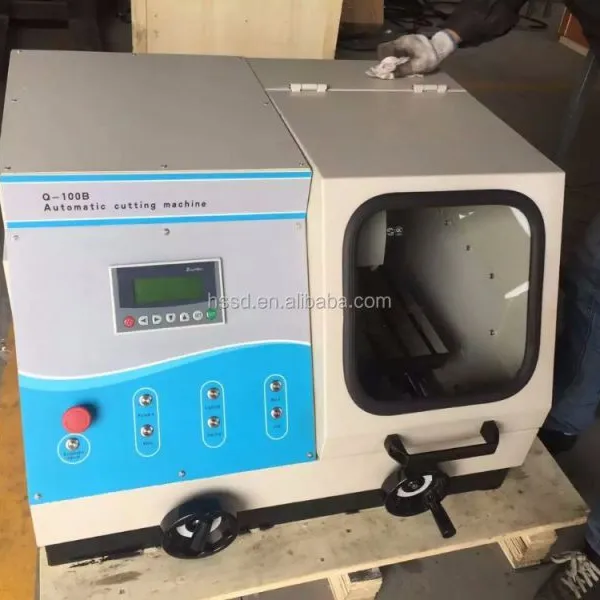

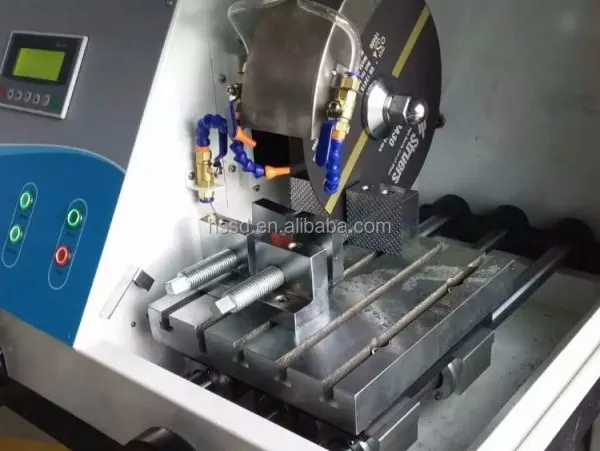

Model Q-100B manual / automatic metallographic specimen cutting machine is equipped with big cutting room and movable T-shape work table. Therefore this machine has the ability of cutting rectangle and large specimens. Also the equipped separate type vice is very convenient for operator to clamp various heterotypic work pieces.
Metallographic Cutting Machine Technical specifications
- Various cutting data can be displayed on high definition backlight type LCD screen.
- Cutting diameter: Ø5-100mm
- Cutting volume: Ø100mm x 200mm
- Manual cutting and automatic cutting means can be switched at will
- Large cutting chamber, tempered glass observing window
- Equipped with 60L cooling liquid water tank.
- Non-burning loss swing type cutting means that improved the cutting quality
- Automatic withdraw function after cutting is finished
- Bidirectional feeding means increase the length of deep cutting
- Cutting speed: 2.25, 3, 4, 5, 7, 9, 12, 15mm/min.
- Sand wheel rotating speed: 2100rpm
- Sand wheel specification: 350 x 2.5 x 32mm
- Display: LCD with high resolution backlit dot matrix
- Power: three phases with four cables, 380V, 50Hz.
- Dimensions: 930 x 700 x 610mm
- Net weight: 220 KG
