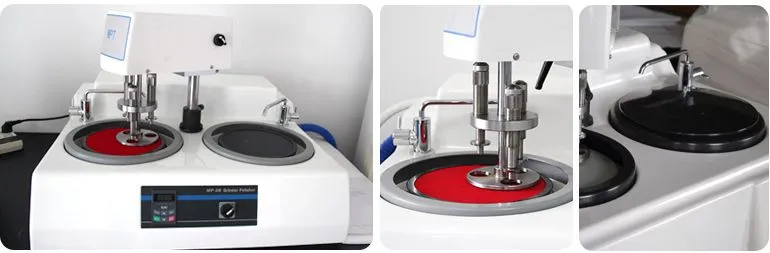

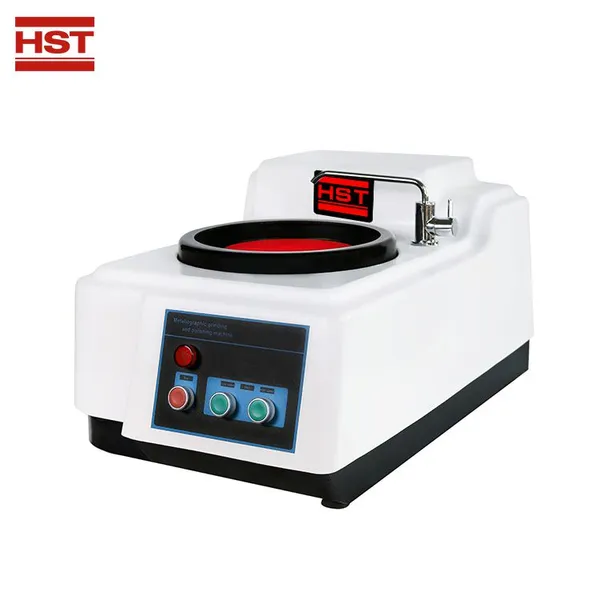

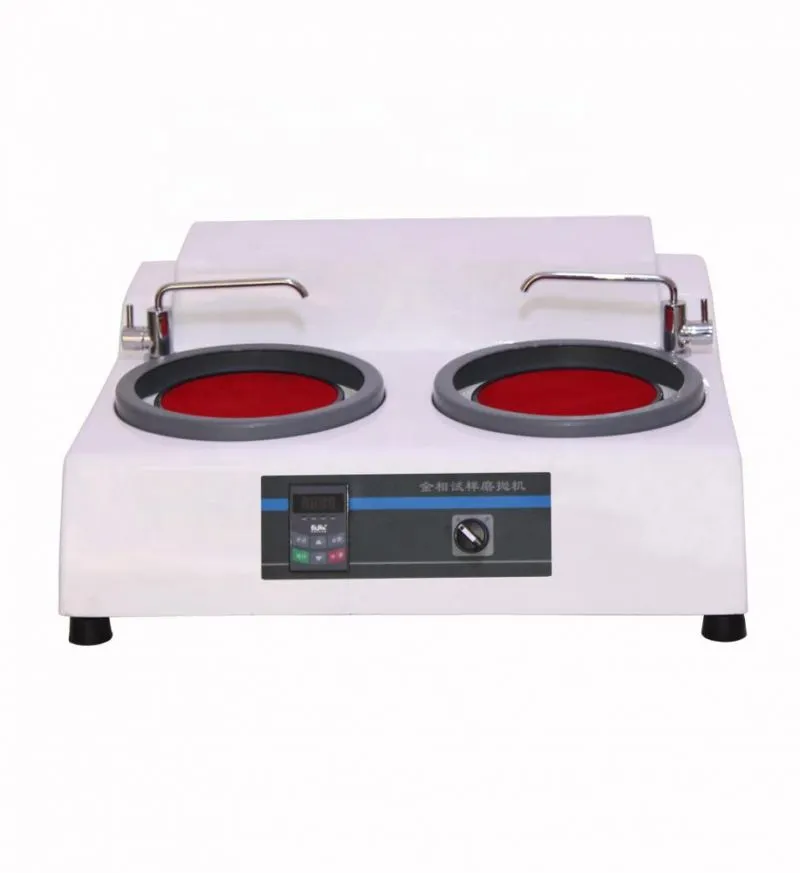

HST MP-2B Metallographic Equipment Electro Polishing Machine

HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-1
HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-2
HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-3
HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-4
HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-5
HST MP-2B Metallographic Equipment Electro Polishing Machine thumbnail-6
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-1
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-2
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-3
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-4
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-5
HST MP-2B Metallographic Equipment Electro Polishing Machine photo-6
US$ 7697.69 1 - 4 Set
US$ 5598.32 ≥5 Set
Key Specifications
Get Latest Price
Application:
It makes use of different sizes of sand paper
place of origin:
Shandong, China
brand name:
Other
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
place of origin Shandong, China
brand name Other
video outgoing-inspection Provided
machinery test report Provided
core components Gear
power (kw) 3
weight (kg) 60
key selling points Easy To Operate
warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Usage Metallographic machine
Name MP-2B Metallographic Equipment Electro Polishing Machine
Disk No. 2
Disc diameter 200mm
Motor 370W 220V 50Hz
Overall dimensions 690 *715*310mm
Net Weight 45Kg
Disc rotating speed 450r/min ,600r/min(or customized according to user requirements)

MP-2B Metallographic Equipment/Electro Polishing Machine

HST MP-2B Metallographic Equipment Electro Polishing Machine



Product Description

1.Application:

Electro Polishing Machine  is a wet grinder; it makes use of different sizes of sand paper, carries out the grinding on the sample of various metals and the alloy.Using the pregrinding machine, beside the replacement of manual sample by mechanical polishing can improve efficiency. It can also completely remove the traces of plastic deformation and surfacein the process of specimen cutting, after further polishing, and it will have the micro-measurement of the organization



2. Structural characteristics outlined:

In the process of working, the pre-grinding machine can inject cooling water into the rotating millstone through the rotating-water; the sandpaper can stick to the millstone through the power of atmospheric pressure, so there is no need for bonded or clamping sandpaper.

This machine is equipped with beautiful and practical fiberglass shell, the full use of stainless steel standard parts, the body will never rust, and thereby it greatly enhances the product’s performance, so that it becomes the ideal equipment of pre-grinding specimen.

Technical Parameters



3.Technical parameters :

   Model

   MP-2B

Grinding Disc Diameter

200mm

Polishing Disc Diameter

200mm

Grinding Disc Rotating Speed

50-1000rpm(stepless speed)

Motor

550 W

Dimension

700x600x278mm

Weight

50kg

Operating voltage

AC 220V,50Hz



Related Products

 MP-2B  Metallographic Specimen Grinding and Polishing Machine

HST MP-2B Metallographic Equipment Electro Polishing MachineHST MP-2B Metallographic Equipment Electro Polishing MachineHST MP-2B Metallographic Equipment Electro Polishing MachineHST MP-2B Metallographic Equipment Electro Polishing MachineHST MP-2B Metallographic Equipment Electro Polishing Machine



Company Information

HST MP-2B Metallographic Equipment Electro Polishing MachineHST MP-2B Metallographic Equipment Electro Polishing Machine

Our Services

Lifelong after-sales service & maintenance;

Response within 24 hours for any problem;

Overseas training, installation is avaliable.
