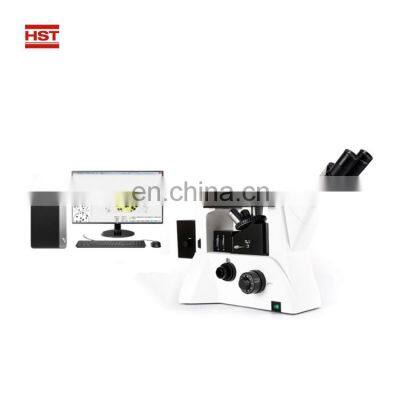

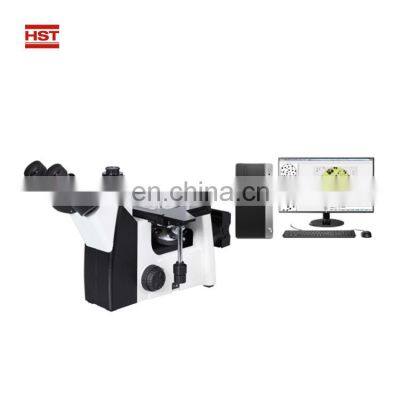

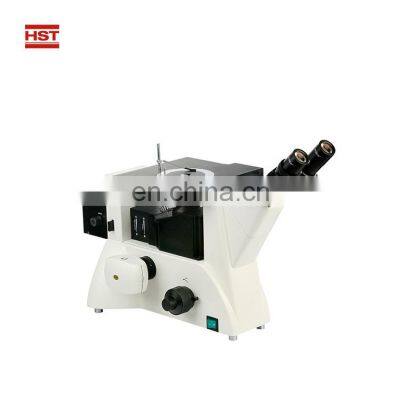

HST-XJP-6AE Trinocular Inverted Metallurgical Microscope

Hst Group Co.,ltd. Gold Verified Supplier

1Yr

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

HST-XJP-6AE Trinocular Inverted Metallurgical Microscope

Product Description

1.Application:

HST-XJP-6AE Trinocular Inverted Metallurgical Microscope, the optical system is configured with

bright field, dark field, polarized light, interference contrast, sensitive light hue and so on.

Magnification reach to 1250X.

High resolution view field can lead to the eyepiece, camera viewfinder, 35mm camera and

camcorder interface conjugate parfocality windows for conversion, quick and easy.

Fully enclosed optical structure, dust-proof anti outside light interference design.

1.1.Can choose bright field, polarized light and dark field observation mode.

1.2.Coaxial mechanical stage, do not need flattening the sample.

1.3.Wide field of vision binoculars, with visual compensating function.

1.4.Lighting source with alignment adjusting wheel, image brightness uniformity.

1.5.Plan achromatic Objective lens group, to provide high-resolution images.

HST-XJP-6AE compact and steady main frame body is embodiment for the shock resistance.

The ideal ergonomic design is adopted in this unit and has easier operation and wider space.

This is ideal optical instrument for micro observation in metallographic structure and surface

morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.

2.Technical Specifications:

Model	HST-XJP-6AE
Optical System	Invert, Bright field, Polarizing, Dark field (optional)
Magnification	100X~1250X
Observation Tube	Hinged 30°tilt, IPD adjustment Range: 55-75mm
Eyepiece	Flat-field wide field 10X, 12.5X, Diopter can adjustable.
Objective Lens Turntable	4-hole turntable, achromatic 10X, 20X, 40X, 100X(oil)
Stage	Mechanical stage, moving range: X axis: 85mm, Y-axis: 60mm
Focusing	Low coaxial coarse and fine adjustment knobs. Focusing Stroke: up 5mm, down: 2mm.
Lighting System	6V30W halogen lamps, Adjusting the field diaphragm and aperture diaphragm, Filament alignment adjustment.
Color Filter Group	Turntable filter converter, blue, green, yellow, neutral loop.
Dimensions	530220260mm
