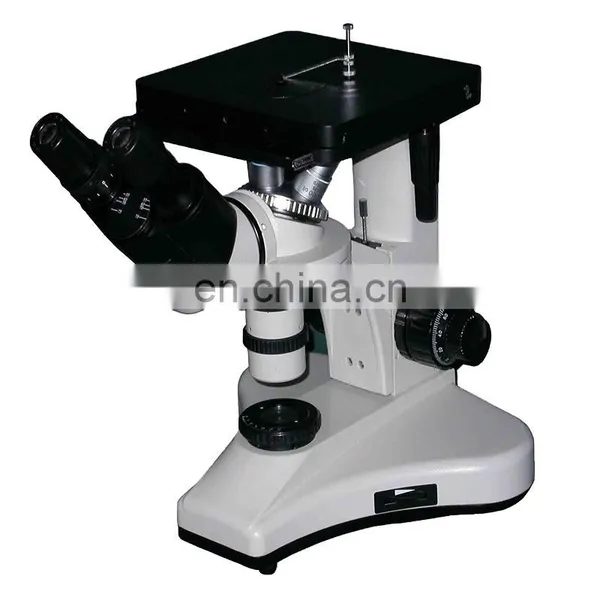

HST-4XB Portable Inverted Metallographic Microscope
1.Application
Metallurgical Microscope is equipped excellent infinity optical system and modularization function design, you can easily upgrade the system to achieve polarization observation, dark field observation and other functions.Compact and stable high rigidity body,fully embodies the anti-vibration requirements of microscope operation. Ideal design for ergonomic requirements, make the operation more convenient and comfortable, and space wider. Suitable for microscopic observation of the microstructure and surface morphology, it is the ideal instrument for metal, mineralogy, precision engineering research.
2.Technical Parameters:
|
2.1. Eyepiece: |
|||||||||
|
Category |
Magnification |
View Diameter |
|||||||
|
Flat-field Eyepiece |
10X |
18 mm |
|||||||
|
12.5X |
15 mm |
||||||||
|
2.2. Objective: |
|||||||||
|
Category |
Magnification |
Numerical Aperture (NA) |
System |
Working Distance |
|||||
|
Achromatic Objective Lens |
10X |
0.25 |
Dry |
7.31 mm |
|||||
|
Semi-flat-field Achromatic Objective Lens |
40X |
0.65 |
Dry |
0.66 mm |
|||||
|
Achromatic Lens |
100X |
1.25 |
Oil |
0.37 mm |
|||||
|
2.3. |
The Total Optical Magnification |
100X-1250X |
|||||||
|
2.4. |
Mechanical Tube Length |
160 mm |
|||||||
|
2.5. |
Rough Focusing Fretting Institutions |
Focus Range |
7 mm |
||||||
|
Lattice-valued Scale |
0.002 mm |
||||||||
|
2.6. |
Rough Dynamic Focusing Range |
7 mm |
|||||||
|
2.7. |
Machinery Table |
75 * 50 mm |
|||||||
|
2.8. |
Lighting Bulb |
6V 12W Bromine Tungsten Lamp |
|||||||
|
2.9. |
Containing Object (Diameter) |
10,20,42 |
|||||||
|
2.10. |
Instrument Weight |
5.00 KG |
|||||||
|
2.11. |
Packing Box Size |
360 * 246 * 360 Millimeters |
|||||||
|
2.12. |
Power Supply |
220V, 50Hz |
|||||||
