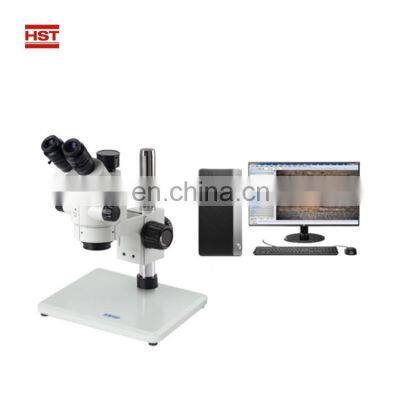

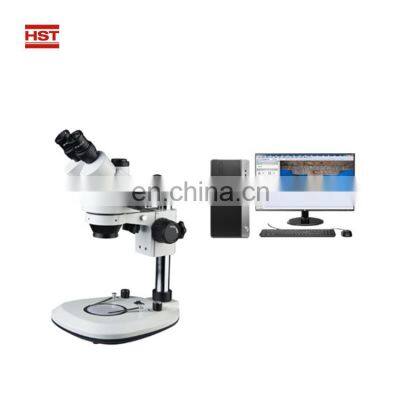

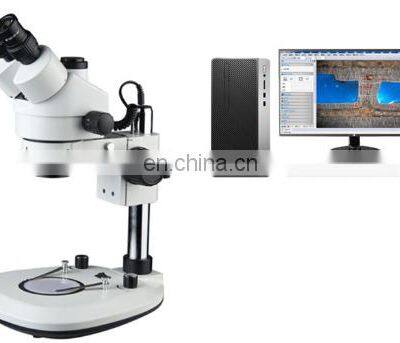

Digital Trinocular Continuous Zoom Stereomicroscope
1.Technical Parameters:
|
NO. |
Model |
NAME |
HST-JSZ7 |
REMARK |
|
1 |
|
Objective Lens |
Standard |
0.7X-4.5X; WD=110mm |
|
2 |
ES10 |
10× Large Field Of Vision Flat-field Eyepiece |
Standard |
FN=20mm |
|
3 |
ES15 |
15× Large Field Of Vision Flat-field Eyepiece |
Optional |
FN=16mm |
|
4 |
ES20 |
20× Large Field Of Vision Flat-field Eyepiece |
Optional |
FN=13mm (Original Olympus Eyepiece) |
|
5 |
ES25 |
25×Flat-field Eyepiece |
Optional |
FN=9mm |
|
6 |
ES30 |
30×Flat-field Eyepiece |
Optional |
FN=7mm |
|
7 |
18T.4 |
0.5×Camera Eyepiece |
Standard |
WD=192mm |
|
8 |
18T |
Binocular Body |
Optional |
Tilt 30° |
|
9 |
18TA |
Trinocular Body |
Standard |
Tilt 30° |
|
10 |
|
Loading Plate 1 |
Optional |
Black And White Plastic(φ95) |
|
11 |
|
Loading Plate 2 |
Standard |
Frosted Glass(φ95) |
|
12 |
|
Oblique Spot Light |
Optional |
Kodak Halogen |
|
13 |
|
Transmittance Light |
Standard |
Kodak Halogen |
|
14 |
|
Annular Fluorescent Lamps |
Standard |
External Hanging Type |
|
15 |
|
LED Annular Lights |
Optional |
External Hanging Type |
|
16 |
RZ300 |
Digital Cameras |
Standard |
USB2.0 Data Interface. 3 Million Real-time Pixel. With Software. |
|
Continuous Zoom 7X-45X, Can Connect Computer And Software. |
||||
2.Feature:
2.1. Achromatic objective lens and wide field, high eye point eyepiece combination, make the field
wide, flat and clear.
2.2. Precision zoom rotation ensure continuous zoom.
2.3. Long working distance objectives, endoscopic operation is extremely easy.
2.4. Binocular observation can be synchronized with photography, camera shooting.
2.5. With anti-static function, protect sensitive components from electrostatic damage.
