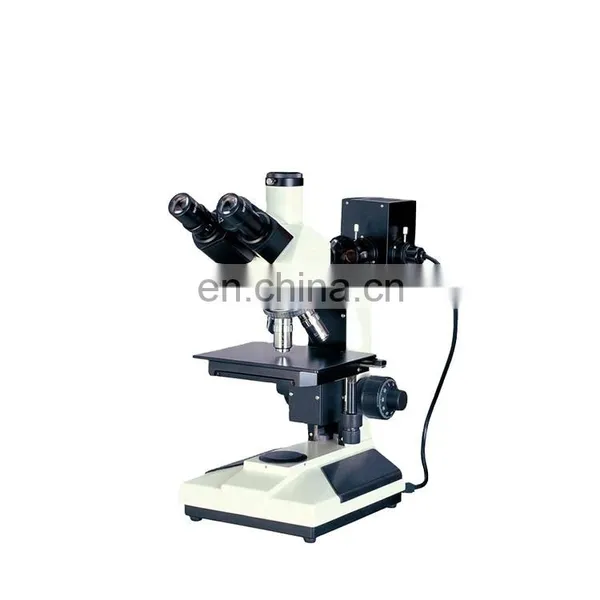

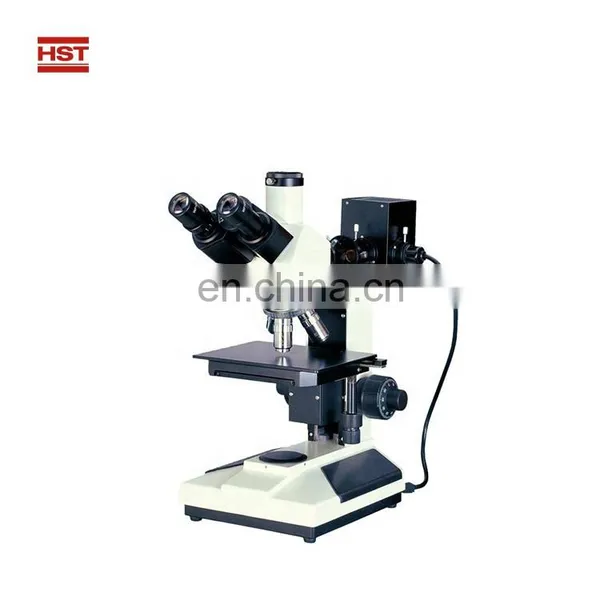

HST-FL7500E Trinocular Upright Metallurgical Microscope With Camera
1.Application:
HST-FL7500E Trinocular Upright Metallurgical Microscope used for microscopic observation of opaque objects and transparent objects. Observing particles of power metallurgy, metallographic organization, etc. Has measuring software, computerized display images, and observed and measured. This type has Epi-illuminator, long achromatic objective lens (no cover glass), wide-field eyepieces and set polarizer device. Image clarity, easy operate. Beautiful exterior and easy operate. It is the ideal instrument for metal, mineralogy, precision engineering research. Suit for schools, research, factories and other departments.
2.Technical Specification:
|
Model |
HST-FL7500E |
|
Eyepiece |
Wide Field WF10X(Φ18mm) |
|
Objective |
Long achromatic objective lens (no cover glass) PL 5X/0.12 |
|
Long achromatic objective lens (no cover glass) PL L10X/0.25 |
|
|
Long achromatic objective lens (no cover glass) PL L40X/0.6 |
|
|
Long achromatic objective lens (no cover glass) PL L60X/0.75 |
|
|
Observation Tube |
Compensation Free Trinocular, 30° tilt (built inspection polarizer, can be switched) |
|
Lighting System |
6V 20W, Halogen lamp, brightness can be adjusted |
|
Epi-illumination System |
Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration. |
|
Focusing mechanism |
Coaxial coarse focus, Micro-grid value: 2μm Coarse dynamic elastic adjustable, with lock and limit device |
|
Converters |
Four holes (Backward ball bearing inner locating) |
|
Stage |
Double mechanical movable (Size: 185mmx140mm, Moving Range: 75mmx50mm) |
