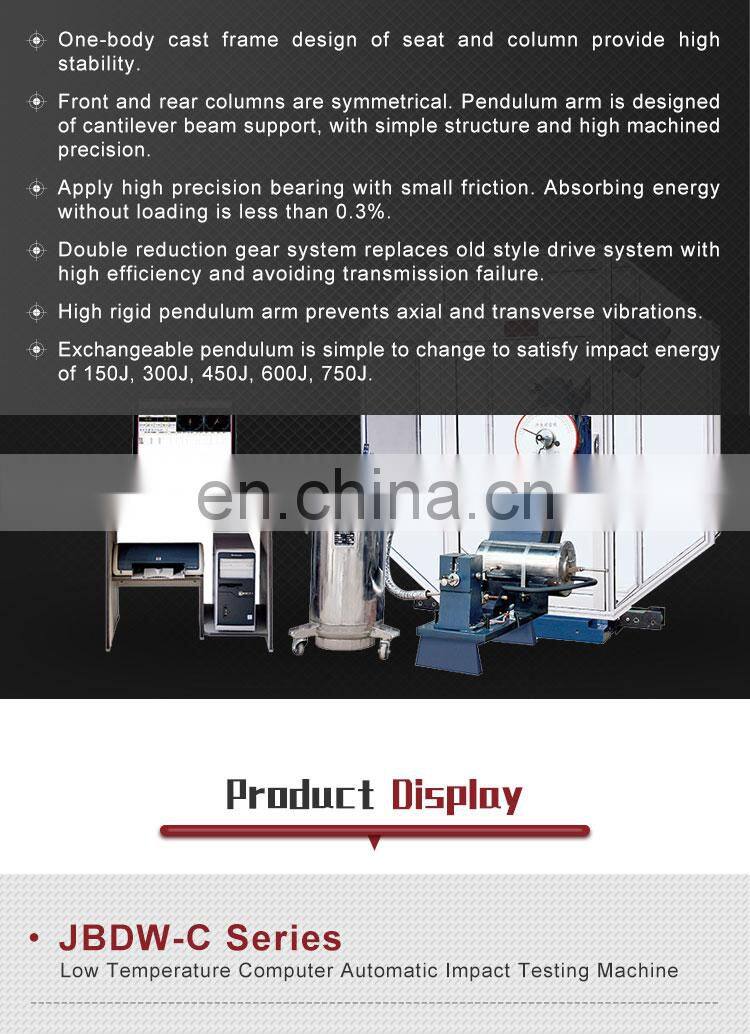

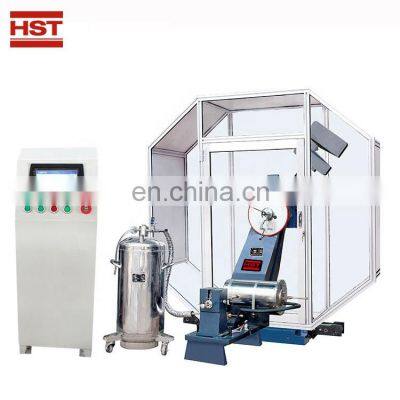

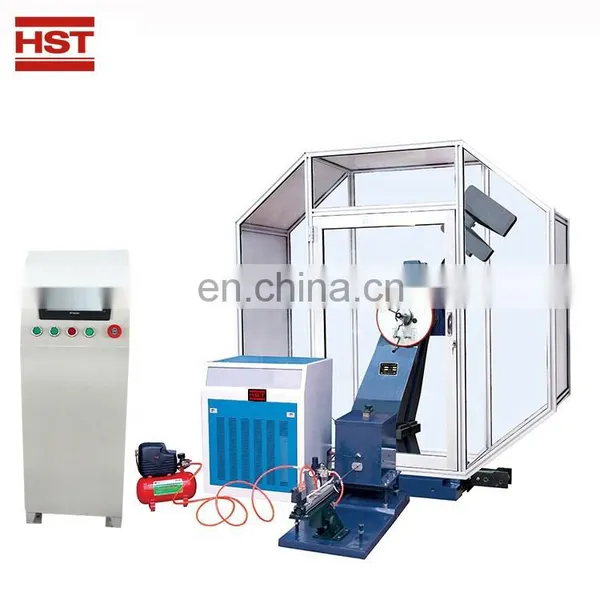

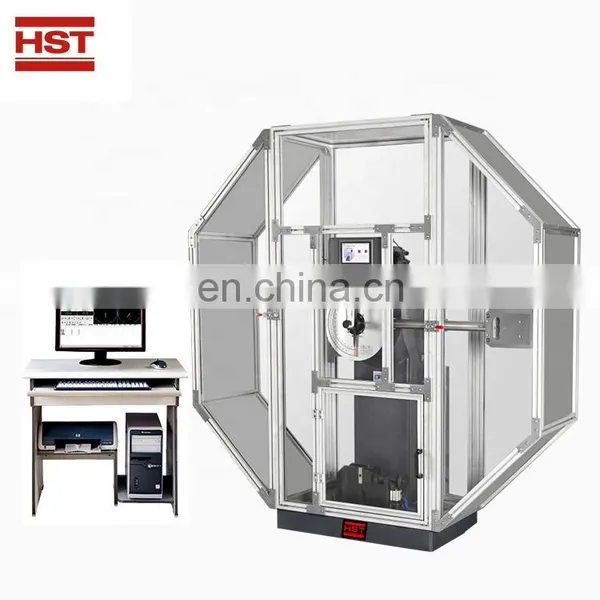

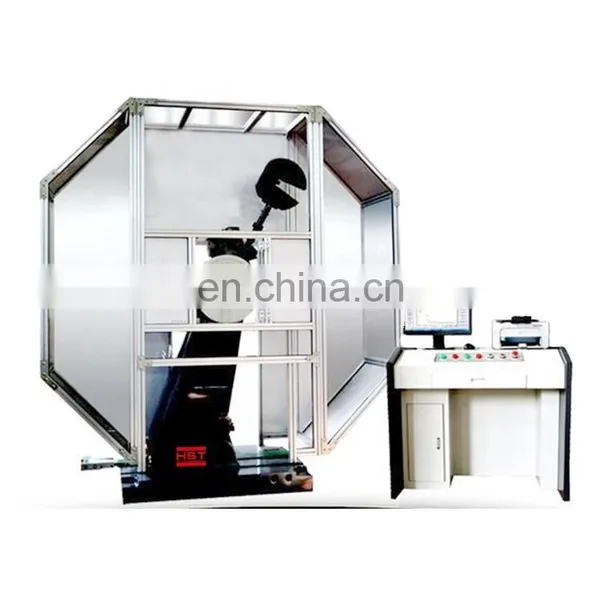

HST High quality 300j 500j impact tester and charpy impact testing machine

Name: HST High quality 300j 500j impact tester and charpy impact testing machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Product Description

HST High quality 300j 500j impact tester and charpy impact testing machine

Product Description

Production Description

HST High quality 300j 500j impact tester and charpy impact testing machine

Model	JBDW-300D	JBDW-500D
Impact Energy	150 J / 300 J	250 J / 500 J
Value Of Every Grid	1 J
Control Methods	Computer Full Automatic Control
The Distance Between The Pendulum	750 mm	800 mm
Shaft And Impact Point
Impact Speed	5.2 m/s	5.4 m/s
Impact Pendulum Configuration	150 J, 1 PC;	250 J, 1 PC;
	300 J, 1 PC	500 J, 1 PC
Pre-rising Angle Of The Pendulum	150°
Specimen Bearer Span	40+0.2 mm
Round Angle Of The Jaw	R 1.0~1.5 mm
Round Angle Of Impact Edge	R 2.0~2.5 mm (Special Order: R8±0.05 mm)
Angle Accuracy	±0.1°
Standard Specimen Dimension	10 mm10(7.5 or 5) mm55 mm
Thickness Of Impact Knife	16 mm
Cooling Way	Liquid Nitrogen Refrigeration
Capacity Of Sample Box	6 PCS
