Product Description

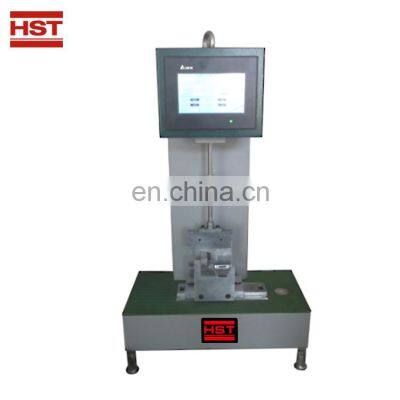

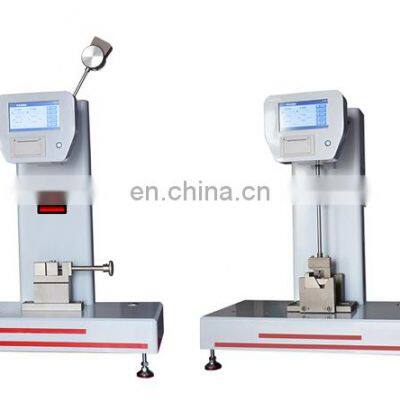

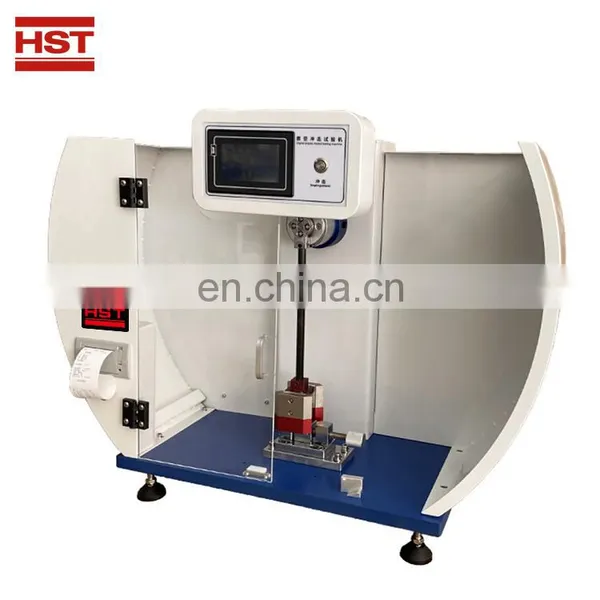

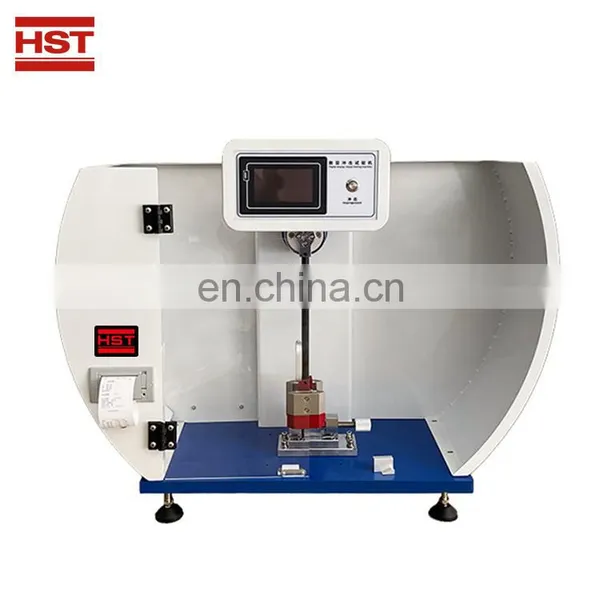

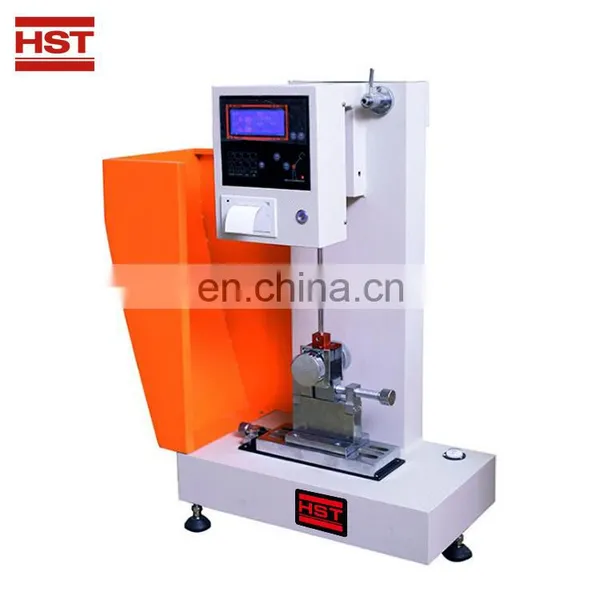

XJU digital display nylon izod impact testing machine/ charpy impact tester for plastic
Application:
It is mainly used to measure the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, and electrical insulating materials. Ideal testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, professional manufacturer laboratories and other units.
Features
It is a simple structure, convenient operation, accurate and reliable data.
Original Taiwan Delta touch screen display, PLC control,
With a micro printer
With USB connect to the computer directly.
measuring instrument, which accurately transmits the shape of the sample to the host through the notch depth measuring instrument, and saves the data to improve the accuracy of the experimental results.
Standards compliant.
|
Standard |
Standard name |
|
GB/T 1843—2008 |
"Plastic Cantilever Beam Impact Test Method" |
|
ISO 180-1993 |
"Determination of Impact Strength of Plastic Cantilever Beams" |
|
GB/T 2611-2007 |
"General Technical Requirements for Testing Machines" |
|
JB/T 8761-1998 |
"Plastic Cantilever Beam Impact Testing Machine" |
Technical Parameters:
|
Model |
XJUD-22T |
XJUD-5.5T |
|
Impact energy |
11J,22J |
2.75J,5.5J |
|
Impact velocity |
3.5m/s |
|
|
Pendulum advance angle |
1500 |
|
|
Distance from impact blade to above jaw |
22mm±0.2mm |
|
|
Strike center distance |
335mm |
|
|
Blade radius |
R=0.8mm±0.2mm |
|
|
Energy loss |
11J <0.05J;22J <0.10J; |
1.0J <0.02J;2.75J <0.03J;5.5J <0.03J |
|
Minimum resolution |
0.001J |
|
|
Instrument size |
L*W*H: 700mm×350mm×850mm |
|
|
Required space |
Fore and aft distance:0.4m, Left and right distance:1.5m,Upper distance:1.5m |
|
|
power supply |
100VA 220VAC 50HZ |
|
1) Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
2) Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3) Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
4) Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
