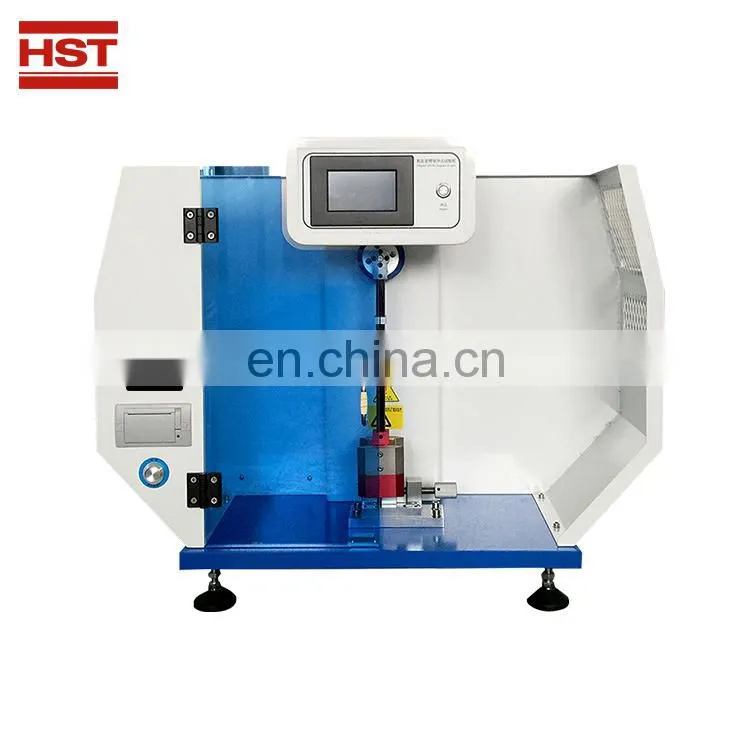

Touch Screen Digital charpy izod impact testing machine
Application:
This Impact Test is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.
Specification:
|
Item |
Charpy Impact |
|
|
1J, 2J, 4J, 5J |
1J, 2.75J, 5.5J |
|
|
Pendulum angle |
150° |
|
|
Blade angle |
30° |
|
|
Blade front angle |
5° |
|
|
Blade back angle |
10° |
|
|
Impact speed |
2.9m/s |
3.5m/s |
|
Impact center distance |
221mm |
335mm |
|
R=2mm±0.5mm |
R=0.8mm±0.2mm |
|
|
Energy loss |
0.5J ≤4.0J 1.0J ≤2.0J 2.0J ≤1.0J ≥4.0J≤0.5J |
2.75J ≤0.06J 5.5J ≤0.12J |
|
Pendulum torque |
Pd1J=0.53590Nm Pd2J=1.07180Nm Pd4J=2.14359Nm Pd5J=2.67949Nm |
Pd2.75J=1.47372Nm Pd5.5J=2.94744Nm |
|
Print out |
Capacity. Angle, energy, etc. |
|
|
Power supply |
AC220V±10% 50HZ |
|

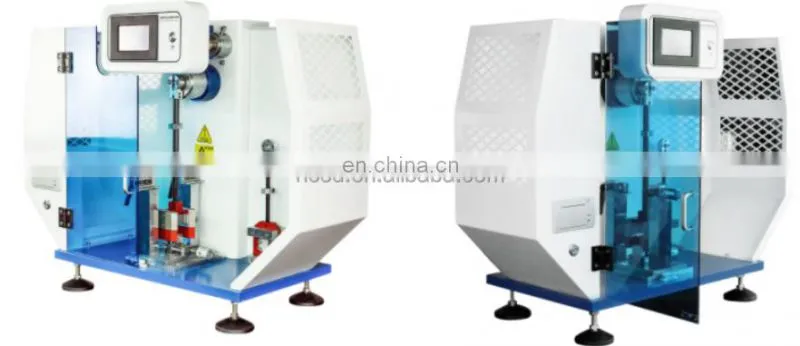

Plastic Material LCD Digital izod charpy impact testing machine
