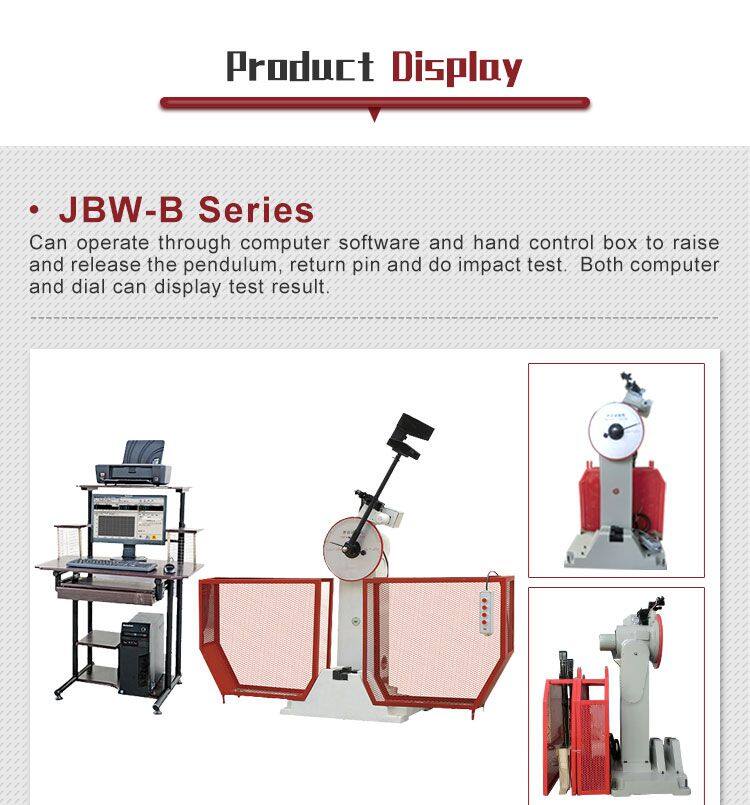

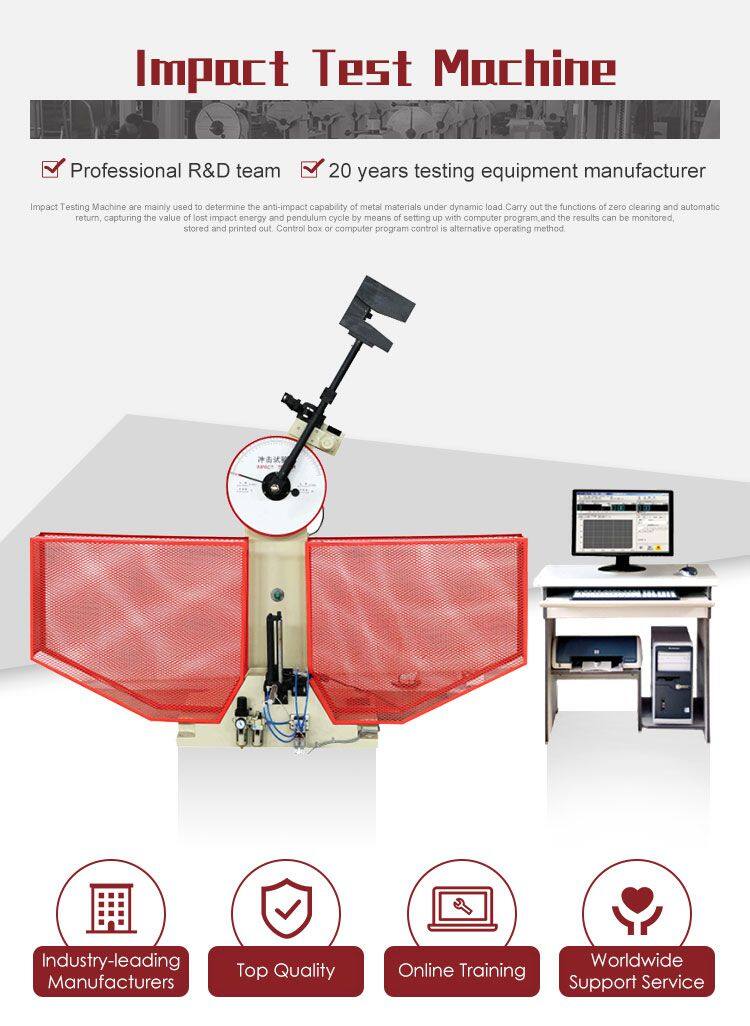

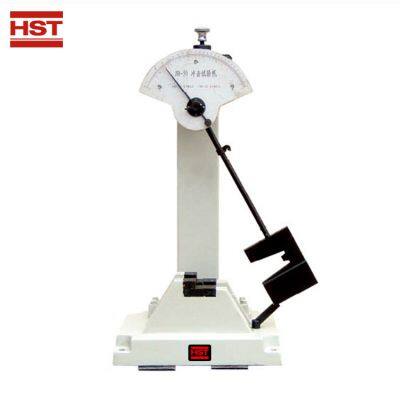

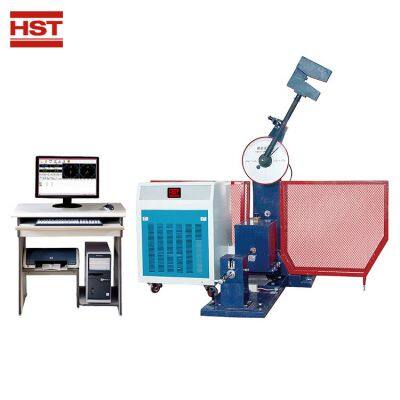

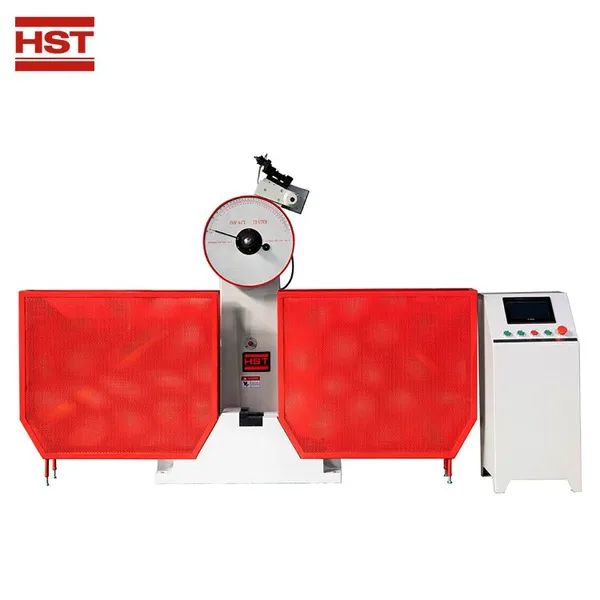

Home > Instruments & Meters > Test Instrument > Test Machine > HST 300J/500J Impact Testing Machine/charpy Pendulum Impact Tester
US$ 3300 - 4800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
HST OR OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST ISO179 Plastic Digital Izod Charpy Pendulum Testing Machine/Plastic Impact TesterNegotiableMOQ: 1 -
HST JB-300B JB-500B 300J 500J Dial Display Pendulum Charpy Impact Tester Metal Impacting Testing MachineNegotiableMOQ: 1
-
HST JB Series JBS Series JBW Series Pendulum Impact Testing MachineNegotiableMOQ: 1
-
HST JB-300B(300J) Pendulum Semiautomatic Impact Testing MachineNegotiableMOQ: 1
-
HST Metallic Material Charpy Testing Machine Pendulum Impact Test, Izod Impact TesterNegotiableMOQ: 1
Accuracy
1
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM
power
2.5
Protection Class
IP65
Voltage
380 V, 220 V
warranty
1 YEAR
Standard
GB/T,ISO,GB,ASTM etc
Test Material:
Metal
Impact Range:
150J 300J 500J
Model:
Charpy Impact Testing Machine
Data Display:
Digital Meter
Protection
Protection Hood
Temperature:
Room ~ -190℃
Pendulum:
Manual Lifting, Automatic Going Down
Swing Angle:
150°
Sample
10x10x55mm with V notch

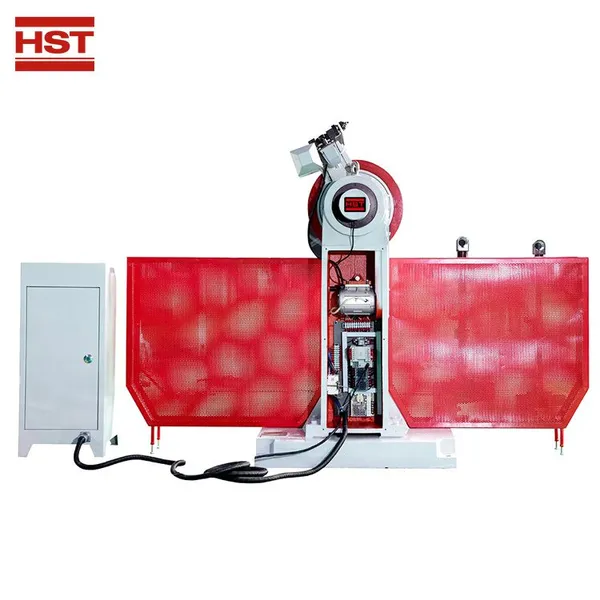

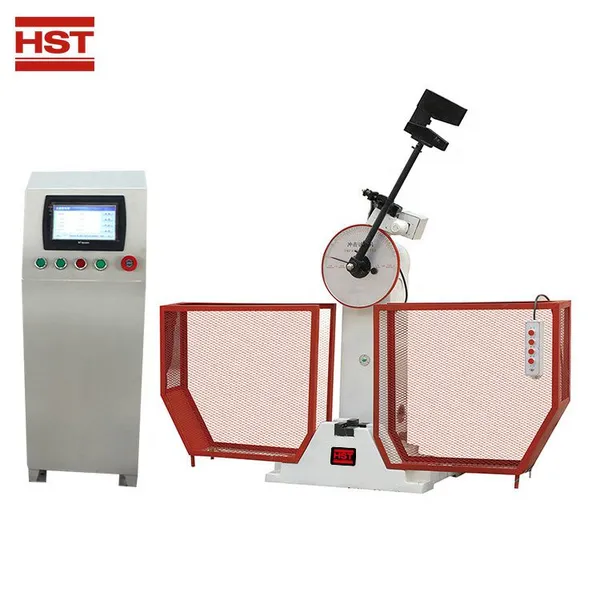

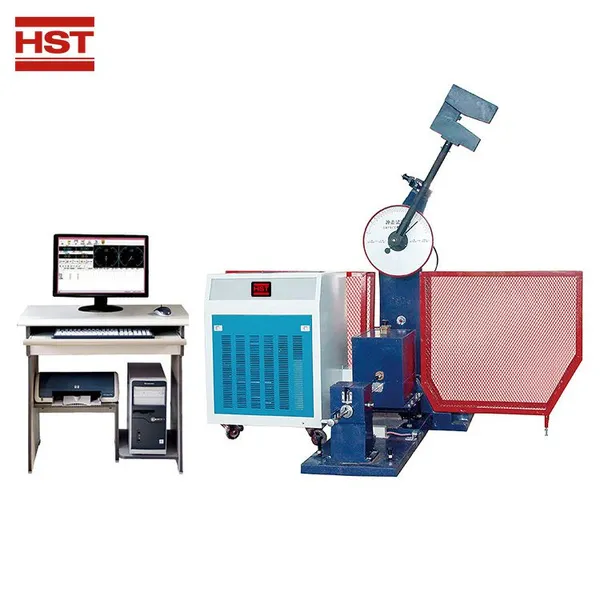

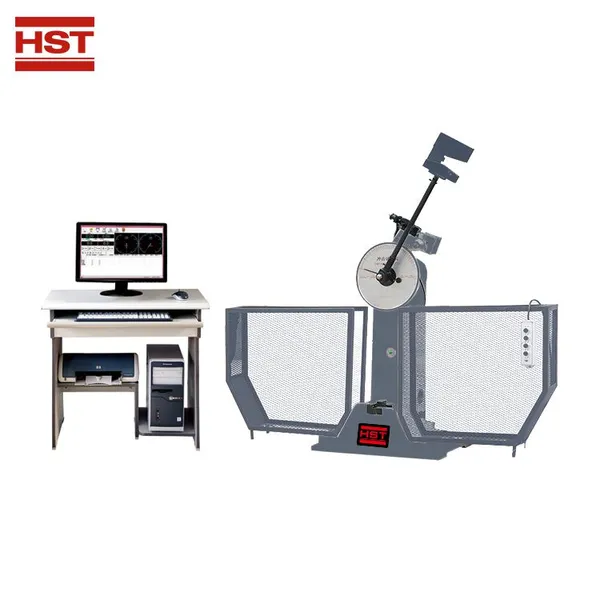

HST 300J/500J Impact testing machine/charpy pendulum impact tester
Product Description
| Production Description |
| Specifications | JB-300B/JBS-300B/JBW-300B | JB-500B/JBS-500B/JBW-500B | |
| Type | TypeB | ||
| Impactenergy(J) | 150,300 | 250,500 | |
| Impactvelocity(m/s) | 5.2 | 5.4 | |
| Raisedangle | 150º | ||
| Standardspan(mm) | 40+0.2mm | ||
| Distancebetweenpendulumrotating | 750 | ||
| Roundangleofjaws(mm) | R1-1.5 | ||
| Roundangleofstrikingedge(mm) | R2-2.5orR8±0.05 | ||
| Sizeofspecimen(mm) | 10x10(7.5/5)x55 | ||
| Powersupply | 3phs,380V,50Hz/60HzorSpecifiedbyusers | ||
| Dimensions(mm) | 2124x600x1340 | 2144x736x1390 | |
| Grossweight(KG) | 550 | 750 | |
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
1Yr
Business Type
Manufacturer
Year Established
2009
Factory Size
1,000-3,000 square meters
Annual Export Value
US$10 Million - US$50 Million
You May Also Like
-
HST Metal Machine/impact Tester Price/izod Charpy Impact Testing MachineNegotiableMOQ: 1
-
HST JBW-450C Microcomputer Control Pendulum Impact Testing Machine Charpy Impact Tester for MetalNegotiableMOQ: 1
-

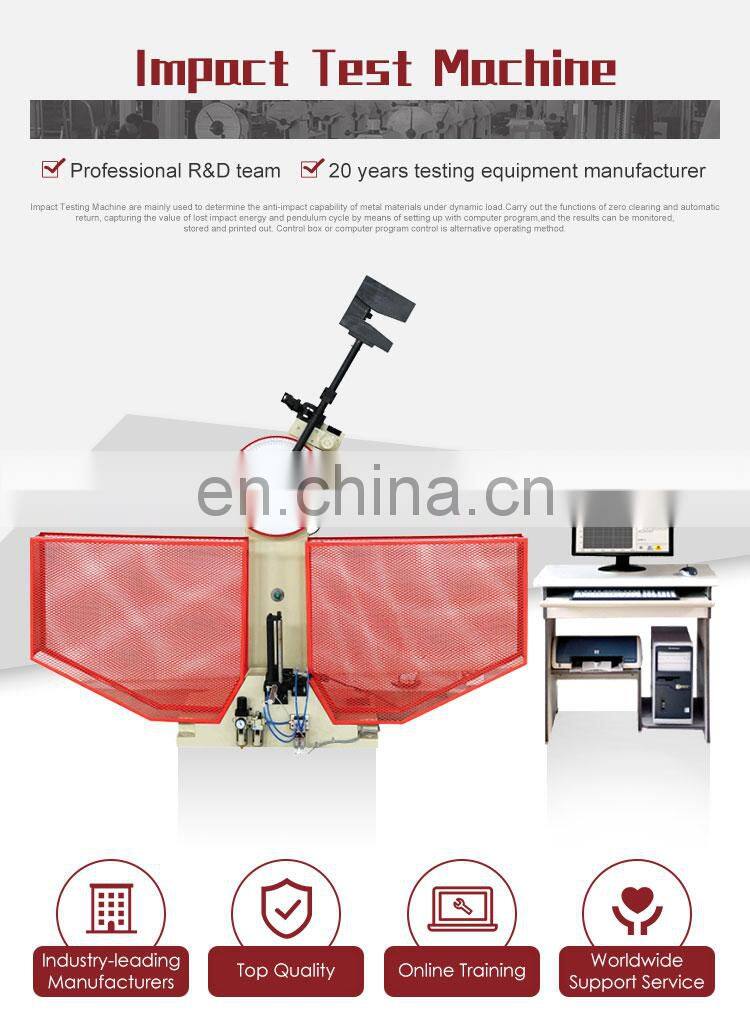

HST 300J/500J/800J Impact Testing Machine/charpy Pendulum Impact Tester for Metal Charpy V NotchUS$ 18187.55 - 20986.71MOQ: 1 Set
-
