Home > Instruments & Meters > Test Instrument > Test Machine > 300/600/1000/2000KN Steel Strand Universal Tensile Traction Testing Machine Price/ Tensile/shear/bend/ Test Equipment Price

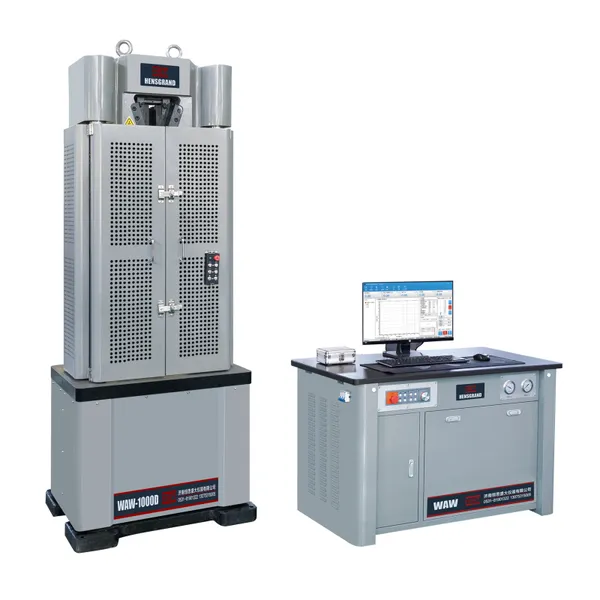

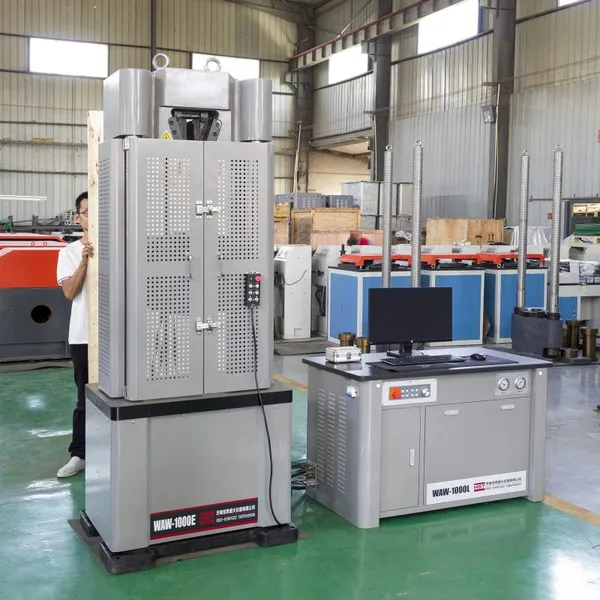

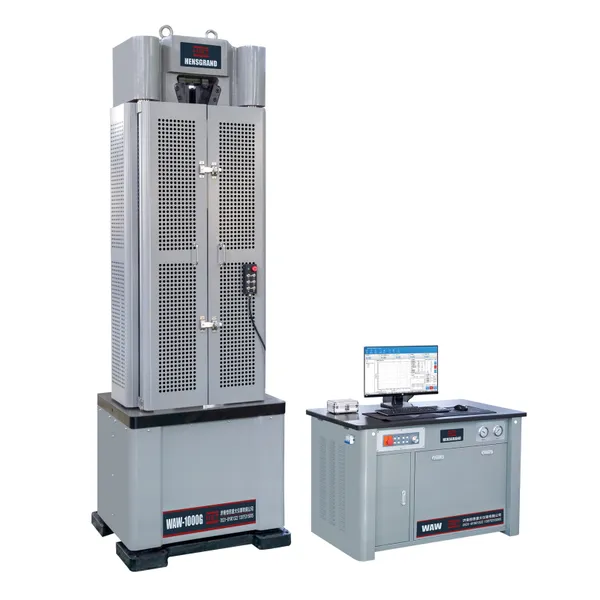

300/600/1000/2000KN Steel Strand Universal Tensile Traction Testing Machine Price/ Tensile/shear/bend/ Test Equipment Price
US$ 1000 - 3999
MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
HST OR OEM
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 2020 New Model 100ton Testing Instrument Tensile Testing Machine Universal Testing MachineNegotiableMOQ: 1 -
WAW-200D 200KN 20ton Rebar Computer Universal Testing MachineNegotiableMOQ: 1
-
ASTM Steel Tensile Test Mechanical Testing Equipment +Hydraulic Universal Testing MachineNegotiableMOQ: 1
-
WAW-1000D Computer 100 Ton Tensile Testing Machine HydraulicNegotiableMOQ: 1
-
WAW-1000D Computer 100 Ton Utm Machine PriceNegotiableMOQ: 1
brand name
HST OR OEM
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
Hydraulic
warranty
1 year
model number
WEW/WAW-300/600/1000/2000D
Max test force
300/600/1000/2000KN
structure
6 column
Load range
2%~100%FS
Load accuracy
≤±1%
Test force resolution value
0.01kN
Deformation Measurement Range
2%-100% of extensometer measurement range
Deformation indication error
± 1%of indicating value
Max.piston stroke
250mm
Displacement Indication Error
1% of indicating value
Displacement Resolution
0.01mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-500D WAW-600D |
WAW-1000D/E |
WAW-1200D |
WAW-2000E |
|||||
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
||||||||||
Number of Screw drivers |
4 |
||||||||||
Max. Load(KN) |
100 |
200 /300 |
500/600 |
1000 |
1200 |
2000 |
|||||
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||||
Load Range |
2%~100%FS |
||||||||||
Load Resolution |
1/300000 |
||||||||||
Deformation Measurement Range |
2%~100%FS |
||||||||||
Deformation Accuracy |
≤± 1% |
||||||||||
Displacement Resolution |
0.01mm |
||||||||||
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||||
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||||
Displacement Error |
≤±0.5% |
||||||||||
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||||
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||||
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||||
Column Effective Spacing(mm) |
490 |
490 |
500 |
560/580 |
610 |
800 |
|||||
Clamping Method |
Hydraulic Automatic Clamp |
||||||||||
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||||
Compression Plate Size |
Φ 160mm |
||||||||||
Bending Roller Distance |
450mm |
||||||||||
Width Of Bending Rollers |
120mm |
||||||||||
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||||
