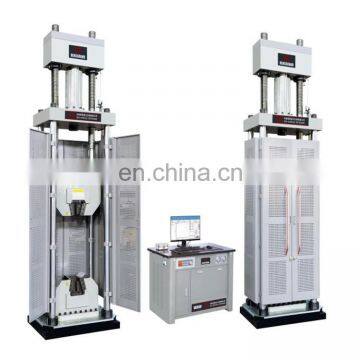

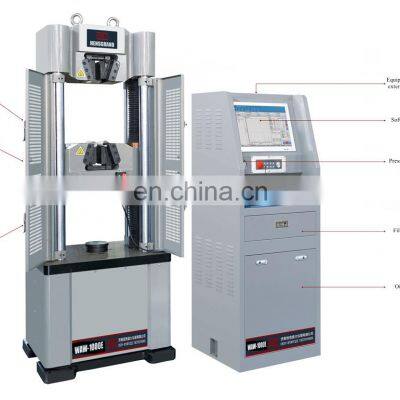

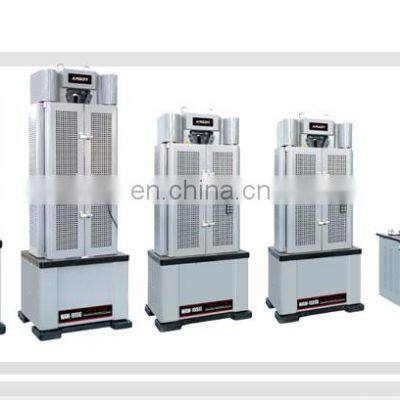

Sling tensile testing machine 200tons/hydraulic universal tension tester

Model

WEW-100D

WEW-300D

WEW-600D

WEW-1000D

WEW-2000D

Structure

6 column

Control mode

loading process manual control,computer automatic data dealing

Max. Load

100KN

300KN

600KN

1000KN

2000KN

Tension test space

650mm

750mm

Compression Test Space

500mm

600mm

Round specimen clamping diameter (mm)

Φ4-Φ21

Φ10-Φ32

Φ13-Φ40

Φ13-Φ50

Φ15-Φ70

Flat specimen clamping thickness (mm)

0-15mm

0-30mm

0-60mm

Flat specimen clamping width

70mm

75mm

85mm

Compression plate size

φ160mm/φ240mm

Φ240mm

Bending roller distance

450mm

Width of bending rollers

120mm

160mm

Load accuracy

≤±1% or ≤± 0.5%

Load range

2%-100%of Full Scale or 0.4%-100% of Full Scale

Load resolution

1/300000 of Full Scale

Deformation Measurement Range

2%~100% of Full Scale

Deformation accuracy

≤±1% or ± 0.5%

Displacement resolution

0.01mm

Displacement accuracy

≤±0.5%

Piston stroke

250mm

Lifting speed of mobile beams

150mm/min

Clamping method

Hydraulic clamp

Power supply

3-phase, AC380V, 50Hz(can be customized)
