Help CenterBiaxial Tensile Testing Machine Bidirectional Tensile Testing Machine
Related Products
-
Automatic 300KN 600KN 1000kn Hydraulic Tensile Testing MachineNegotiableMOQ: 1 -
2020 New Model ASTM CE 200ton Utm Steel Bar Steel Strand Tensile Testing MachineNegotiableMOQ: 1
-
UTM 300/600/1000KN200 Ton Computerized ServoControl Tensile Test Machine Hydraulic Universal Test Machine SupplierNegotiableMOQ: 1
-
600KN Computer Control Servo Hydraulic Universal Testing Machine+hydraulic Pump Test BenchNegotiableMOQ: 1
-
WAW-500D Computer Hydraulic Utm 500t Tensile Testing MachineNegotiableMOQ: 1
2020 New model
Computer Controlled Electro-hydraulic Servo Torsion Fatigue Testing Machine

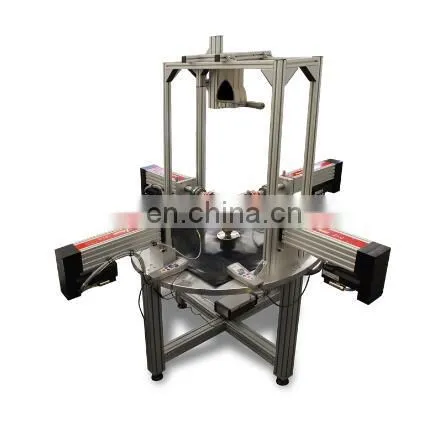

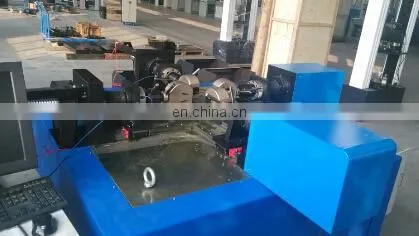

The biaxial tensile testing machine takes electronic servo control technology as the core, and can carry out two-way tensile tests of various metallic and non-metallic materials.
The main technical units of the system include: a host, accessories, wire and cable, a set of necessary tools and technical information.
The main frame is made of integral steel plate, which is beautiful and durable.
The bidirectional spiral precision ball screw pair is used to ensure that the center of the sample does not change during bidirectional stretching.
The attachment can be configured according to user requirements, and the wedge-shaped extension attachment can be selected for the tensile test. The fixture can be customized according to user samples
|
Longitudinal maximum test force |
100KN |
|
Lateral maximum test force |
100KN |
|
level of accuracy |
Class 1 |
|
Test force value allowable error limit |
Within ± 1% of indicated value |
|
Load measurement range |
2% -100% FS of full scale |
|
Force resolution |
1/200000 of the maximum test force |
|
Extensometer gauge length |
50 mm |
|
Maximum deformation of extensometer |
10 mm |
|
Deformation indication error limit |
Within ± 0.5% of indicated value |
|
Displacement indication error |
Within ± 1% of indicated value |
|
Displacement minimum resolution |
0.01mm |
|
Force control rate adjustment range |
0.05-5% FS / S |
|
Relative error of force control rate |
Within ± 0.5% of set value |
