Jinan Hensgrand HST Brand Mechanical Material Universal Testing Machine manfacturer

WDS Series Jinan Hensgrand HST Brand Mechanical Material Universal Testing Machine ManufacturerWDS Series Jinan Hensgrand HST Brand Mechanical Material Universal Testing Machine ManufacturerWDS Series Jinan Hensgrand HST Brand Mechanical Material Universal Testing Machine Manufacturer

1. Application:

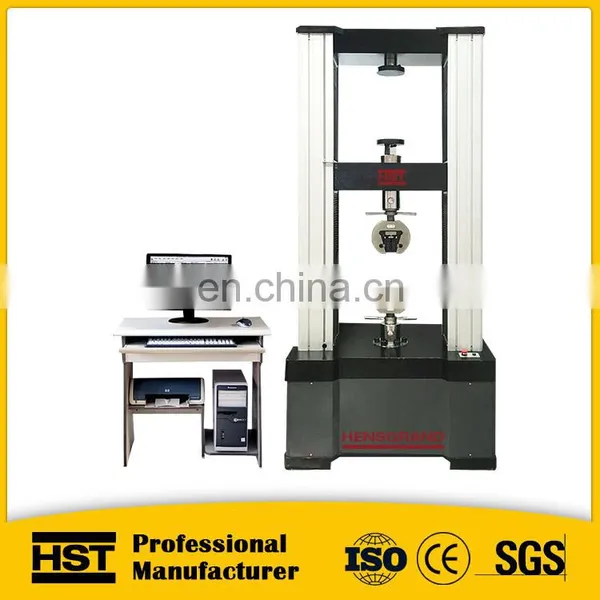

WDS series digital display universal tensile testing machine is designed and manufactured

according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in corresponding industries, research and development, test institutes and training centers etc.

2. Features:

2.1 Automatic stop: After the sample broken, automatic stop.

2. 2 Display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.

2.3 Automatic return: automatic return to initial position when testing finished.

2.4. Limiting protection: Program control and Mechanical limiting protection.

2.5 High accuracy photoelectric encoder to measure the displacement

2.6 High accuracy load cell to measure the test load

2.7 Ball screw no backlash to guarantee the low noise and high driving efficiency

2.8 High accuracy servo motor to control test speed

2.9 Adopt reliable, durable and high accuracy digital electronic device

2.10 Can built-in multiple load sensor control channel

2.11 Thousands of test fixture can be used according to different test request

2.12 Micro printer optional, can realize testing data print

3. Standard:

ASTM E4, ISO7500-1. EN10002-2, BS1610, DIN51221

Technical parameter



4. Main Specifications:

Model

WDS-10

WDS-20

WDS-30

WDS-50

WDS-

100

WDS-200

WDS-300

Max. load

10kN

20kN

30kN

50kN

100kN

200kN

300kN

Tensile space

800mm

700mm

700mm

550mm

Compression space

800mm

700mm

700mm

550mm

Test width

400mm

500mm

550mm

600mm

Structure

Four-column floor type, (upper is compression and lower is tensile)

Control method

Single chip control

Load accuracy

1 class

Load range

2%~100%F·S

Resolution

0.04um

Measuring range of deformation

2%-100%

Testing speed

1-500mm/min(can be customized)

Power supply

AC220/380V±10%,50Hz (can be customized)

Grips

Manual Wedge type, and other grips as consumer’s demand

Dimension

1000x550x2076 mm

Weight

160kg

460kg
