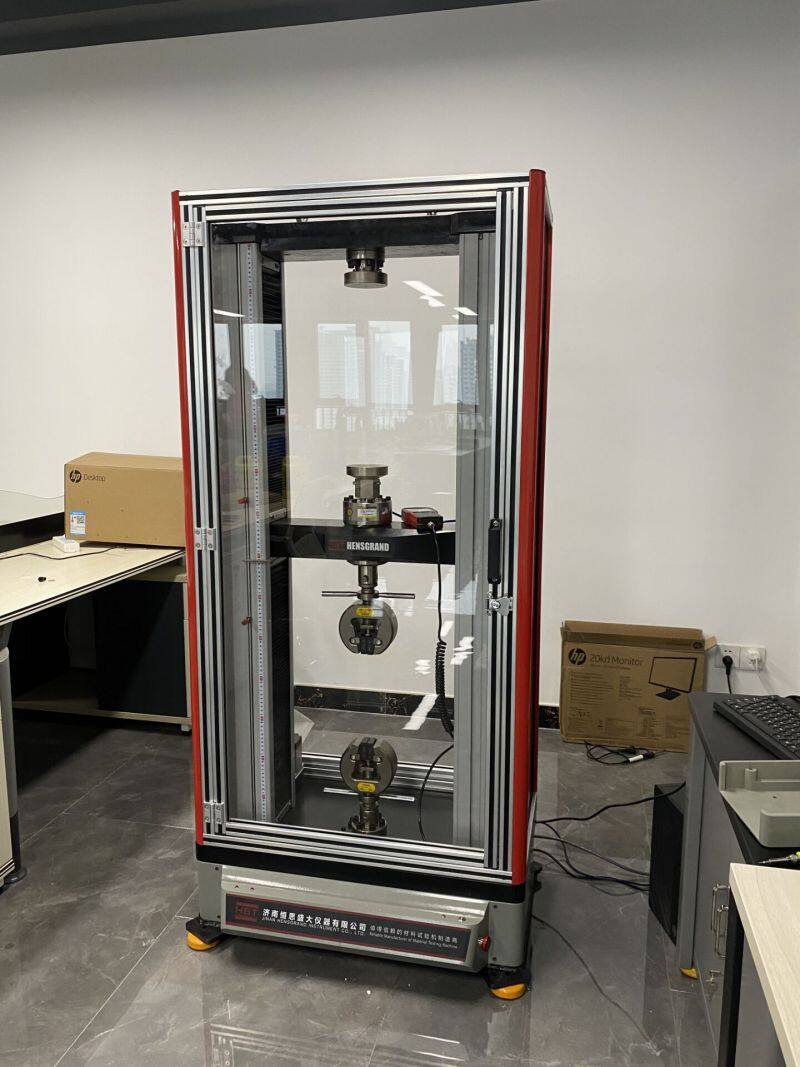

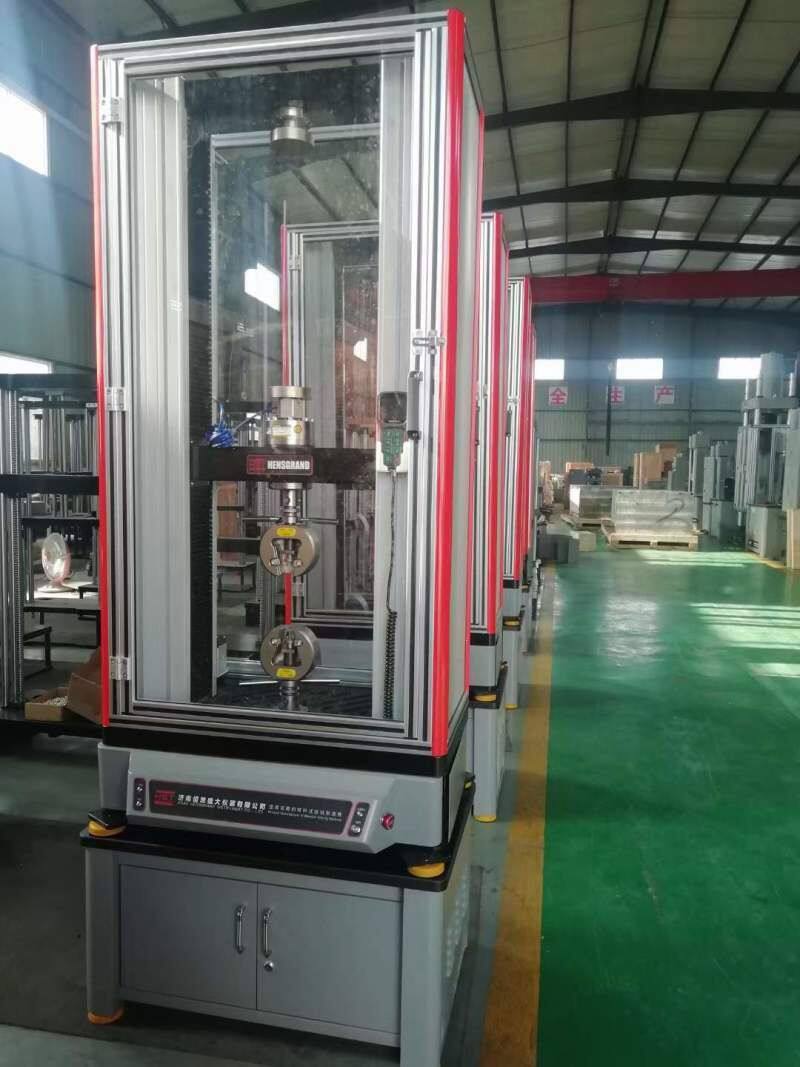

WDW series Microcomputer Electronic Universal Testing Machine
1. Application:
WDW_E series computerized electronic universal testing machines are designed and manufacturedaccording to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubberplastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Main Specifications:
|
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-300kN |
|||||
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
|
Crosshead-Table distance |
1140 |
|
|
|
|
|||||
|
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||||
|
Conformity |
ISO 9000 and CE |
|||||||||
|
Force transducer |
||||||||||
|
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
|
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
|
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
|
Load resolution |
1/500000 |
|||||||||
|
Displacement transducer |
||||||||||
|
Resolution of deformation |
0.04um |
|||||||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
|
Resolution of displacement |
0.01mm |
|||||||||
|
Drive system |
||||||||||
|
Motor |
AC servo-motor |
|||||||||
|
Test speed(mm/min) Stepless |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-200/500 |
|||||
|
Speed accuracy |
±0.1% |
|||||||||
|
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||||
