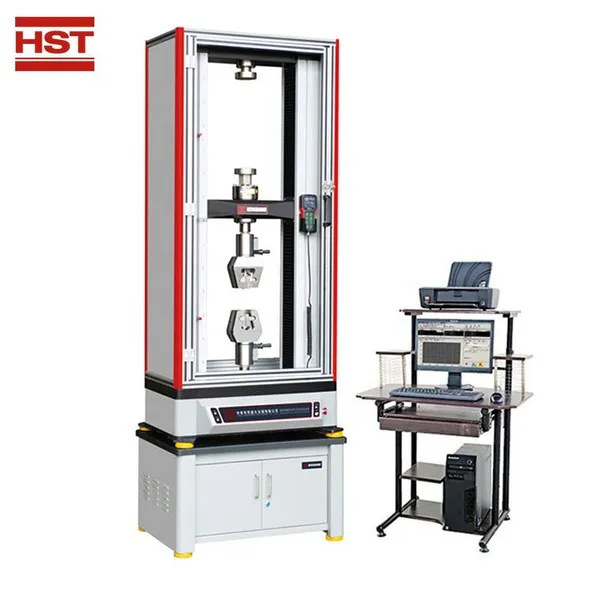

HST Universal testing machine 30KN 3Ton tensile and compression tester 30 KN UTM Double column
1 Application:
WDW series computerized electronic universal testing machines are designed and manufacture according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2 speicification
|
Model |
WDW-50 |
WDW-50E |
WDW-100 |
WDW-100E |
|
Max. Load(KN) |
50 |
50 |
100 |
100 |
|
Load accuracy |
Class 1 |
Class 0.5 |
Class 1 |
Class 0.5 |
|
Load range |
2%~100%F·S |
0.2%~100%F·S |
2%~100%F·S |
0.2%~100%F·S |
|
Structure |
Four-column floor or desk model, (upper is compression and lower is tensile) |
|||
|
Cover |
All aluminum alloy |
|||
|
Control method |
Computer control |
|||
|
Load resolution |
1/300000 |
|||
|
Rang of deformation |
4%-100%FS |
|||
|
Resolution of deformation |
0.04um |
|||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||
|
Resolution of displacement |
0.01mm |
|||
|
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
|||
|
Tensile space(mm) |
700(can be customized) |
|||
|
Compression space(mm) |
700(can be customized) |
|||
|
Test width(mm) |
500(can be customized) |
550(can be customized) |
||
|
Workbench thickness(mm) |
58 |
68 |
||
|
Base height(mm) |
435 |
460 |
||
|
Working environment |
Room temperature 10℃~30℃,relative humidity≤80% |
|||
|
Power supply |
AC220V±10%,50Hz/60Hz(can be customized) |
|||
|
Grips |
Wedge type, plate type and other grips as consumer's demand
|
|||
|
Dimension(mm) |
850*480*1865 |
1000*550*2076 |
||
