TEST MACHINE Video Extensometer
1. Application
Video Extensometer is an optical non-contact type three-dimentional deformation measuring
system based on DIC(Digital Image Correlation)measurement method. It can accurately measure the
2D & 3D strain property of materials and components. Meanwhile, it can also be applied for testing and
displacement measurement of 3D Profile-Displacement-Deformation of various metals and nonmetals,
under static & dynamic deformation tests.
2.Specifications
|
Parameters |
Range* |
Typical system |
|
Classification to ISO 9513 |
Class A, B-1, B-2, C, D, E |
Class 1 |
|
FOV |
2-2000mm |
60mm |
|
Gage length |
0.01-800 % |
0.01-10 % |
|
Resolution |
0.1-50** um |
1um
|
|
Analog output |
10-16 bit |
4V/14 bit |
|
Digital output |
RS232/422/485, TCP/IP |
TCP/IP |
|
Test rig connectivity |
Connect to all kinds test rigs |
Connect to all kinds test rigs |
|
Camera resolution |
0.3-29 MPx |
1.2 MPx |
|
Data rate |
0.1-10 000 Hz |
50 Hz |
For more informations, please help contact Sunny.
1.Could be increased by different optical system

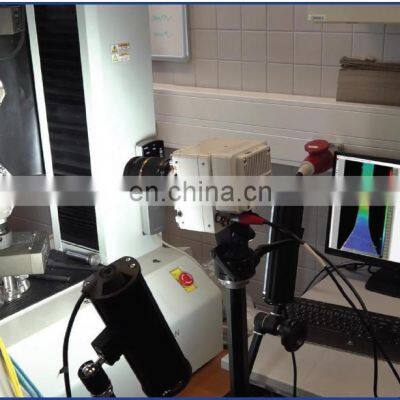

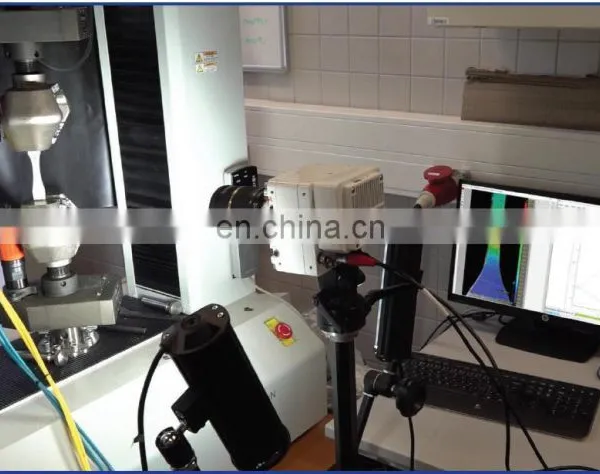

2.Tensile test for bar specimen at 1000℃

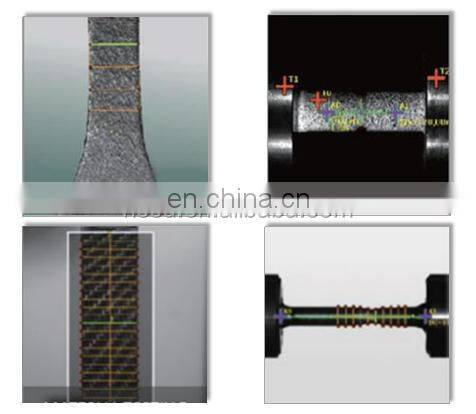

3.Tensile test for smaller metal sheet with 12mm gauge length
4.Tensile test for film specimen
