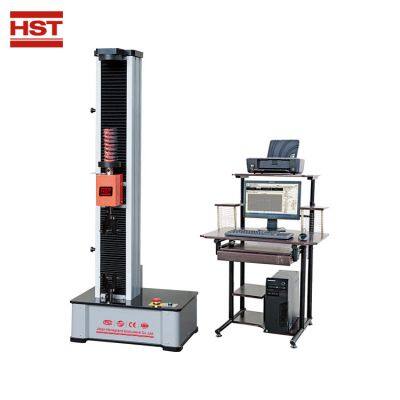

HST WDS-5 5kN Single Column Rubber Universal Tension Testing Machine
- 1000 per Month
- T/T Credit Card
- HST WDS-5 1kn 5kn Single Column UTM Electromechanical Electronic Tensile Strength Universal Testing machine
- 10kg electronic utm machine jinan
- 150 kg force paper tensile tester wdw 5kn utm
- WDW-10E 0.5 class English Software wire universal testing machine 10kn
- Steel wire 50 kn tensile 10ton electronic universal testing machine
- 5kn testing for plastic rope tensile test machine
Product Description
HST WD-5 5kN Single Column Rubber Universal Tension Testing Machine
1. Application:
Electronic Single Cotton Fiber Tensile Strength Tester is designed and manufactured
according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic,spring, textile, and components testing. Widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Features:
2.1 Automatic stop: After the sample broken, automatic stop.
2. 2 Display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
2.3 Automatic return: automatic return to initial position when testing finished.
2.4 Limiting protection: Program control and Mechanical limiting protection.
2.5 High accuracy photoelectric encoder to measure the displacement
2.6 High accuracy load cell to measure the test load
2.7 Ball screw no backlash to guarantee the low noise and high driving efficiency
2.8 High accuracy servo motor to control test speed
2.9 Adopt reliable, durable and high accuracy digital electronic device
2.10 Can built-in multiple load sensor control channel
2.11 Thousands of test fixture can be used according to different test request
2.12 Micro printer optional, can realize testing data print
3. Main Specifications:
Model |
WDS-02 |
WDS-05 |
WDS-1 |
WDS-2 |
WDS-3 |
WDS-5 |
Max. Load |
0.2kN 20kgf 44.8lbf |
0.5kN 50kgf 112lbf |
1kN 100kgf 224lbf |
2kN 200kgf 448lbf |
3kN 300kgf 672lbf |
5kN 500kgf 1120lbf |
Load accuracy |
≤±1% |
|||||
Load range |
2%-100% of full scale |
|||||
Disp. resolution |
0.01mm |
|||||
Test speed |
0.05-500mm/min|0.001968-19.685in/min |
|||||
Tensile space |
750mm|30in |
|||||
Dimension |
550×350×1580mm |
|||||
Power supply |
220V, 1ph, 0.5KW |
|||||
Weight (kg) |
150KG|330lb |
