Low Price Manual Digital Measuring mpa Machine/Universal Tensile Strength Vehicle Testing Equipment

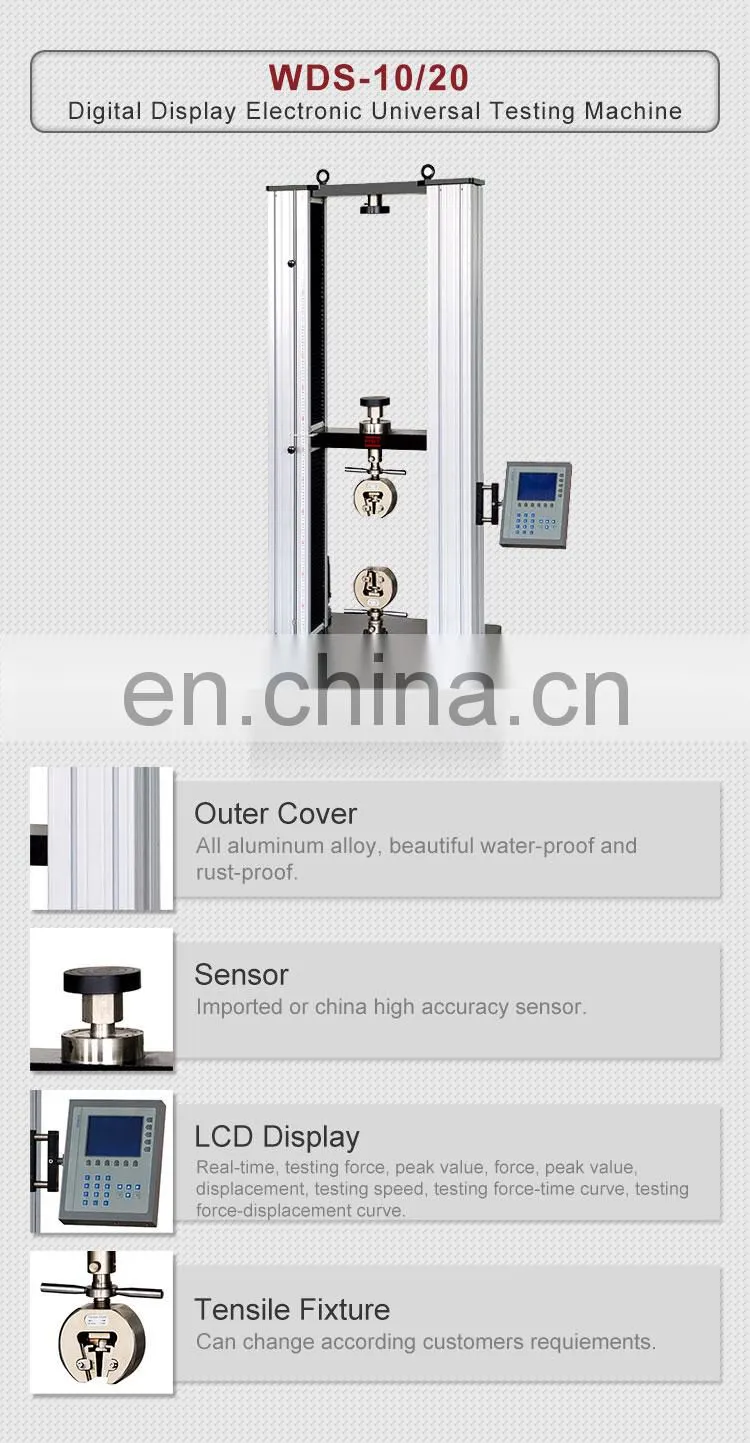

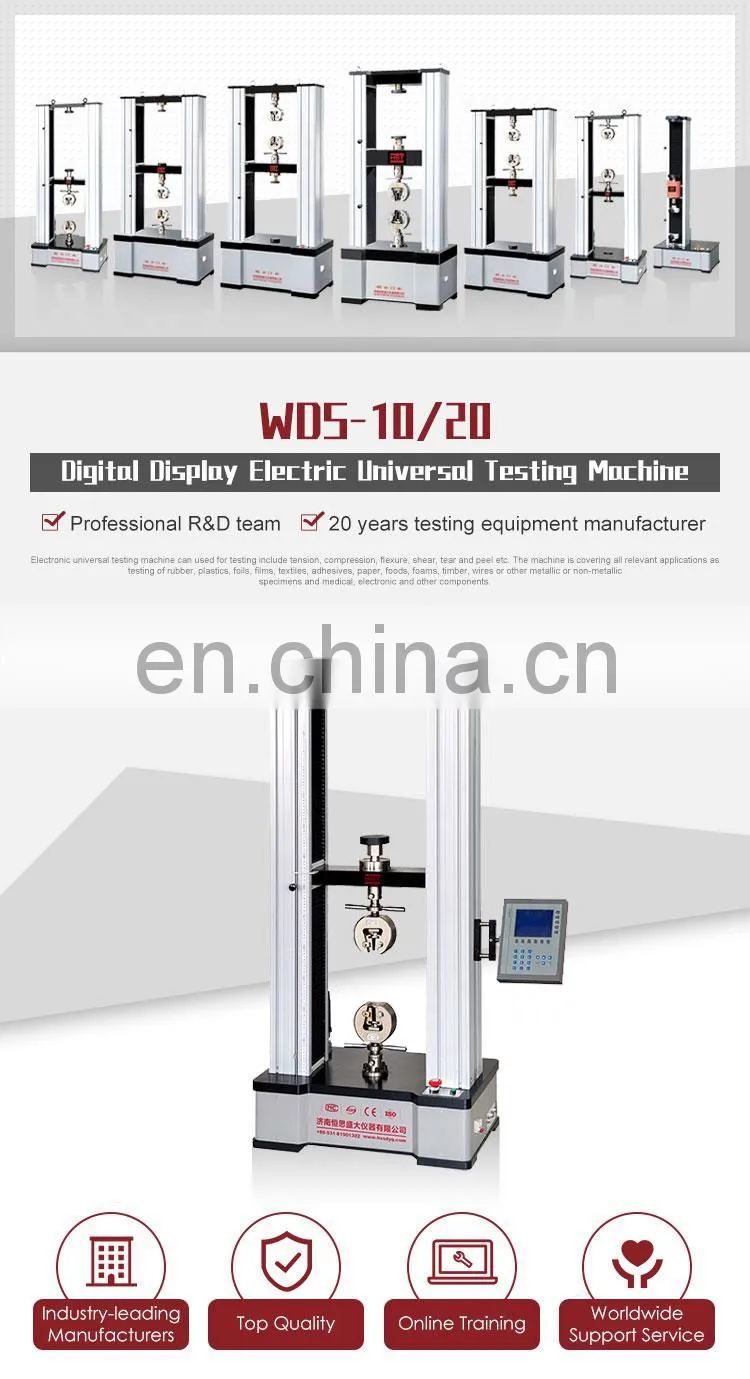

WDS series digital display electronic universal testing machines and WDW computer control universal testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.
Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Main Unit Feature:
1). Adopt floor structure,High Stiffness, lower for tensile, upper for compression,upper for tensile, lower for compression, double space. The beam is step less lifting.
2). Adopting ball screw drive, realize no clearance transmission,make sure the precision control of the test force and deformation speed.
3). The shiel plate with limit mechanism used to control the beam moving range, in order to avoid sensor damaged due to the moving distance is too large.
4).The table, moving beams is made of high quality precision machining steel plate , not only
reduce the vibration generated by specimen fracture, but also improve the stiffness.
5). Three columns of mandatory orientation, make the main unit rigidity much improved, to further ensure the repeatability of measurement.
6). Adopt bolt type grip installation, make the grip replace easier.
7). Adopt AC servo driver and AC servo motor, with stable performance,more reliable. Have over-current, over-voltage, over speed, overload protection device.
Digital display control universal Testing machine specification :
|
Model |
WDS-10kN |
WDS-20kN |
WDS-50kN |
WDS-100kN |
WDS-300kN |
|||||
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
|
Crosshead-Table distance |
1140 |
|
|
|
|
|||||
|
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||||
|
Conformity |
ISO 9000 and CE |
|||||||||
|
Force transducer |
||||||||||
|
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
|
Load range |
2%~100%F·S |
|||||||||
|
Load resolution |
1/500000 |
|||||||||
|
Displacement transducer |
||||||||||
|
Resolution of deformation |
0.04um |
|||||||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
|
Resolution of displacement |
0.01mm |
|||||||||
|
Drive system |
||||||||||
|
Motor |
AC servo-motor |
|||||||||
|
Test speed(mm/min) Stepless |
0.05-1000 |
0.05-1000 |
0.05-500 |
0.05-500 |
0.05-200/500 |
|||||
|
Speed accuracy |
±0.1% |
|||||||||
|
Power supply |
AC220V±10%,50Hz/60Hz (can be customized) |
|||||||||
