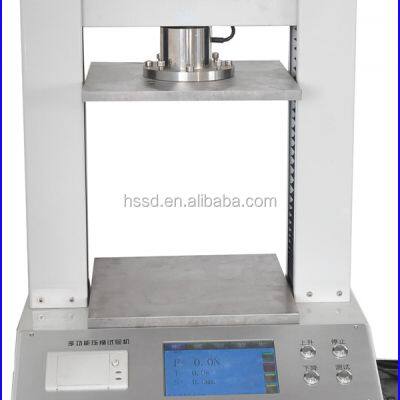

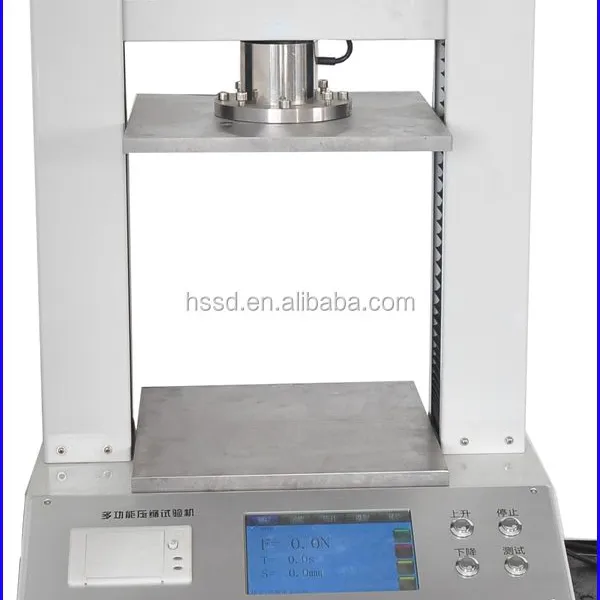

HS-YSJ5000 Digital Display Paper Core Tube Compression Tester
1.Introduction:
This instrument can be used to test RCT, ECT, FCT, PAT, CMT.It's the basic equipment to test the
compression strength.
It adopts modern mechanical design and Micro computer processing technology, Touch-screen interface
make it easy to operate.
ARM chip have a big processing data function,and test data can be got directly.
2.Standards:
ISO 12192 ISO 3037 ISO 7263 ISO 3035 ISO11093-9 ISO12048 GB/T 2679.8 GB/T 6546 GB/T 6548
GB/T 2679.6 GB/T22874 GB/T22906.9 GB/T4857.3 GB/T4857.4
3.Main Technical Parameters:
|
Power supply |
AC220V±10% 50HZ |
|
Press measuring range |
50~5000N |
|
Resolution |
1N |
|
Accuracy |
±1% |
|
variability |
≤1% |
|
Speed |
0~80mm/min |
|
Platen size |
300*300 |
|
Platen distance |
300mm |
|
Dimension |
570*480*800mm |
|
Net weight |
85kg |
