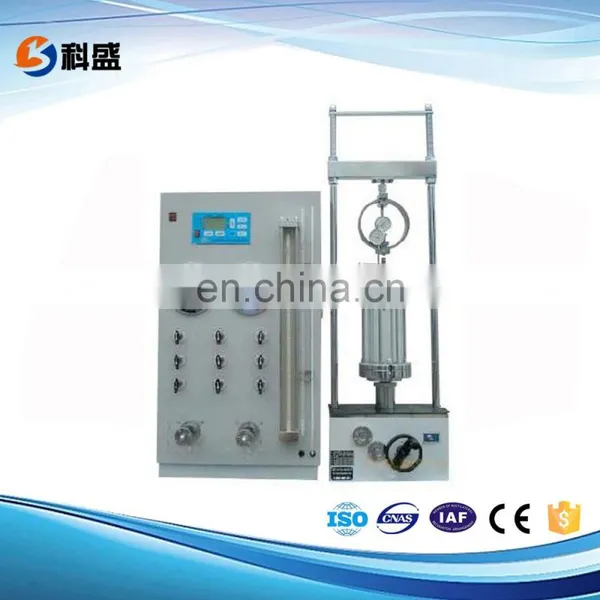

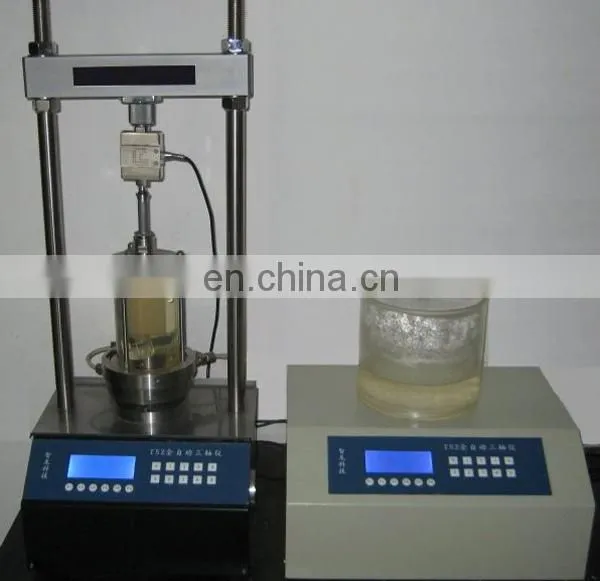

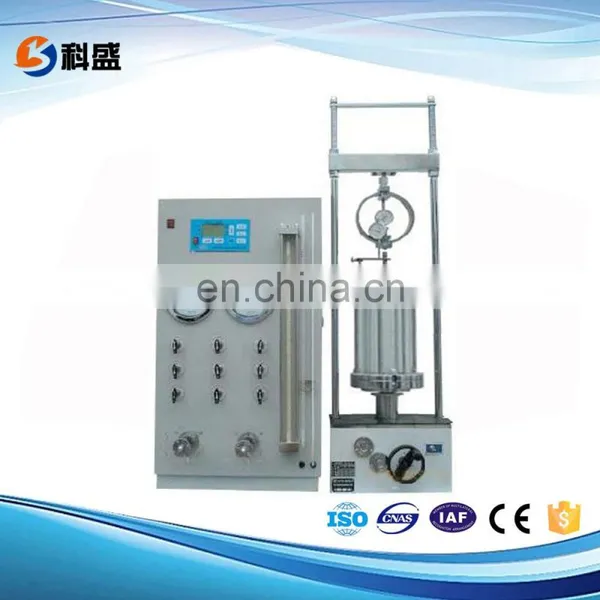

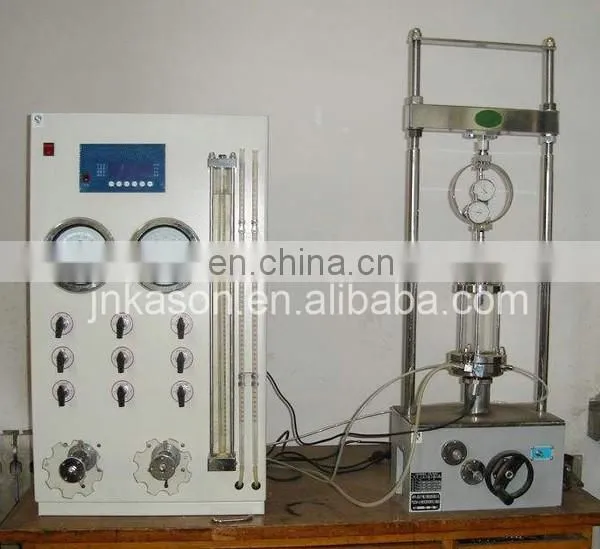

TSZ-60 60KN Strain Controlled Soil Triaxial Testing Apparatus
1. Application:
TSZ-60 60KN Strain Controlled Triaxial Testing Apparatus used to determine the shear strength
of the Max. Ambient Pressure of 2.0MPa, diameter Φ61.8x125mm, Φ101x200mm soil specimen.
It can perform unconsolidated-undrained shear test (UU), consolidated-undrained shear test (CU)
and consolidated-drained shear test (CD).
2. Main Specifications:
|
Model |
TSZ-6 |
|
Specimen Size |
Φ 39.1x80mm; Φ 61.8x125mm; Φ 101x200mm |
|
Vertical Capacity |
60 KN |
|
Maximum Capacity |
60 KN |
|
Strain Rate |
0.0024-4.5 mm/min Mechanical Speed 16 Files |
|
Worktable Trip |
0-100 mm |
|
Confining Pressure:(σ3) |
0-2 MPa Digital Control and LCD Display |
|
Back Pressure:(σb) |
0-1 Mpa Digital Control and LCD Display |
|
Pore Pressure:(u) |
0-2 Mpa |
|
Volume Deformation |
0-100 ml, Min. Division:0.1 ml |
3. The Packing Way Of Our Export Machines:
4. The Realistic Pictures Of Our Factory:
5. Our Process Of Foreign Trade:
6. Our company can also produce the customized testing machines as clients' requirements.
You can contact me as the below information.
