1000-5000Nm High Capacity Material Torsion/Torque/Twist Testing Machine

1000-5000Nm High Capacity Material Torsion/Torque/Twist Testing Machine

Product Description

Application:

This Series Torsion Testing Machine or Twist Testing Machine are used to determine the torsional properties of various
components – from fasteners to biomedical devices.
KS offers a full range of torsion load frames range from 100 to 30,000 Nm, higher capacity and other longer length models
are available upon request.

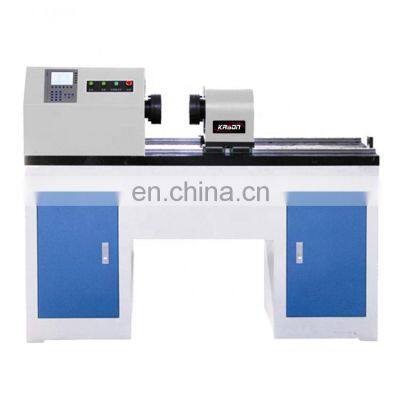

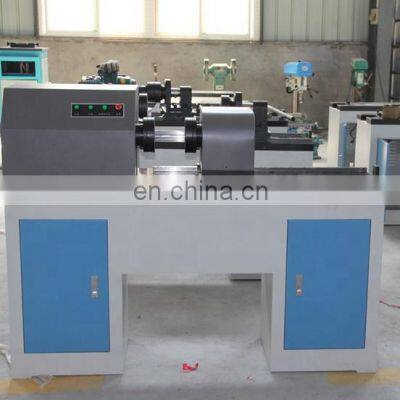

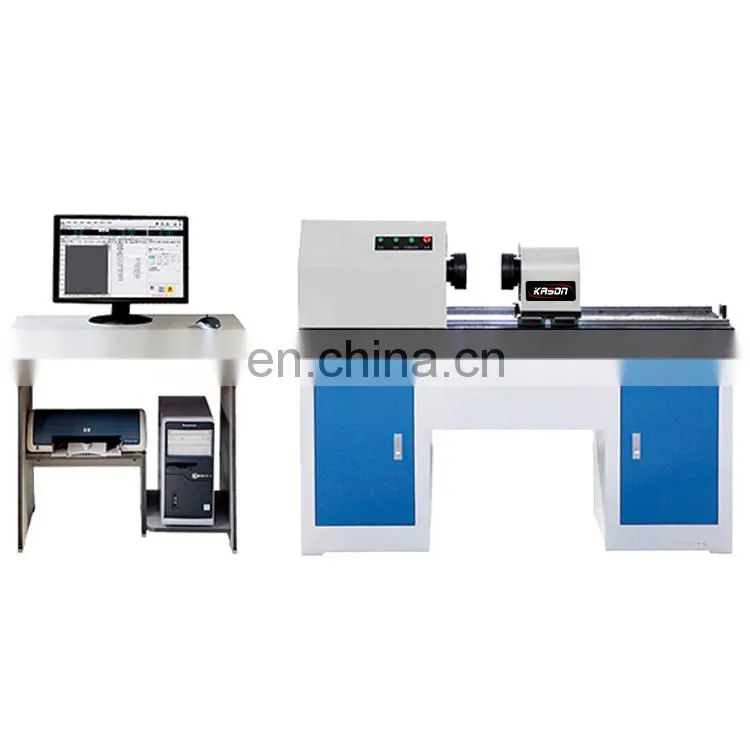

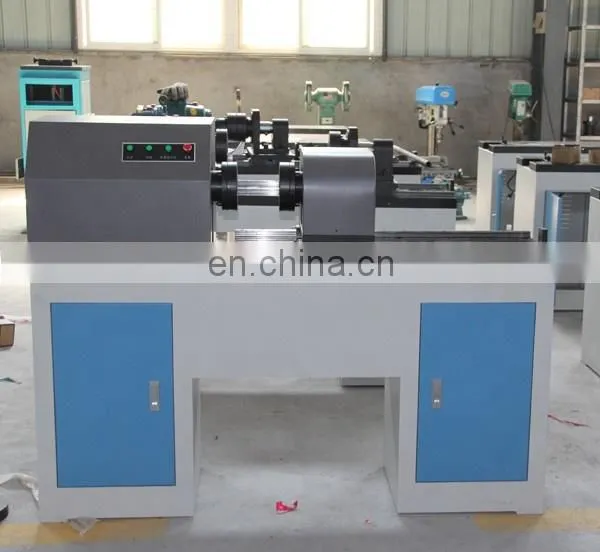

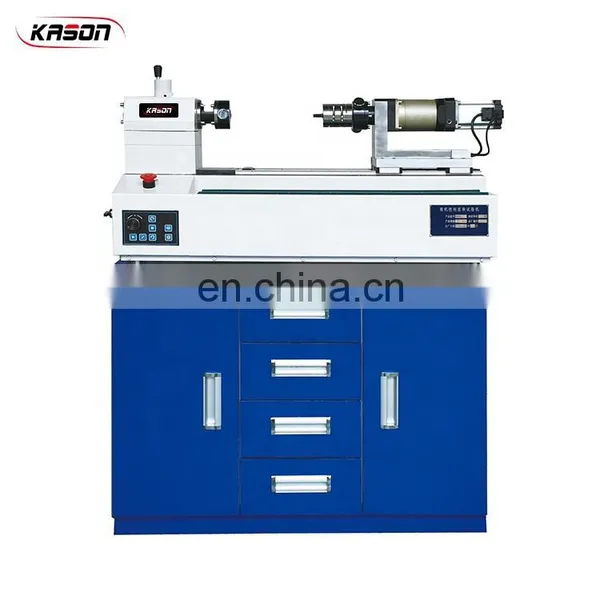

These uniquely superior torsion testers provide loading and weighing capabilities in both directions of rotation. This feature
makes it possible to conveniently determine not only the ultimate torque load of a specimen, but how that specimen behaves
under conditions of continuous or intermittent torque loading in both directions. Essentially, each torsion tester comprises a
variable speed drive loading system and a digital control and indicating system in a fixed unit.
The weighing head with its strain gage torque sensor is mounted on a moveable unit which can positioned
on the rails to accommodate specimes of varying lengths.
Standard
-GB/T 10128-1998 "Metal room temperature torsion test method"
-GB/T 10128-2007 “Metal room temperature torsion test method"
-ASTM E143: Standard Test Method for Shear Modulus at Room Temperature
-ASTM F543, ISO 6475: Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-
Mechanical requirements and test

Technical parameter



Model

NDS-50

NDW-50

NDS-100

NDW-100

NDS-200

NDW-200

NDS-500

NDW-500

NDS-1000

NDW-1000

NDS-2000

NDW-2000

NDS-3000

NDW-3000

NDS-5000

NDW-5000

Measuring range (Nm)

50

100

200

500

1000

2000

3000

5000

Clearance between grips(mm)

260

260

260

500

500

500

500

500

Torque resolution

1/500000

Relative error of torque

±1%/±0.5%

Torque effective test range(F·S)

2%~100%F·S

Torque minimum reading

0.01Nm

Torsion speed

0.05-720°/min, Can be customized

Min reading value of torsional angle

0.01°

Twist angle accuracy

±1% (indicating)

Twist speed

0~25°/sec

Measuring range of twist angle

0°~10000°

Relative error of torsion angle

±1%

Protection function

the tester has overload protection function

Twist appendage

three jaw chuck type, two - way roof tightness
