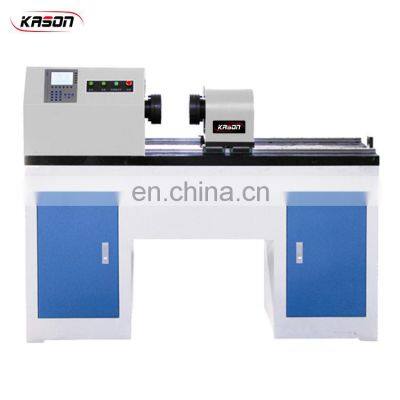

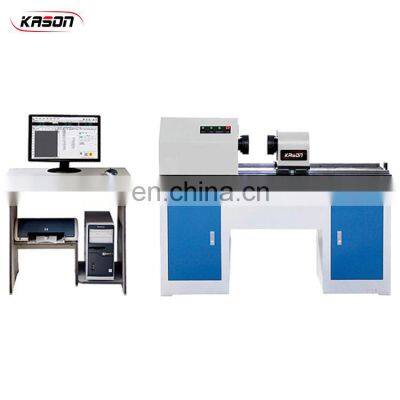

KNDW-1000/2000/3000/5000 Hot Selling Metal Material Torque Testing Machine
Product Description
Application:
This Series Torsion Testing Machine or Twist Testing Machine are used to determine the torsional properties of various
components – from fasteners to biomedical devices.
KS offers a full range of torsion load frames range from 100 to 30,000 Nm, higher capacity and other longer length models
are available upon request.
These uniquely superior torsion testers provide loading and weighing capabilities in both directions of rotation. This feature
makes it possible to conveniently determine not only the ultimate torque load of a specimen, but how that specimen behaves
under conditions of continuous or intermittent torque loading in both directions. Essentially, each torsion tester comprises a
variable speed drive loading system and a digital control and indicating system in a fixed unit.
The weighing head with its strain gage torque sensor is mounted on a moveable unit which can positioned
on the rails to accommodate specimes of varying lengths.
Standard
-GB/T 10128-1998 "Metal room temperature torsion test method"
-GB/T 10128-2007 “Metal room temperature torsion test method"
-ASTM E143: Standard Test Method for Shear Modulus at Room Temperature
-ASTM F543, ISO 6475: Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-
Mechanical requirements and test
Technical parameter
|
Model |
NDS-50 NDW-50 |
NDS-100 NDW-100 |
NDS-200 NDW-200 |
NDS-500 NDW-500 |
NDS-1000 NDW-1000 |
NDS-2000 NDW-2000 |
NDS-3000 NDW-3000 |
NDS-5000 NDW-5000 |
|
Measuring range (Nm) |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
|
Clearance between grips(mm) |
260 |
260 |
260 |
500 |
500 |
500 |
500 |
500 |
|
Torque resolution |
1/500000 |
|||||||
|
Relative error of torque |
±1%/±0.5% |
|||||||
|
Torque effective test range(F·S) |
2%~100%F·S |
|||||||
|
Torque minimum reading |
0.01Nm |
|||||||
|
Torsion speed |
0.05-720°/min, Can be customized |
|||||||
|
Min reading value of torsional angle |
0.01° |
|||||||
|
Twist angle accuracy |
±1% (indicating) |
|||||||
|
Twist speed |
0~25°/sec |
|||||||
|
Measuring range of twist angle |
0°~10000° |
|||||||
|
Relative error of torsion angle |
±1% |
|||||||
|
Protection function |
the tester has overload protection function |
|||||||
|
Twist appendage |
three jaw chuck type, two - way roof tightness |
|||||||
