Laboratory Use High Quality Material Torsion Testing Machine

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

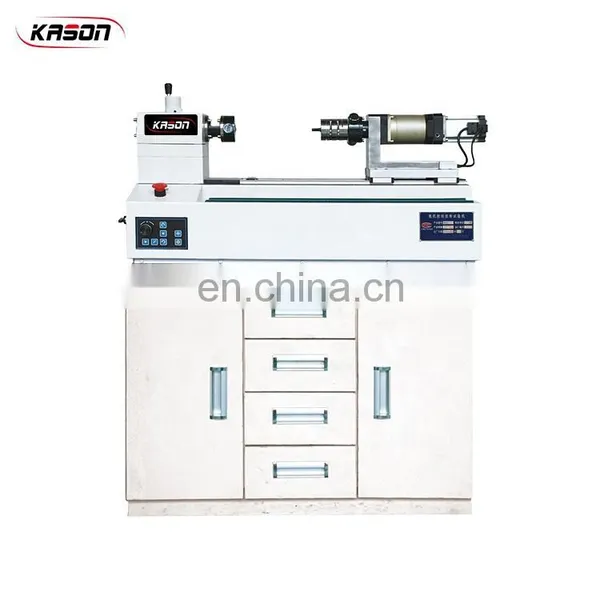

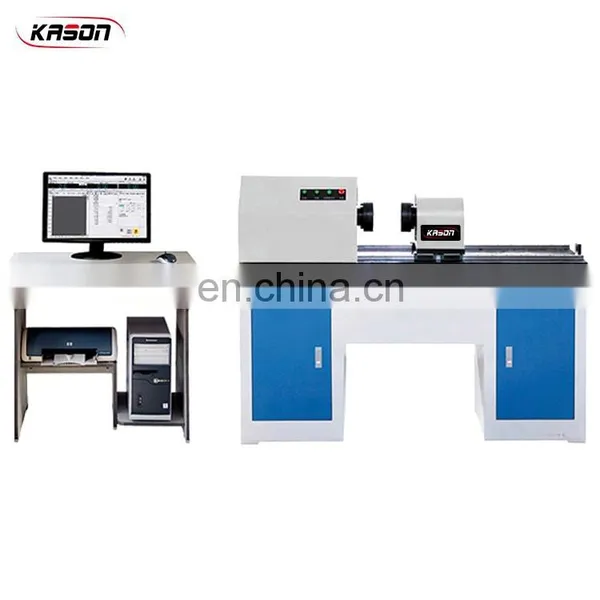

Laboratory Use High Quality Material Torsion Testing Machine

Product Description

Application:

This Series Torsion Testing Machine or Twist Testing Machine are used to determine the torsional properties of various

components – from fasteners to biomedical devices.

KS offers a full range of torsion load frames range from 100 to 30,000 Nm, higher capacity and other longer length models

are available upon request.

These uniquely superior torsion testers provide loading and weighing capabilities in both directions of rotation. This feature

makes it possible to conveniently determine not only the ultimate torque load of a specimen, but how that specimen behaves

under conditions of continuous or intermittent torque loading in both directions. Essentially, each torsion tester comprises a

variable speed drive loading system and a digital control and indicating system in a fixed unit.

The weighing head with its strain gage torque sensor is mounted on a moveable unit which can positioned

on the rails to accommodate specimes of varying lengths.

Standard

-GB/T 10128-1998 "Metal room temperature torsion test method"

-GB/T 10128-2007 “Metal room temperature torsion test method"

-ASTM E143: Standard Test Method for Shear Modulus at Room Temperature

-ASTM F543, ISO 6475: Implants for surgery-Metal bone screws with asymmetrical thread and spherical under-surface-

Mechanical requirements and test

Technical parameter

Model	NDS-50 NDW-50	NDS-100 NDW-100	NDS-200 NDW-200	NDS-500 NDW-500	NDS-1000 NDW-1000	NDS-2000 NDW-2000	NDS-3000 NDW-3000	NDS-5000 NDW-5000
Measuring range (Nm)	50	100	200	500	1000	2000	3000	5000
Clearance between grips(mm)	260	260	260	500	500	500	500	500
Torque resolution	1/500000
Relative error of torque	±1%/±0.5%
Torque effective test range(F·S)	2%~100%F·S
Torque minimum reading	0.01Nm
Torsion speed	0.05-720°/min, Can be customized
Min reading value of torsional angle	0.01°
Twist angle accuracy	±1% (indicating)
Twist speed	0~25°/sec
Measuring range of twist angle	0°~10000°
Relative error of torsion angle	±1%
Protection function	the tester has overload protection function
Twist appendage	three jaw chuck type, two - way roof tightness
