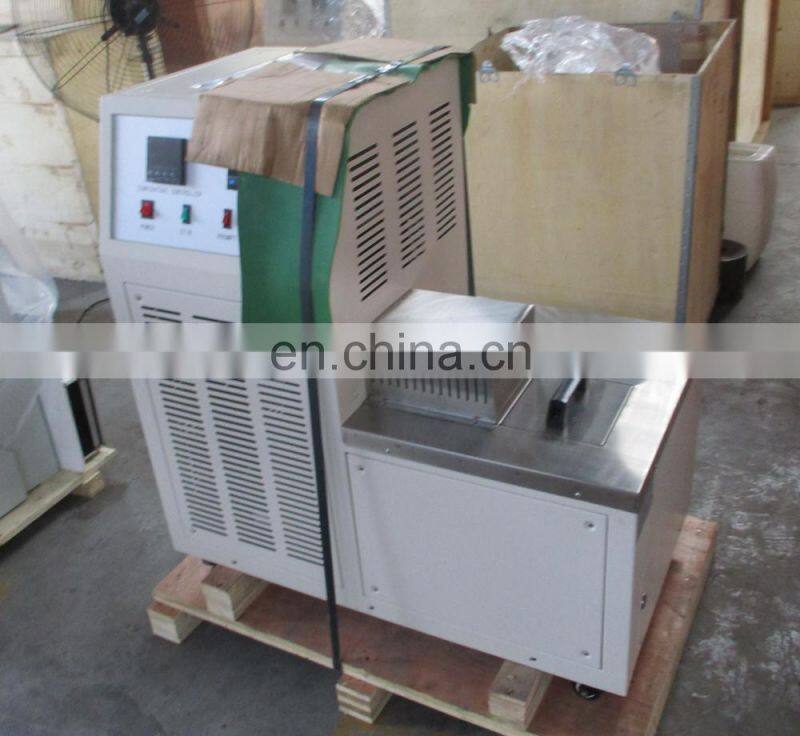

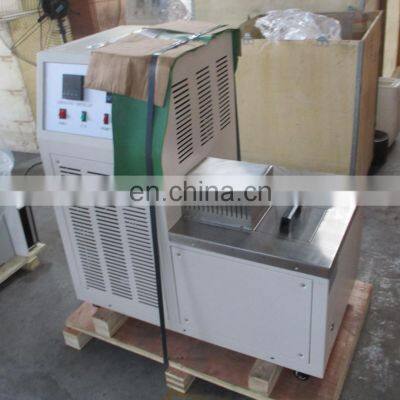

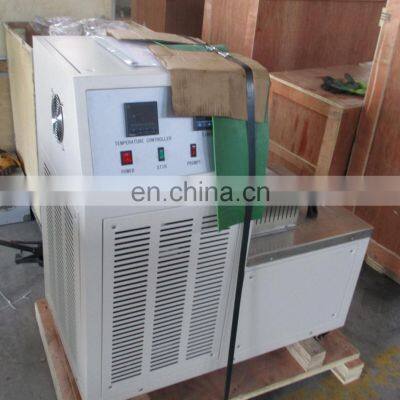

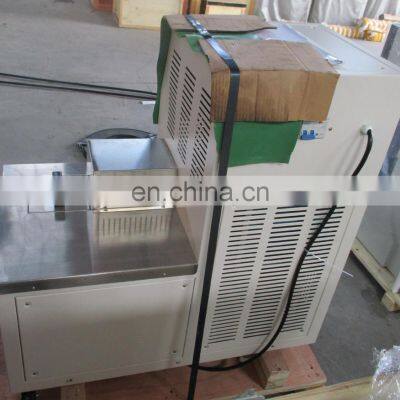

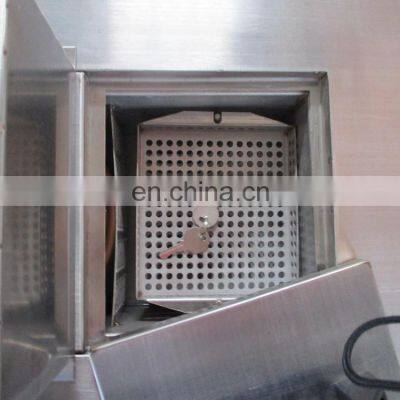

DWC-100 Charpy Impact Test Low Temperature Cooling Bath
1.Application:
The machine is designed according to Charpy Notch Impact Test Method for Metal Material, and adopts
compressor cooling technology.
It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling
to impact specimen with the reliable performance.
Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping
temperature to impact specimen.
2.Standards:
ASTM, E23-02a, En10045, ISO83, GB/T229-2009.
3.Main Specifications:
Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 |
Temperature Range | + 30°C ~ - 40°C | + 30°C ~ - 60°C | + 30°C ~ - 80°C | + 30°C ~ - 100°C |
Temperature Control Accuracy | <±0.5°C | |||
Digital Display Thermometer | Resolution 0.1°C | |||
Effective Work Space Of Cooling Trough | 120×120×80mm | |||
Sample Quantity In The Cooling Trough | 60 PCS (10×10×55mm) | |||
Digital Display Timer | 1 s~99 min, Resolution 1s | |||
Cooling Medium | Ethanol Or Other Unfrozen Liquid | |||
4.The Packing Way Of Our Export Machines:
5.The Realistic Pictures Of Our Factory:
6.Our Cooperative Partners:
