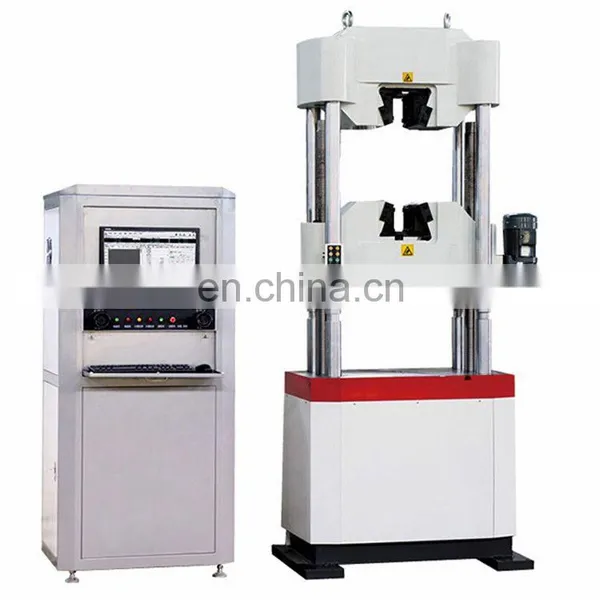

WAW-1500H 1500KN 150 Ton
Computerized Electro-hydraulic Servo Universal Tensile Testing Machine
1.Application:
The machine adopts hydraulic loading, Computer Control, easy and convenient to operate.
It is mainly used to execute the tension, compression, bending, shearing, flexural etc. test for metal materials.
Attached with simple accessories and devices,it can be used to test wood,concrete,cement,rubber,and so on.
It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness
against extreme big loading force.
2.Standards:
ISO6892, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN Standards.
3.Main Specifications:
Model |
WAW-1500H |
Structure |
6 Column (Four Columns Two Ball Screws) |
Control Way |
Constant Stress Uniform Deformation Constant Displacement, Three Closed Loop Control And Program Control |
Max. Load |
1500 KN (150 TONS) |
Load Accuracy |
≤± 1% |
Load Range |
2%~100%FS (30KN~1500KN) |
Load Resolution |
1/300000 |
Deformation Measurement Range |
2%~100%FS |
Deformation Accuracy |
≤± 1% |
Displacement Resolution |
0.01mm |
Displacement Error |
≤±0.5% |
Max. Piston Stroke |
250mm |
Crossbeam Lifting Speed |
200mm/min |
Max. Tension Test Space |
850mm (Can Be Customized) |
Max. Compression Test Space |
650mm (Can Be Customized) |
Clamping Method |
Hydraulic Automatic Clamping |
Round Specimen Clamping Range |
Φ13-Φ26mm, Φ26-Φ40mm, Φ40-Φ60mm |
Flat Specimen Clamping Range |
0-20mm (Optional: 20-40mm) |
Flat Specimen Clamping Width |
125mm |
Flat Specimen Clamping Length |
100mm |
Compression Plate Size |
Φ 160mm |
Bending Roller Distance |
450mm |
Width Of Bending Rollers |
120mm |
Power Supply |
3-phase,AC380V, 50Hz (Can Be Customized) |
4.The Packing Way Of Our Export Machines:

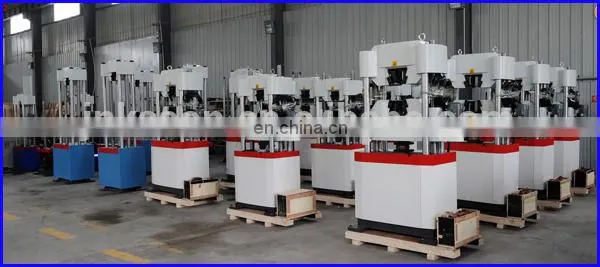

5.The Realistic Pictures Of Our Factory:
6.Our Process Of Foreign Trade:
7.Our company can also produce the customized testing machines as clients' requirements.
You can contact me as the below information.
