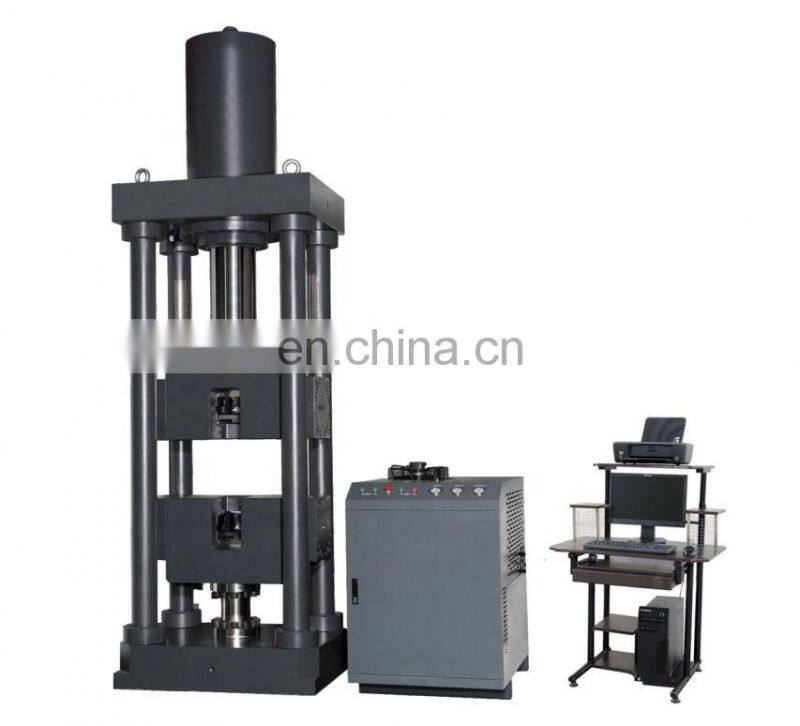

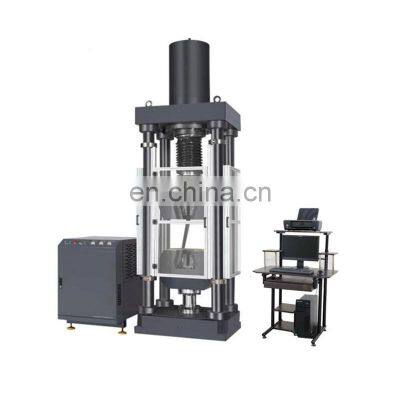

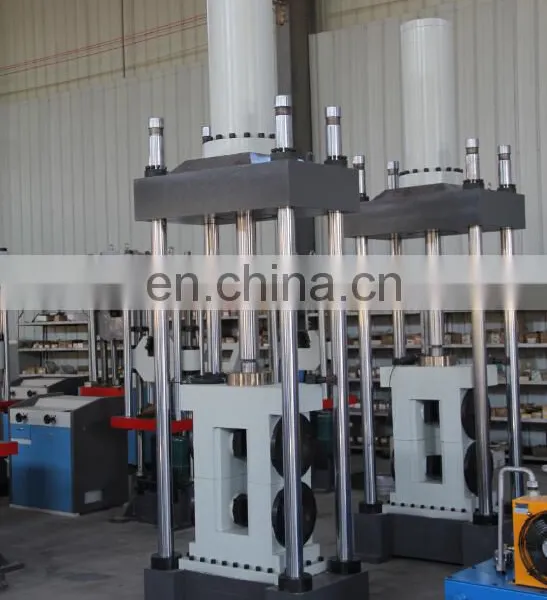

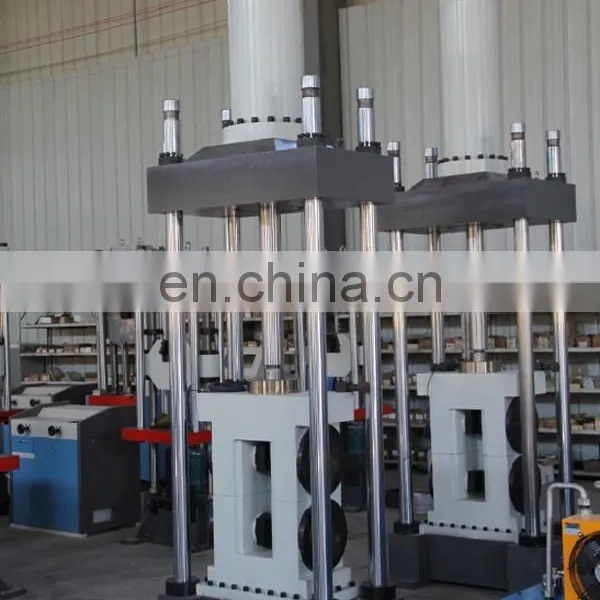

WAW-300L Electro-hydraulic Single Space Servo Tensile Strength Universal Testing Machine
Product Description
Application

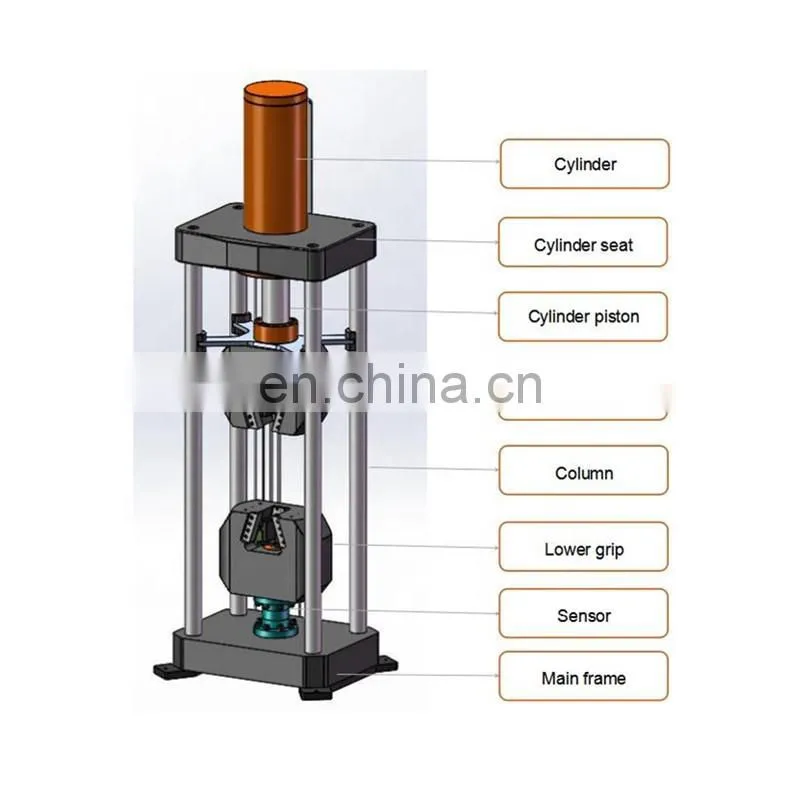

WAW-L Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length' specimens, and specimens with large elongation.
ASTM E4. ISO7500-1. EN10002-2. BS1610. DIN51221Strain measurement meets or exceeds the following standard: ASTM E83. ISO 9513. BS3846 EN10002-4. ASTM E83. ISO 9513. BS3846, EN10002-4.
Standards
ASTM E4. ISO7500-1. EN10002-2. BS1610. DIN51221Strain measurement meets or exceeds the following standard: ASTM E83. ISO 9513. BS3846 EN10002-4. ASTM E83. ISO 9513. BS3846, EN10002-4.
Specification
Model |
WAL-300D |
WAL-600D |
WAL-1000D |
WAL-2000D |
WAL-3000D |
||||
Max. Load capacity (kN) |
300 |
600 |
1000 |
2000 |
3000 |
||||
Accuracy of testing load (%) |
±0.5 |
||||||||
Accuracy of deformation (%) |
±0.5 |
||||||||
Test Range |
1%~100% |
||||||||
Deformation measurement |
1%~100% |
||||||||
Load resolution |
1/500000FS |
||||||||
Test Force Loading Rate |
0.02%~2%FS |
||||||||
Clamping method |
Hydraulic Automatic Clamp With Pushing Clamp |
||||||||
Power |
AC380V±10%, 50Hz/6OHz (can be customized) |
||||||||
