Shenzhen supplier Chotest internal thread measurement for trapezoidal thread
- 1000 per Month
- T/T Credit Card
-
Laboratory laser coordinate measuring machine for precision machine tool calibration
-
Chotest SJ5200 universal testing machine for all thread gauges
-
High accuracy internal thread measuring instruments for pitch diameter measurement
-
High precision 0.15um lab testing machine with optical grating
-
High precision surface roughness measuring instrument
-
CNC mode supported measuring instrument civil engineering
Product Description

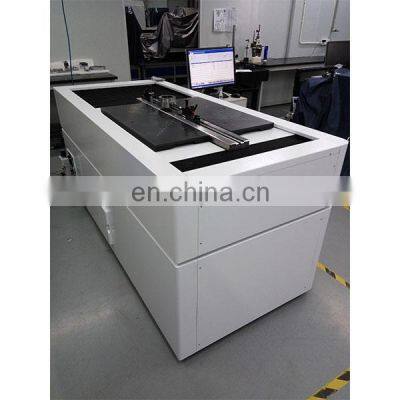

Shenzhen supplier Chotest internal thread measurement for trapezoidal thread
1. Full-automatic measurement for comprehensive parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, etc.

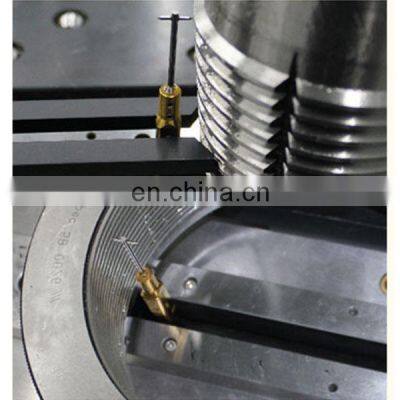

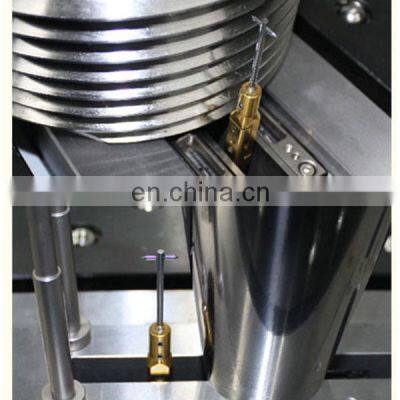

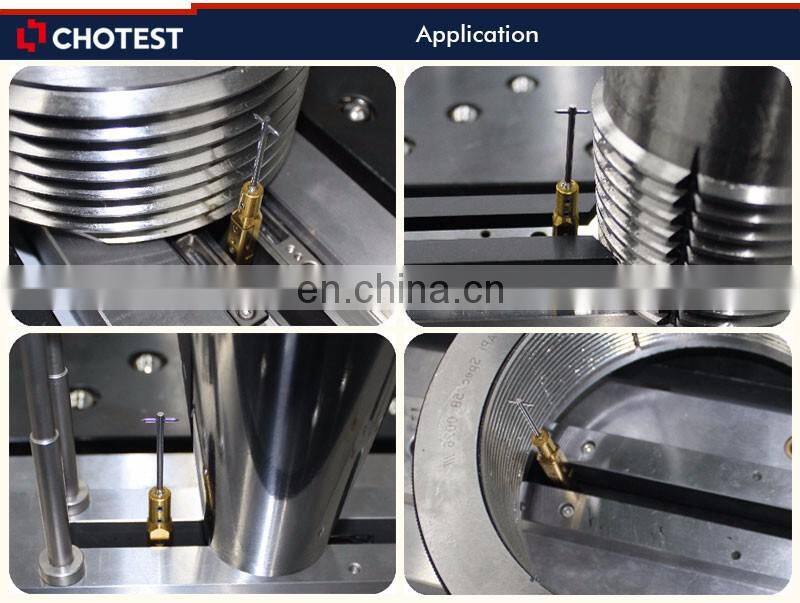

2. Can measure trapezoidal thread, buttress thread, sawtooth thread and other large-slope thread, as well as ordinary thread.
3. Can measure comprehensive parameters of single thread and multiple thread
4. Measure various thread gauges according to GB, ISO, BS, ANSI, DIN, JIS standards. With comprehensive and professional thread standards in database, it meets requirements of most customers.
5. Automatically generate test results according to relevant regulations and standards.
6. After one time measurement, the software can records various parameters of thread and display data of any position, in addition it generates the thread curve, relevant parameters and analysis chart automatically.
7. Measuring probe and workholder are identified automatically, which avoids collision of measuring probe caused by operating errors.
Item No. | SJ5500-200 | SJ5500-300 | SJ5500-400 | SJ5500-500 | SJ5500-600 |
Outside measuring range | (1.0-250)mm | (1.0-350)mm | (1.0-450)mm | (1.0-550)mm | (1.0-620)mm |
Inside measuring range | (2.5-250)mm | (2.5-350)mm | (2.5-450)mm | (2.5-550)mm | (2.5-620)mm |
Max measuring length | 250mm | ||||
Min thread pitch | 0.1mm | ||||
Weight | 2000kg | ||||
Dimension | 200×90×91cm | ||||
Measuring uncertainty: | |||||
Cylindrical or Taper ring gauge(Mimor diameter >2.5mm, half of thread angle ≥27°) | |||||
Minor diameter(μm) | 3.0 + L/200 | ||||
Pitch diameter(μm) | 3.0 + L/200 | ||||
Thread pitch(μm) | 0.8 + L/200 | ||||
Cylindrical or Taper plug gauge (Major diameter >1.0mm, half of thread angle ≥27°) | |||||
Major diameter(μm) | 2.9 + L/200 | ||||
Pitch diameter(μm) | 2.9 + L/200 | ||||
Thread pitch(μm) | 0.8 + L/200 | ||||
Plain ring or plug gauge(μm) | 2.0 + L/200 | ||||
Other measurement(μm) | 2.0 + L/200 | ||||
Contour measurement | |||||
Outside measuring range | (0-250)mm | (0-350)mm | (0-450)mm | (0-550)mm | (0-620)mm |
Inside measuring range | (2.5-250)mm | (2.5-350)mm | (2.5-450)mm | (2.5-550)mm | (2.5-620)mm |
Resolution of X-axis and Y-axis | 0.01μm | ||||
Accuracy of X-axis | ±(1.5+L/100)μm | ||||
Accuracy of Z-axis | ±(1.5+L/100)μm | ||||
Max gradient | 75°(T-shaped measuring probe) | ||||
Measuring force | (40-150)mN | ||||
Measuring speed | (0.01-2)mm/s |

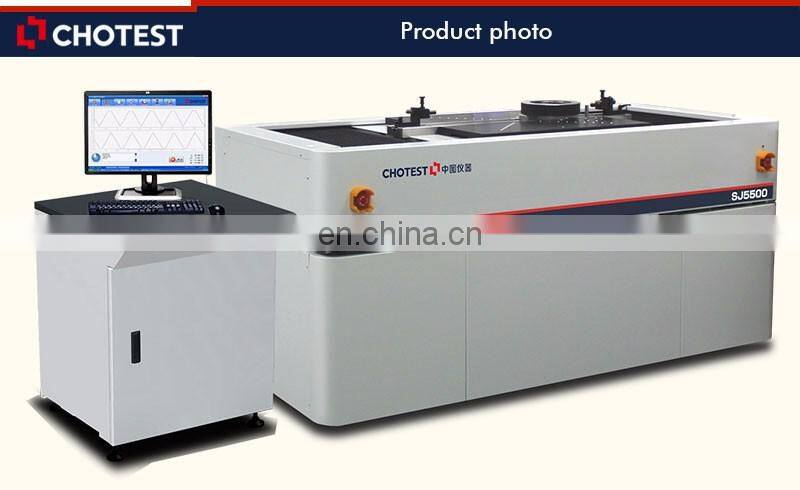

SJ5500 achieves full-automated and precision measurement of comprehensive thread parameters by using Heidenhain precision linear encoder system, precision air bearing drive system, imported servo motor control system, high performance industrial computer control system and large capacity memory technology. After driving the measuring probe to contact with workpiece by precision air bearing system, the software records the horizontal and vertical coordinates in measuring process by applying Heidenhain precision linear encoder system, then, on the basis of synthesizing the two-dimensional measuring values , the software calculates and obtains a variety of thread parameters according to relevant definitions.
SJ5500 is a full-automated measuring machine. The operator only needs to install the thread, select matching standard and input relevant sizes & measuring range & other parameters in software, then the system measures automatically after click the "start" button. The software displays real-time tooth profile curve of thread and calculate the major diameter, pitch diameter, minor diameter, thread pitch, thread angle, other thread parameters automatically. Finally the system qualifies a variety of thread parameters according to built-in thread standards, and test result is generated automatically. The whole process is completed in 2 min.
1. Full-automated measurement
Without human intervention, the machine implements measurement and evaluation of all thread parameters in 4 min, finally displays all measuring parameters. According to built-in thread standards, the system generates the test report automatically. That significantly simplifies the operator's work as well as improves the measuring efficiency, quality and accuracy.
2. Unilateral or bilateral measurement of contour
The machine measures and inspects contour, two-dimensional dimension, two-dimensional displacement of the workpiece, and surface contour curve is described directly. On the basis of measured contour data, the software calculates and obtains dimensions, form & location tolerance and other parameters rapidly. The test result is reliable and operation is simple & easy. With both thread measurement and contour measurement SJ5500 is high cost-performance.
3. High accuracy, high stability and high repeatability
4. SmartTouch intelligent measuring technology (Patent No.1)
By using real-time control device and intelligent sensing device for measuring force, the problem of abrasion of measuring pin is solved, particularly large-slope thread can be direct measured. The measuring force is adjustable from 0.1~10gf by real-time control device which can adjust measuring force accurately. Resolution of intelligent sensing device is up to 0.1gf, which can help to protect measuring pin very well.
5. Simple, humanized design

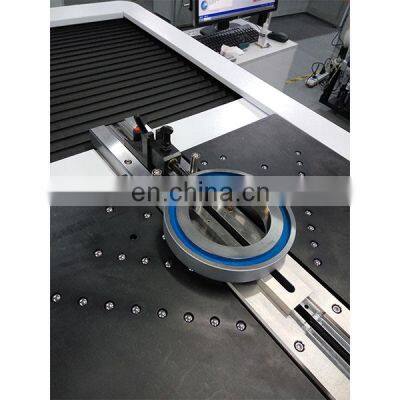

With quick workholders for thread and user-friendly software UI, without complex adjustment process and manual recording, the operator can be trained to use it within a few minutes. Operation of the machine is extremely simple.
6. 3D navigation function(Patent No.2)
3D navigation graphics of measuring probe, workholder and workpiece is built by applying 3D graphics technology, which realizes multi-angle display in real-time, consequently, probability of collision of measuring probe is minimized. The operating convenience, accuracy, safety and reliability are improved greatly.
7. Convenient and accurate replacement of measuring pin(Patent No.3)
In the innovative structure for installation of measuring probe, the probe holder is fixed vertically(the probe holder aligns cross section of thread). This structure eliminates errors caused by repeated installation, so the repeatability is excellent.
8. Precision vibration isolation system
Avoid external vibration interference by using imported precision vibration isolation system, which lays the foundation for precision measurement.
9. Accurate & sensitive measuring force system
Automatic control by computer in both directions. Measuring force range: 0.01 ~ 0.07N, that is far less than 0.14N of the similar machines. The micro measuring force protects measuring pin from abrasion, so life of measuring probe is infinite, in addition workpieces are protected as well. The micro measuring force greatly helps to achieve measurements for large-slope threads as well as precision measurements for the ordinary threads.
Standard configuration
1. SJ5500 host machine
2. Workholders
3. Jacking fixture
3. Measuring pins group
4. Standard thread gauges
5. Standard plain ring gauges
6. Standard plain plug gauges
7. Built-in regulations and standards
8. Testing software
9. Computer
10. HP color laser printer
11. Aluminum alloy box for accessories
12. User manual
13. Product certification and warranty card
Optional configuration
1. Software module for trapezoidal thread measurement
3. Measuring pins for trapezoidal thread measurement
4. Software module for profile measurement
5. Measuring tips with spherical face
6. Other workholders
7. Water-free, oil-free, silent air supply system
8. Electronic moisture-proof case
CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and internal thread measurement.
The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products.
At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress.
CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world.
Contact Us: chk(at) Skype: crane_ck
1. Are you factory?
Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.
2. How many years experience do you have?
We have 16 years experience on measurement instruments and calibration instruments since 2002.
3. What size of your factory?
We have 5000 square meters of factory and 2,000 square meters of modern office
4. Can you accept OEM and ODM?
No, we only sell the products under Chotest brand.
5. Can I become your distributor of internal thread measurement?
Yes, please contact our sales engineer.
6. What is the lead time?
Lead time is 30-60days in usual.
7. What is your payment term?
30% deposit first, balance payment before delivery.
We accept T/T, L/C.
8. How to install the machine?
We dispatch our engineers to install and debug the machine in site of the customer.
9. What is your warranty term?
We provide 1 year warranty after acceptance inspection by customer.
Free repair or replacement in 1 year warranty in case of any problem.
Response in 12 hours for emails or calls from customers in working days.
...
