Chotest SJ5200 universal testing machine for all thread gauges

Chotest SJ5200 universal testing machine for all thread gauges

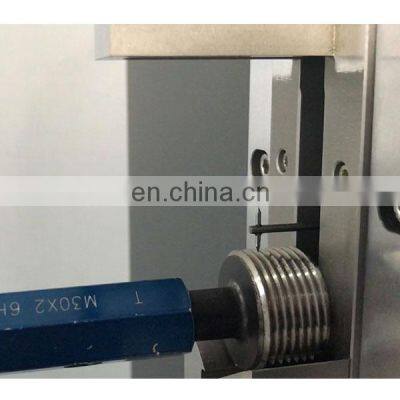

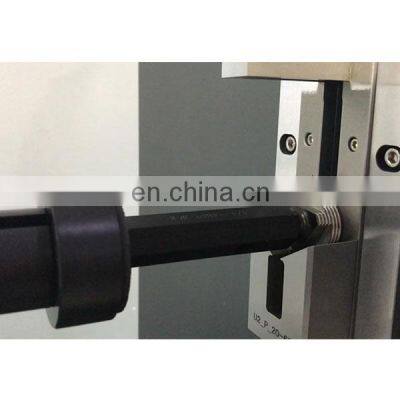

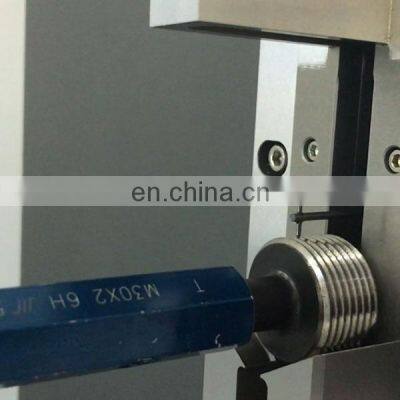

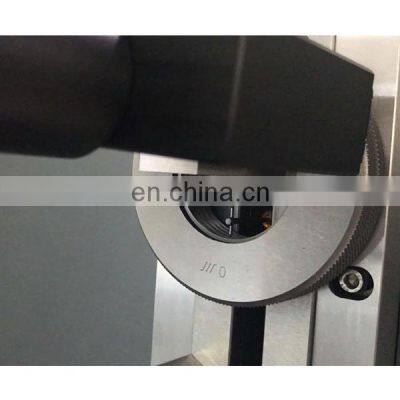

1. Full-automatic measurement for comprehensive parameters of cylindrical thread plug gauges, cylindrical thread ring gauges, taper thread plug gauges, taper thread ring gauges, plain ring gauges, plain plug gauges and other gauges with internal & external dimensions, including virtual pitch diameter , single pitch diameter, basic pitch diameter, major diameter, minor diameter, thread pitch, thread angle, half of thread angle, flank straightness, lead angle, taper, etc.

2. Can measure trapezoidal thread, buttress thread, sawtooth thread and other large-slope thread, as well as ordinary thread.

3. Can measure comprehensive parameters of single thread and multiple thread

4. Measure various thread gauges according to GB, ISO, BS, ANSI, DIN, JIS standards. With comprehensive and professional thread standards in database, it meets requirements of most customers.

5. Automatically generate test results according to relevant regulations and standards.

6. After one time measurement, the software can records various parameters of thread and display data of any position, in addition it generates the thread curve, relevant parameters and analysis chart automatically.

7. Measuring probe and workholder are identified automatically, which avoids collision of measuring probe caused by operating errors.

SJ5200 achieves full-automated and precision measurement of comprehensive thread parameters by using Heidenhain precision linear encoder system, precision air bearing drive system, imported servo motor control system, high performance industrial computer control system and large capacity memory technology. After driving the measuring probe to contact with workpiece by precision air bearing system, the software records the horizontal and vertical coordinates in measuring process by applying Heidenhain precision linear encoder system, then, on the basis of synthesizing the two-dimensional measuring values , the software calculates and obtains a variety of thread parameters according to relevant definitions.

SJ5200 is a full-automated measuring machine. The operator only needs to install the thread, select matching standard and input relevant sizes & measuring range & other parameters in software, then the system measures automatically after click the "start" button. The software displays real-time tooth profile curve of thread and calculate the major diameter, pitch diameter, minor diameter, thread pitch, thread angle, other thread parameters automatically. Finally the system qualifies a variety of thread parameters according to built-in thread standards, and test result is generated automatically. The whole process is completed in 2 min.

1. Full-automated measurement: Without human intervention, the machine implements measurement and evaluation of all thread parameters in 2 min, finally displays the measuring values. According to built-in thread standards, the system generates the test report automatically. That significantly simplifies the operator's work, as well as improves the measuring efficiency, quality and accuracy.

2. Resolution is 0.01um; High accuracy, high stability and high repeatability.

3.Simple, humanized design: With quick workholders for thread and user-friendly software UI, without complex adjustment process and manual recording, the operator can be trained to use it within a few minutes. Operation of the machine is extremely simple.

4. 3D navigation function(Patent No.1): Greatly improve the operating convenience, accuracy, safety and reliability:

5. Convenient and accurate replacement of measuring pin(Patent No.2): In the innovative structure for installation of measuring pin, the pin holder is fixed vertically(the pin holder aligns cross section of thread). This structure eliminates errors caused by repeated installation, which results in excellent repeatability.

6.Combined workholder(Patent No.3): Decrease the frequently-used workholders from 4 to 2 by applying Two-in-one and three-in-one ones without gasket and heel block.  These workholders can be used for measuring both thread ring and plug gauges. By reducing frequency of installation&uninstallation&calibration of different workholders, the work is more simple and efficient, in addition risk of operating errors is down much.

7. Ingenious balancing mechanism(Patent No.4): The problem of Z-axis swing while X-axis movement is solved completely by using ingenious balancing mechanism, which ensures the stability of the coordinate system in measurements, in addition measuring accuracy is improved .

8. Accurate & sensitive measuring force system

Automatic control by computer in both directions. Measuring force range: 0.01 ~ 0.07N, that is far less than 0.14N of the similar machines. The micro measuring force protects measuring pin from abrasion so life of measuring probe is infinite, in addition workpieces are protected as well. The micro measuring force greatly helps to achieve measurements for large-slope threads as well as precision measurements for the ordinary threads.

Standard configuration

1. SJ5200 host machine

2. Workholders

3. Measuring probes group

4. Standard thread gauges

5. Standard plain ring gauges

6. Standard plain plug gauges

7. Built-in regulations and standards

8. Testing software

9. Desktop computer

10. HP color laser printer

11. Aluminum ally case for accessories

12. User manual

13. Product certification and warranty card

Optional configuration

1. Software module for trapezoidal thread

2. Software module for buttress thread

3. Measuring probes for trapezoidal thread

4. Measuring tips with spherical face

5. Other workholders

6. Water-free, oil-free, silent pressure supply system

7. Electronic moistureproof case

8. Marble work table

9. Summer or winter laboratory uniform

CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and servo control universal testing machine.

The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products.

At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress.

CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world.

Contact Us:  chk(at)          Skype: crane_ck

1. Are you factory?

Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.

2. How many years experience do you have?

We have 16 years experience on measurement instruments and calibration instruments since 2002.

3. What size of your factory?

We have 5000 square meters of factory and 2,000 square meters of modern office

4. Can you accept OEM and ODM?

No, we only sell the products under Chotest brand.

5. Can I become your distributor of servo control universal testing machine?

Yes, please contact our sales engineer.

6. What is the lead time?

Lead time is 30-60days in usual.

7. What is your payment term?

30% deposit first, balance payment before delivery.

We accept T/T, L/C.

8. How to install the machine?

We dispatch our engineers to install and debug the machine in site of the customer.

9. What is your warranty term?

We provide 1 year warranty after acceptance inspection by customer.

Free repair or replacement in 1 year warranty in case of any problem.

Response in 12 hours for emails or calls from customers in working days.

...
