Laser Interferometer for Machine Calibration and Optimisation

Laser interferometer for machine calibration and optimisation

1.High precision:
Resolution of SJ6000 is up to nanoscale based on laser interference technology, with high precision environmental compensation module, the influence of environmental factors such as temperature, atmospheric pressure, relative humidity and material temperature are eliminated on the measurement results; The design of separating interferoscope from the host avoids heat distortion of interferoscope, which ensures the stability of interference optical path.

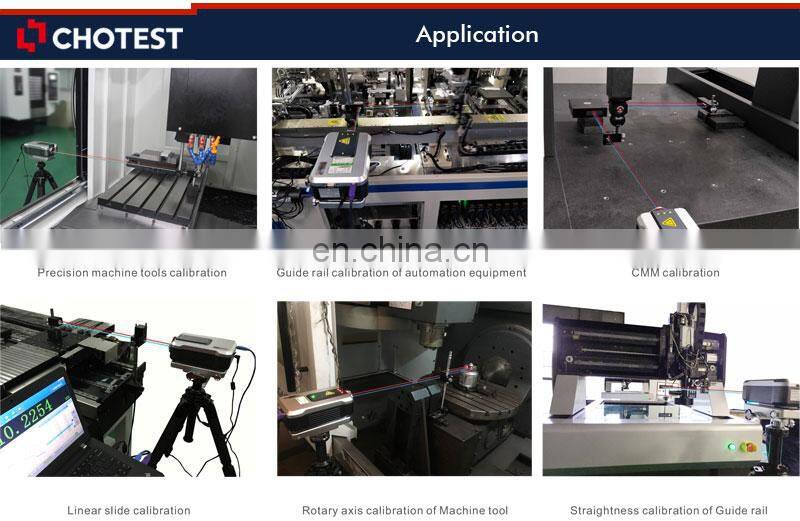

 2.Applications:
(1)High precision measurement of geometric parameters such as linear, angle, straightness, perpendicularity, parallelism and flatness is achievable.
(2)Linear positioning accuracy and repetitive positioning accuracy of precision motion equipment is measurable, such as CNC machine, CMM, etc.
(3)Measure and calibration of machine tool's rotary shaft.
(4)The error compensation table can be automatically generated according to the compensation methods set by users.
(5)Support manual or automatic environmental compensation.

3.Software:
(1)Friendly user interface
(2)Rich application modules
(3)Operation with guide
(4)Simplified record management
(5)Support the customization of enterprise-specific template

4.Standards:
Built-in standards up to 13, including GB, ISO, BS, ANSI, DIN, JIS, etc, which satisfy most needs of users. Data can be analysis and process according to different kinds of machine tool's standards, finally generates the corresponding curve chart and data report.

Laser interferometer uses light wave as the carrier, which can definition the length of meter by its wavelength and recognized as a measuring instrument with high precision & sensitivity, it’s widely used in the field of high-end manufacturing.

SJ6000 can output laser with high precision (0.05 ppm) and long-term stability quickly (about 6 minutes) by Dual-longitudinal thermal frequency stabilization technology, which has powerful anti-interference performance. It has many advantages of measurement such as high accuracy, wide range and high resolution at the highest measuring speed. With different optical lens, high precision measurement of geometric parameters such as linear length, angle, straightness, perpendicularity, parallelism and flatness is achievable.

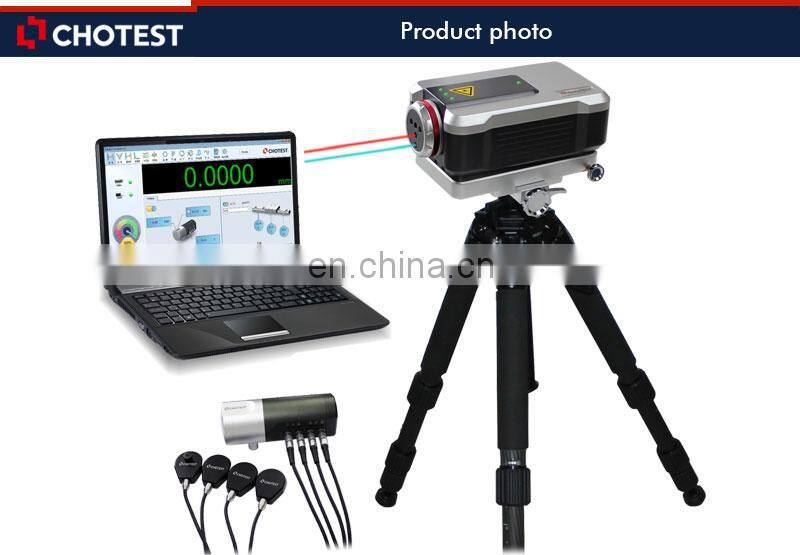

1. SJ6000 host machine                                                                                    1 pc

2. Environmental compensation modules                                                          1 set

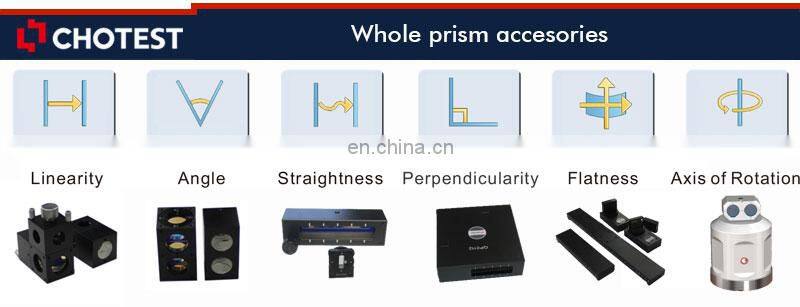

3. Prism modules

    For linear measurement (standard)                                                               1 set

    For micro angle measurement(optional)                                                        1 set

    For straightness measurement (optional)                                                      1 set

    For perpendicularity measurement (optional )                                               1 set

    For flatness measurement (optional)                                                             1 set

    For axis of rotation measurement (optional)                                                  1 set

4. Measuring Software                                                                                       1 pc

5. Laptop computer                                                                                            1 pc

6. Portable case                                                                                                 1 pc

7. Universal tripod                                                                                              1 pc

8. Pan/tilt holder                                                                                                 1 pc

9. Magnetic bases for prism module                                                                  1 set

10. Instruction Manual                                                                                        1 pc

11. Product certification and Warranty card                                                        1 set

12. Free services and repairs                                                                             1 year

CHOTEST is a software company but also a national high-tech enterprise integrating research, development, production and sales. Committed to the design and production of precision measuring instruments and calibration instruments.
Since the company established, we insist on technological innovation as the basis of development. With more than ten years of development, our company has accumulated rich practical experience and established a strong professional technical team in light, machine, electronics and information technology, also owns a number of technology patents and software intellectual property rights. We have unique designing and manufacturing advantages in Micro-Nano motion, 3D Reconstruction of Micro- Nano measurement, 3D Form and Surface Analysis of Micro-Nano measurement, Large- scale 3D Measurement, Precision Sensing Probe, Control & Measurement of Glass-Scale and Guide Rail etc. That is why we have ability to provide our customers with professional precision measurement solution from nano meter to hundred meter.

At present over 200 employees in our company, we got modern office in Nanshan, Shenzhen and precision machining & assembly factory in Baoan, Shenzhen. In addition, we also built a number of professional laboratories with advanced research facilities. All products are manufactured in accordance with ISO9001, 6S standard and always provide customers with top quality products.

The sales network and service outlets of our company has covered more than 30 provinces in China, in the meanwhile our overseas market is also growing fast.

With more than 10 years of professional technology accumulation, we designed and manufactured White Light Interferometer measurement system of, Laser Tracker of GT series, Universal Thread Measuring Machines of SJ5200 series, Universal Length Measuring Machines of SJ5100 series, SJ6000 Laser Interferometer, Profilometers of SJ5700 series, Dial Indicator Testing Machines of SJ2000 series and other high-end measuring equipment. We provide high precision measurement solution from nanometer to hundred meters.

At present our products has been used widely in government Metrology and Quality Inspection agencies, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries.

CHOTEST focuses on technology development & innovation of precision measurement equipment and sophisticated testing equipment with motto of Self-Discipline. Our goal is to provide high-end measuring equipment to manufacturing industry in all over the world

1. Are you factory?

Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.

2. How many years experience do you have?

We have 16 years experience on measurement instruments and calibration instruments since 2002.

3. What size of your factory?

We have 5000 square meters of factory and 2,000 square meters of modern office

4. Can you accept OEM and ODM?

No, we only sell the products under Chotest brand.

5. Can I become your distributor of China supplier Chotest laser measuring system for Straightness measurement?

Yes, please contact our sales engineer.

6. What is the lead time?

Lead time is 30-60days in usual.

7. What is your payment term?

30% deposit first, balance payment before delivery.

We accept T/T, L/C.

8. How to install the machine?

We dispatch our engineers to install and debug the machine in site of the customer.

9. What is your warranty term?

We provide 1 year warranty after acceptance inspection by customer.

Free repair or replacement in 1 year warranty in case of any problem.

Response in 12 hours for emails or calls from customers in working days.

...
