High Accuracy Setting Probe Cnc Test Machine Tool Calibration Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2002
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Setting Probe Cnc Test Machine Tool Calibration TesterNegotiableMOQ: 1 -
Made In China Setting Tester Cnc Calibration Test Machine Tool ProbeNegotiableMOQ: 1
-
Repeatability 1um Machine Tool Probe COMP SeriesNegotiableMOQ: 1
-
High Accuracy Cnc Calibration Tester Factory Use Test Machine Tool Setting ProbeNegotiableMOQ: 1
-
Made In China Cnc Calibration Tester High Accuracy Machine Tool Test ProbeNegotiableMOQ: 1
Product Overview

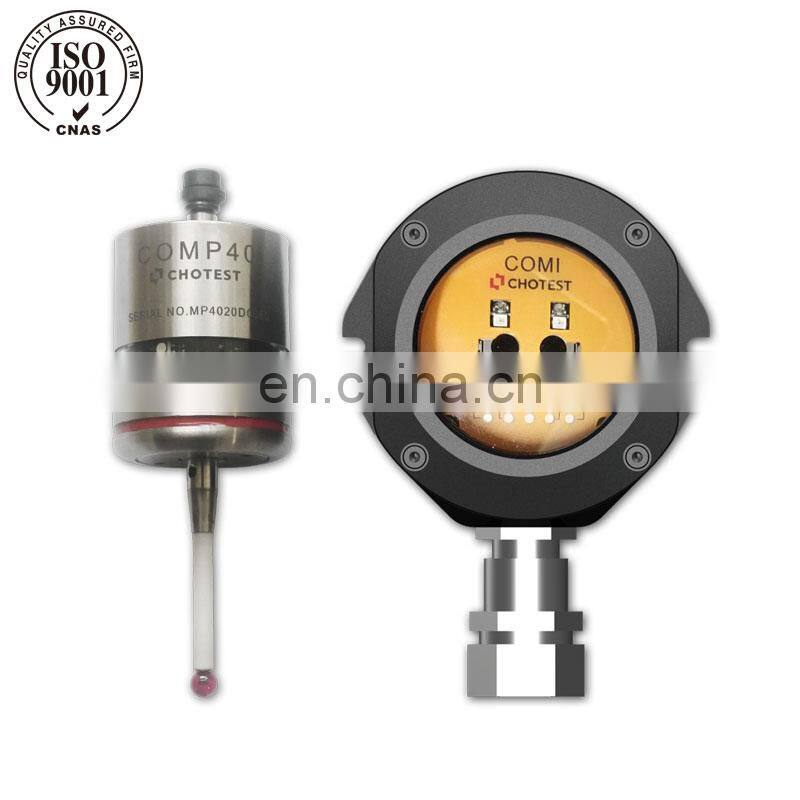

PO40 Machine Tool Probes
Machine tool probe PO series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.
FEATURES AT A GLANCE
Product Functions
1. Before CNC processing, automatically find the coordinate system and datum point of the workpiece.
2. In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.
3. After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.
2. In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.
3. After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.
Products Features
1. High repeatability: One-way repeatability <1μm
2. Long standby time: As long as 6 months
3. Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle in
impact when an operating accident occurs
4. Waterproof design: IP67 for probe and receiver
5. Intelligent LED indicators: Show current working status of the probe
2. Long standby time: As long as 6 months
3. Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle in
impact when an operating accident occurs
4. Waterproof design: IP67 for probe and receiver
5. Intelligent LED indicators: Show current working status of the probe
PRODUCT SPECIFICATIONS
1. Technical parameters of the probe:
1) Battery: Two 1/2AA 3.6V lithium batteries;
2) Storage temperature: (-25~70)℃;
3) Working temperature: (5~55)℃;
1) Battery: Two 1/2AA 3.6V lithium batteries;
2) Storage temperature: (-25~70)℃;
3) Working temperature: (5~55)℃;
|
Model No.
|
COMP40
|
COMP60
|
COLP40
|
|
Size(Probe)
|
Dia.40 mm× L50mm
|
Dia.63 mm× L76mm
|
Dia.40 mm× L52mm
|
|
Weight(Probe Without Holder)
|
260 g
|
880 g
|
280 g
|
|
Transmission Type
|
360° IR
|
360° IR
|
360° IR
|
|
Transmission Distance
|
5m
|
6m
|
5m
|
|
Starting Mode: Code M
|
Code M
|
Code M, Revolve
|
Code M
|
|
Rotational Speed
|
Max 1000rev/min
|
Max 1000rev/min
|
Max 1000rev/min
|
|
Triggering Direction
|
±X/±Y/+Z
|
±X/±Y/+Z
|
±X/±Y/+Z
|
|
Repeatability of
One-way triggering 2δ(1) |
1um
|
2um
|
1um
|
|
Max overrun(2)
|
XY:12.5mm +Z:6mm
|
XY:12.5mm +Z:6mm
|
XY:12.5mm +Z:6mm
|
|
XY Trigger Force(3)
|
0.5 N~0.9N
|
0.5 N~3.5N Adjustable
|
0.3N~1.6N Adjustable
|
|
Z Trigger Force
|
5.8N
|
3.5N~14N Adjustable
|
4N~10N Adjustable
|
*Note
(1): Test with a 50mm straight stylus under speed 480mm/min.
(2): Test with a 50mm straight stylus
(3): Test with a 50mm straight stylus under speed 480mm/min.
(2): Test with a 50mm straight stylus
(3): Test with a 50mm straight stylus under speed 480mm/min.
2. Technical parameters of the receiver:
1) Transmission type: IR, 360°;
2) Working range: Max 8m
3) Weight: 926g
4) Input voltage: 12V~30V
5) Input current: <100mA, receiving <40mA;
6) Cable to machine controller: dedicated 13PIN shielded cable, 8 meters or 15 meters;
7) Storage temperature: (-25~70)℃,working temperature: (5~55)℃;
2) Working range: Max 8m
3) Weight: 926g
4) Input voltage: 12V~30V
5) Input current: <100mA, receiving <40mA;
6) Cable to machine controller: dedicated 13PIN shielded cable, 8 meters or 15 meters;
7) Storage temperature: (-25~70)℃,working temperature: (5~55)℃;
Products Application

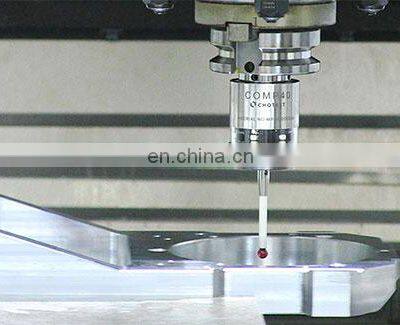

1. Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece.
