Repeatability 1um Machine tool probe COMP Series

Machine tool probe COMP Series

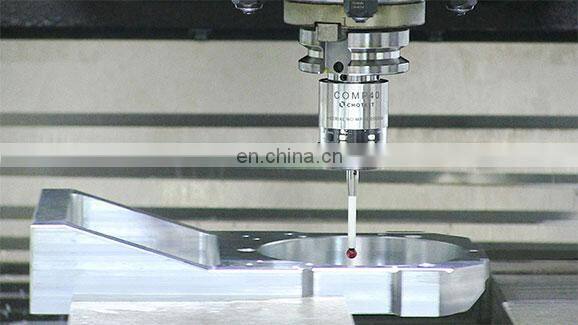

1. Before CNC processing, automatically find the coordinate system and datum point of the workpiece.

2. In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.

3. After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.

1. High repeatability: One-way repeatability <1μm

2. Long standby time: As long as 6 months

3. Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle in impact when an operating accident occurs

4. Waterproof design: IP67 for probe and receiver

5. Intelligent LED indicators: Show current working status of the probe

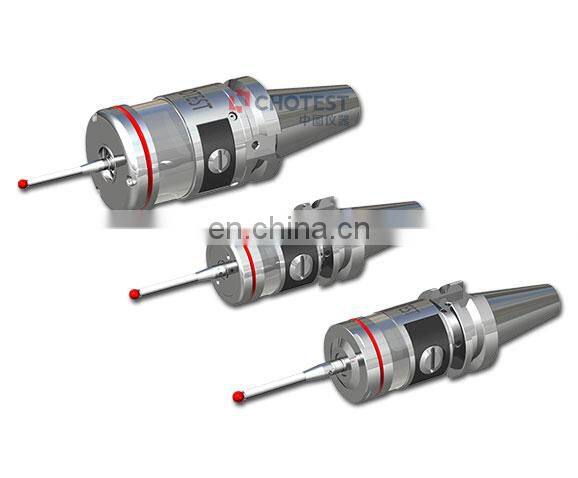

Model No.	COMP40	COMP60	COLP40
Size(Probe)	Dia.40 mm× L50mm	Dia.63 mm× L76mm	Dia.40 mm× L52mm
Weight(Probe Without Holder)	260 g	880 g	280 g
Transmission Type	360° IR	360° IR	360° IR
Transmission Distance	5m	6m	5m
Starting Mode: Code M	Code M	Code M, Revolve	Code M
Rotational Speed	Max 1000rev/min	Max 1000rev/min	Max 1000rev/min
Triggering Direction	±X/±Y/+Z	±X/±Y/+Z	±X/±Y/+Z
Repeatability of  One-way triggering 2δ(1)	1um	2um	1um
Max overrun(2)	XY:12.5mm  +Z:6mm	XY:12.5mm  +Z:6mm	XY:12.5mm  +Z:6mm
XY Trigger Force(3)	0.5 N~0.9N	0.5 N~3.5N Adjustable	0.3N~1.6N Adjustable
Z Trigger Force	5.8N	3.5N~14N Adjustable	4N~10N Adjustable







Machine tool probe COMP series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.



1. Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece.

2. Align workpiece: Inspect whether the workpiece is placed accurately, and whether the workpiece is deformed by force of clamping fixture.

3. Dimension measurement: stage height, length, diameter

4. Position measurement: holes distance, perpendicularity, angle, etc.

5. Curved-surface measurement: blade shape, mold surface, complex shape

6. After-processing inspection: Find the over-tolerance, correct tool compensation

7. Check whether the workpiece is placed





CHOTEST is a software company but also a national high-tech enterprise integrating research, development, production and sales. Committed to the design and production of precision measuring instruments and calibration instruments.

Since the company established, we insist on technological innovation as the basis of development. With more than ten years of development, our company has accumulated rich practical experience and established a strong professional technical team in light, machine, electronics and information technology, also owns a number of technology patents and software intellectual property rights. We have unique designing and manufacturing advantages in Micro-Nano motion, 3D Reconstruction of Micro- Nano measurement, 3D Form and Surface Analysis of Micro-Nano measurement, Large- scale 3D Measurement, Precision Sensing Probe, Control & Measurement of Glass-Scale and Guide Rail etc. That is why we have ability to provide our customers with professional precision measurement solution from nano meter to hundred meter.

At present over 200 employees in our company, we got modern office in Nanshan, Shenzhen and precision machining & assembly factory in Baoan, Shenzhen. In addition, we also built a number of professional laboratories with advanced research facilities. All products are manufactured in accordance with ISO9001, 6S standard and always provide customers with top quality products.

The sales network and service outlets of our company has covered more than 30 provinces in China, in the meanwhile our overseas market is also growing fast.

With more than 10 years of professional technology accumulation, we designed and manufactured White Light Interferometer measurement system of, Laser Tracker of GT series, Universal Thread Measuring Machines of SJ5200 series, Universal Length Measuring Machines of SJ5100 series, SJ6000 Laser Interferometer, Profilometers of SJ5700 series, Dial Indicator Testing Machines of SJ2000 series and other high-end measuring equipment. We provide high precision measurement solution from nanometer to hundred meters.

At present our products has been used widely in government Metrology and Quality Inspection agencies, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and other industries.

CHOTEST focuses on technology development & innovation of precision measurement equipment and sophisticated testing equipment with motto of Self-Discipline. Our goal is to provide high-end measuring equipment to manufacturing industry in all over the world
